6-16 Additional Redundant Server Procedures
Setting Up Station on
SERVERB
1. On SERVERB, click Start
⇒
Programs
⇒
ProcessLogix
Server
⇒
Station.
2. Click Cancel at the Unable to connect prompt, if applicable.
3. Click Station
⇒
Connect to call up the Station Connect dialog
box.
4. Click New Connection.

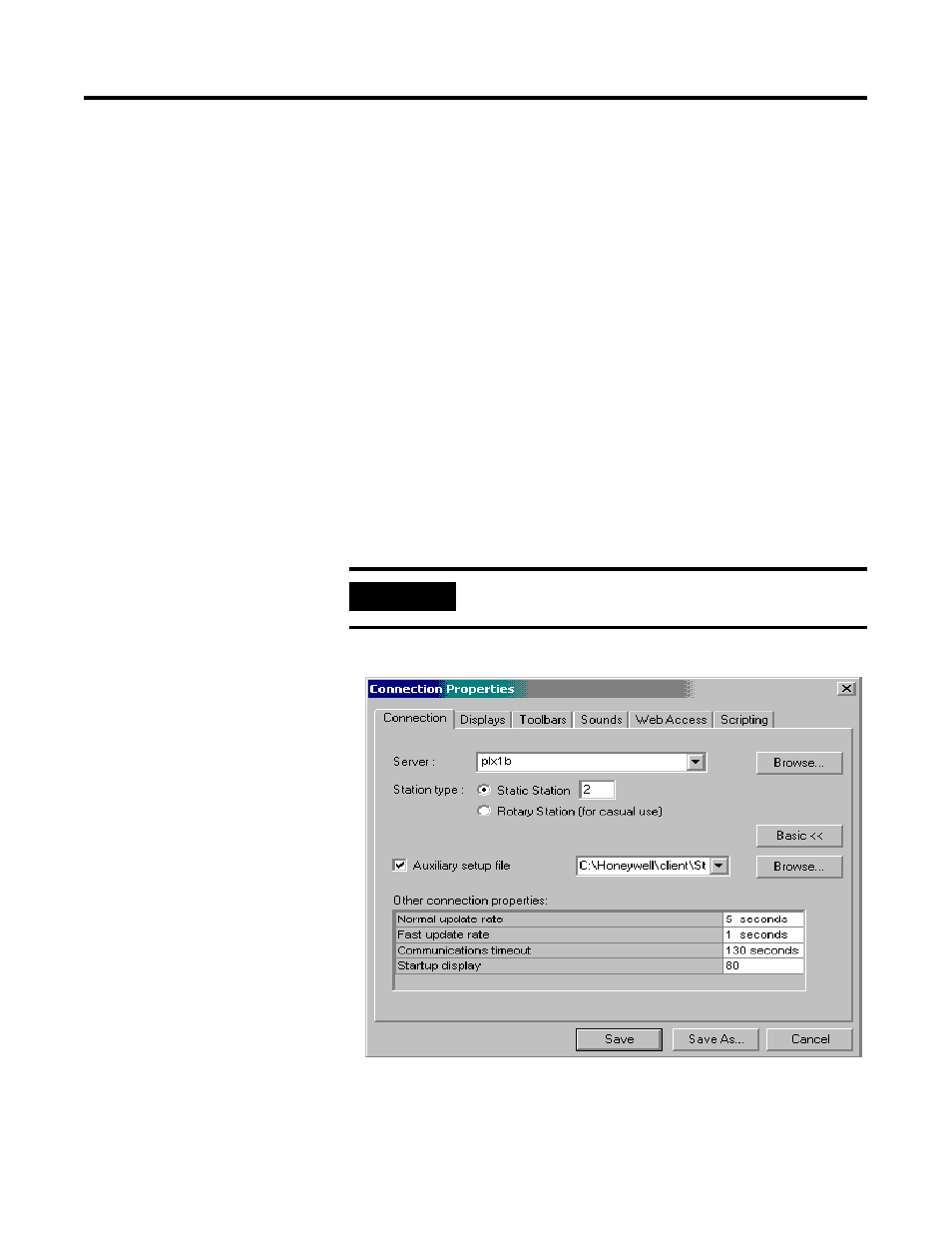

5. On the Connection tab, make these entries to have the Station
point to the SERVERB (PLX1B) node:
a. In the Server field, key in or Browse to the Secondary Server
name, SERVERB.
b. Select the Station type as Static Station.
c. Key in >2< as the Static Station Number and click Advanced.
d. Check the Auxiliary setup file checkbox.
e. Browse and navigate to:
C:\Honeywell\Client\Station\default.stn and click Open.
f. On the Displays tab, check the Search subdirectories for
shapes checkbox.
IMPORTANT
You must indicate the full path to the .stn file.
