Additional Redundant Server Procedures 6-11

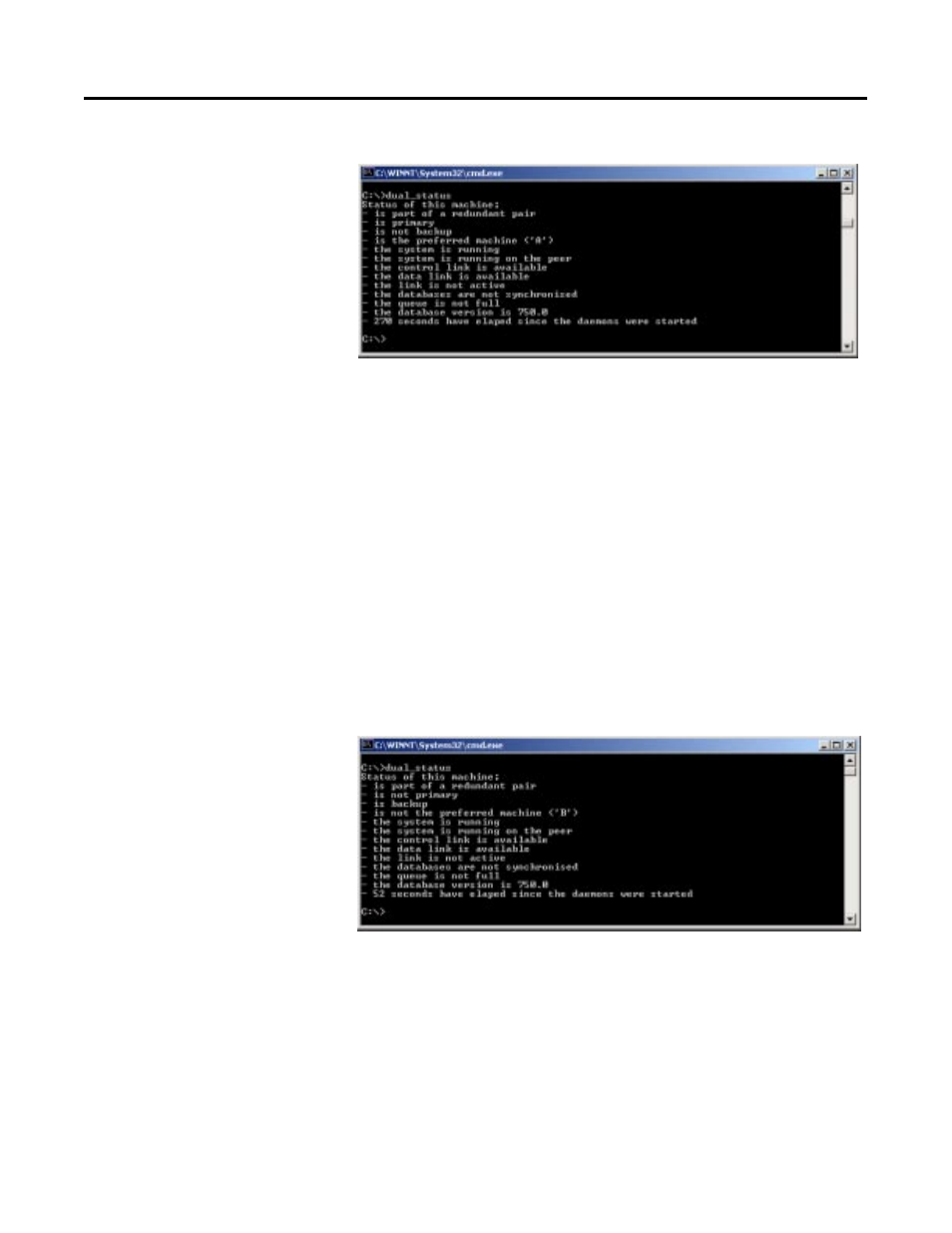

4. The unsynchronized SERVERA data should be similar to this:

5. Verify that the data link is available.

6. On SERVERB, click

Start

Run.

7. Key in this command in the Open entry field:

>cmd<

and click OK to open the DOS window.

8. At the DOS prompt, key in this command:

>dual_status<

and press .

9. The unsynchronized SERVERB data should be similar to this:

10. Verify that the data link is available.

Configuring Stations in
Quick Builder (on
SERVERA)

1. Click Start

Programs

ProcessLogix Server

Quick Builder.

2. Click the New Project option and click OK.
