Page 231: Processlogix/profibus topology descriptions

Publication 1757-IN040B-EN-P - March 2002
New Functions and Features 10-3
Functional Exclusions
The SST-PFBCLX does not currently support the acyclic services
associated with the PROFIBUS DP-V1 extension.
Topology

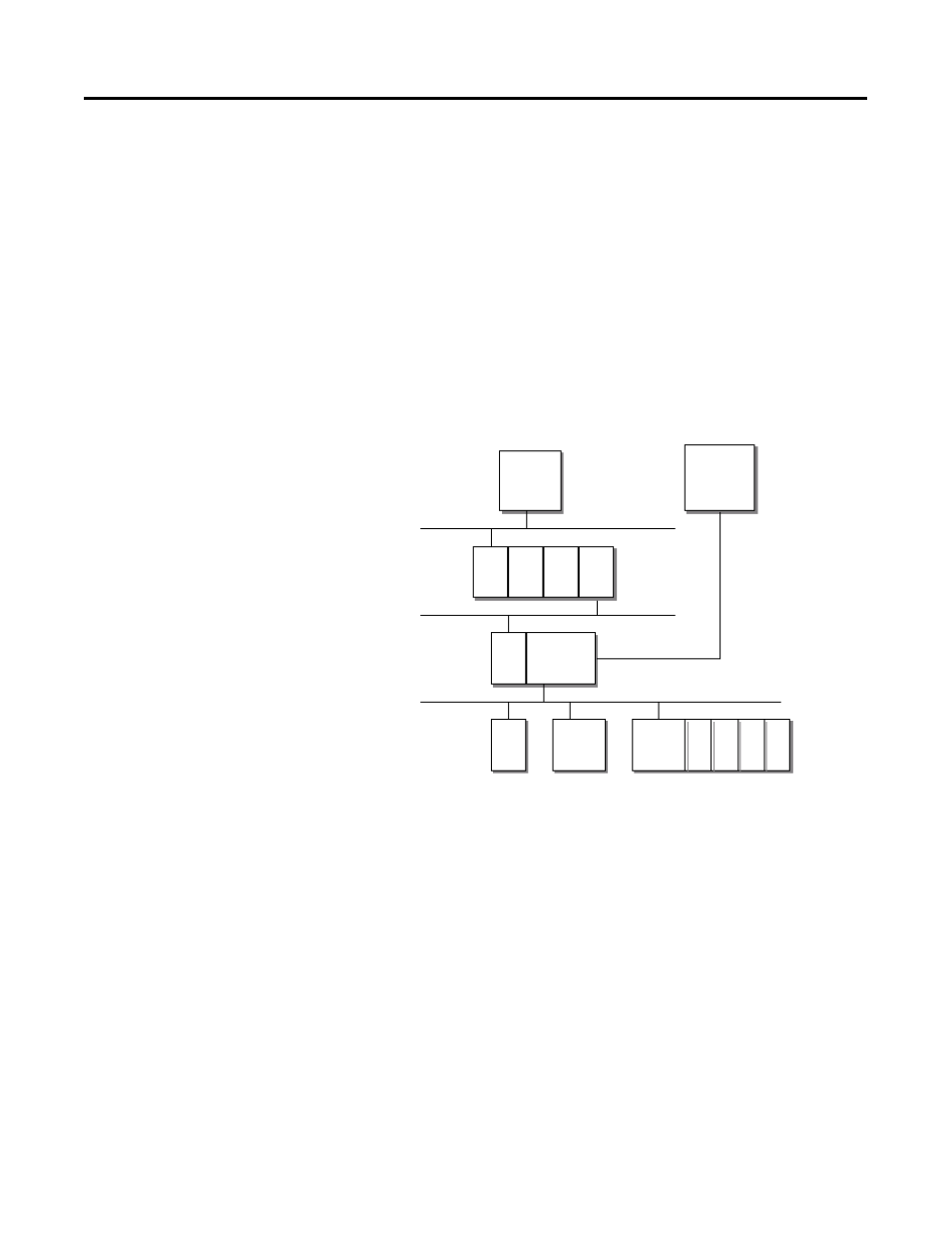

The diagram below depicts an example of the intended
ProcessLogix/PROFIBUS interface in a typical hardware topology:
Figure 10.1 ProcessLogix/PROFIBUS Topology
ProcessLogix/PROFIBUS Topology Descriptions
•
The SST-PFBCLX is the DPM1 (DP Master Class 1 device).
•
Although ControlNet is depicted for the supervisory network,
Ethernet supervisory networks are also possible.
•
A redundant controller configuration is depicted. Non-redundant
configurations are also permitted, thus allowing the SST-PFBCLX
to reside in the controller chassis.
•
PROFIBUS DP supports both stand-alone and modular I/O
devices. Although only one SST-PFBCLX is depicted, one
1757-PLX52 controller can host multiple PBIM’s.
Supervisory
Network
I/O Network
Profibus DP
Network
ProcessLogix
Server
PC with SST
PROFIBUS
Configuration
Tool
CNB
PLX52
SRM
CNB
CNB
SST-PFBCLX
(DPM1)
Drive
Encoder
Gateway
AI
AO
DI
DO
Profibus
Devices
RS-232
Serial Link
