Publication 1757-IN040B-EN-P - March 2002

11-12 Performance and Capacity Specifications

Communications Capacity
and Performance

System Communications Load Philosophy and Guidelines

The ProcessLogix System is designed with certain patterns of
communications in mind. Being aware of the intended traffic flows
will help the application engineers to insure that the application
realizes the highest usage from the system’s architectural capabilities.

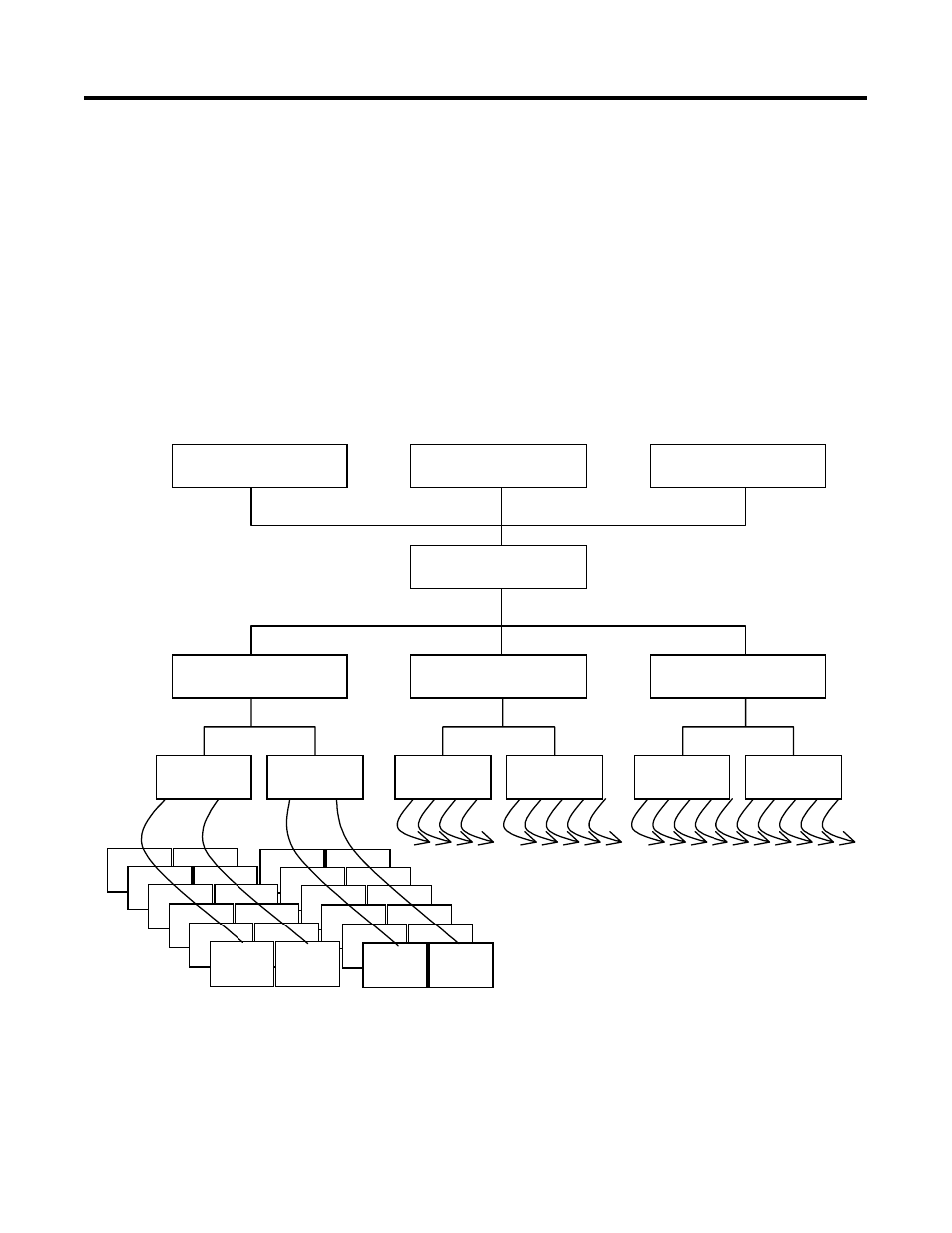

The basic concept is shown in the following hierarchical diagram. It
shows four levels of networking: Plant Information, Supervisory, I/O,
and Device. It also includes four levels of networking nodes:
Application stations (like operator stations and high-level application
nodes), controller-level stations, I/O level chassis, and directly
networked devices.

Device

Node

Device

Node

Device

Node

Device

Node

Device

Nodes

Device

Node

Device

Node

Device

Node

Device

Node

Device

Nodes

Device

Node

Device

Node

Device

Node

Device

Node

Device

Nodes

Oper/App Node

Oper/App Node

Oper/App Node

Server Node

Controller Node

Controller Node

Controller Node

IONode

IONode

IONode

IONode

Device Networks (e,g, Fieldbus H1)

Supervisory Network (ControlNet)

Plant Information Network (Ethernet)

IO Networks (ControlNet)

Device

Node

Device

Node

Device

Node

Device

Node

Device

Nodes

IONode

IONode
