Publication 1757-IN040B-EN-P - March 2002

Additional Redundant Server Procedures 6-15

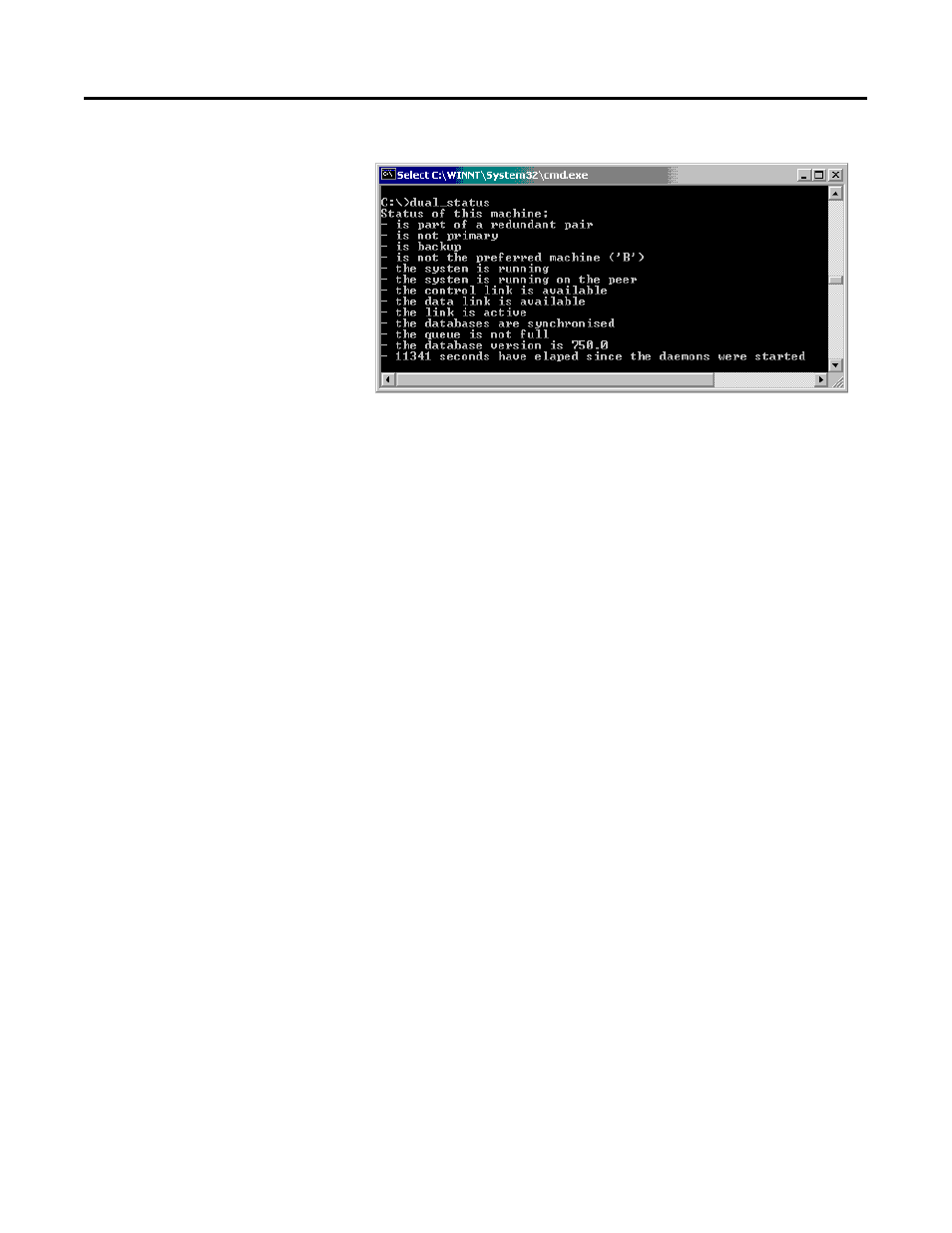

9. The unsynchronized SERVERB data should be similar to this:

10. Verify that the link is active and the databases are synchronized.

Setting up the Redundant ERDB

Complete the following procedure on SERVERB only:

1. Click Start

Programs

ProcessLogix Engineering Tools

DB

Admin.

2. In the Login dialog box, make these entries:

a. Key in >mngr< as the default User Name.

b. Key in >mngr1< as the default Password.

c. Key in SERVERB in the Server Name field.

3. Expand the trees to DBAdmin

ProcessLogix Node

Admin

Tasks.

4. Click Disable Replication.

a. Click OK to verify that the replication is disabled.

c. To set up the database on SERVERA, click Recover

Secondary Database.

d. Click Yes to recover Secondary Database.

e. At the Successfully Recovered Secondary Database window,

click OK.

5. Click Enable Replication.

a. Click Yes to proceed.

b. At the Successfully Enabled Database Replication, click OK.

6. Click Console

Exit.
