2.9.4 EEPMOV Instruction

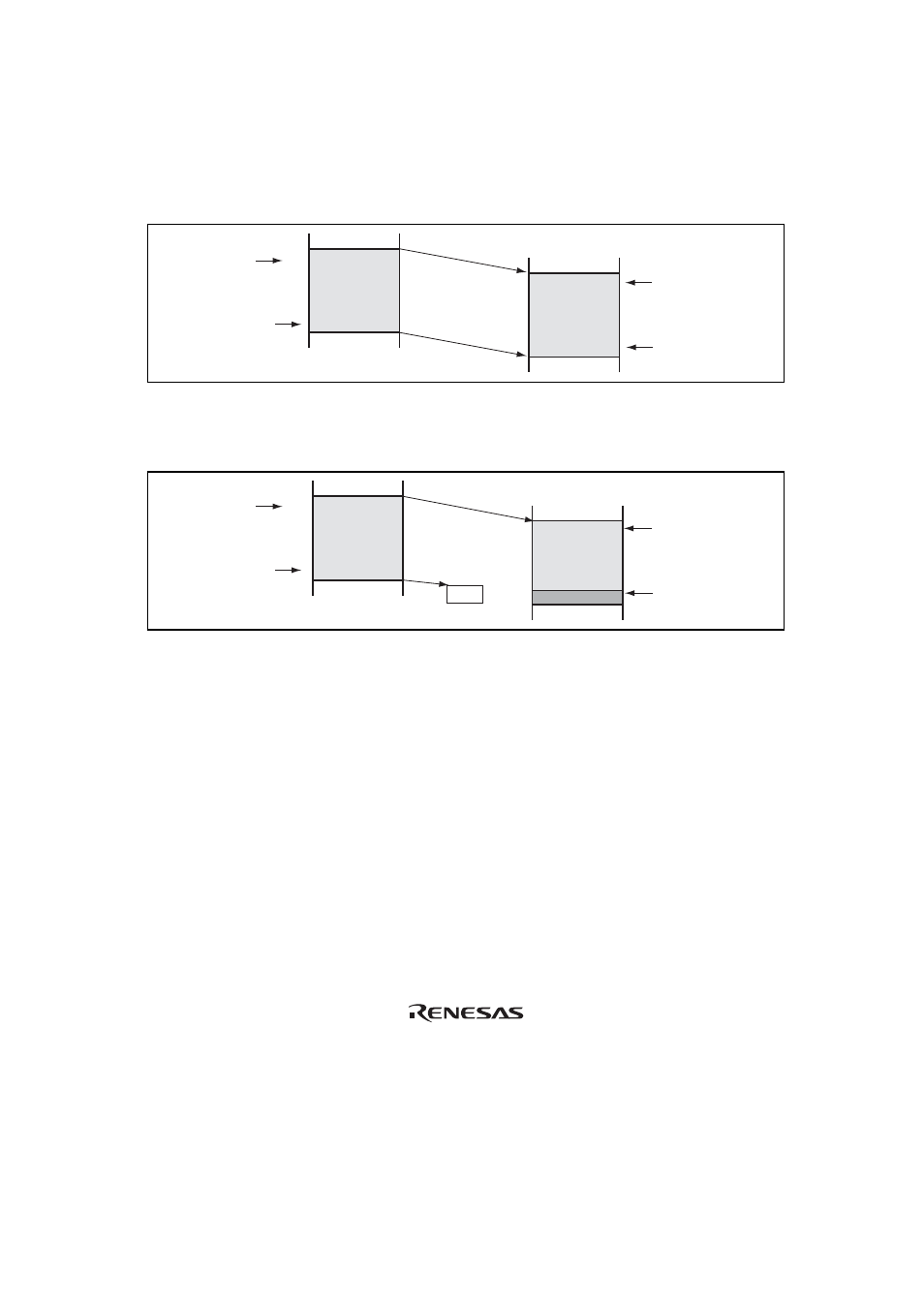

1. EEPMOV is a block-transfer instruction and transfers the byte size of data indicated by R4L,
which starts from the address indicated by R5, to the address indicated by R6.
R6
R6 + R4L
R5
R5 + R4L
2. Set R4L and R6 so that the end address of the destination address (value of R6
+ R4L) does
not exceed H'FFFF (the value of R6 must not change from H'FFFF to H'0000 during
execution).
Invalid
H'FFFF
R6
R6 + R4L
R5
R5 + R4L
