Rev. 1.00, 05/04, page 362 of 544
14.4.6 KBF Setting Timing and KCLK Control

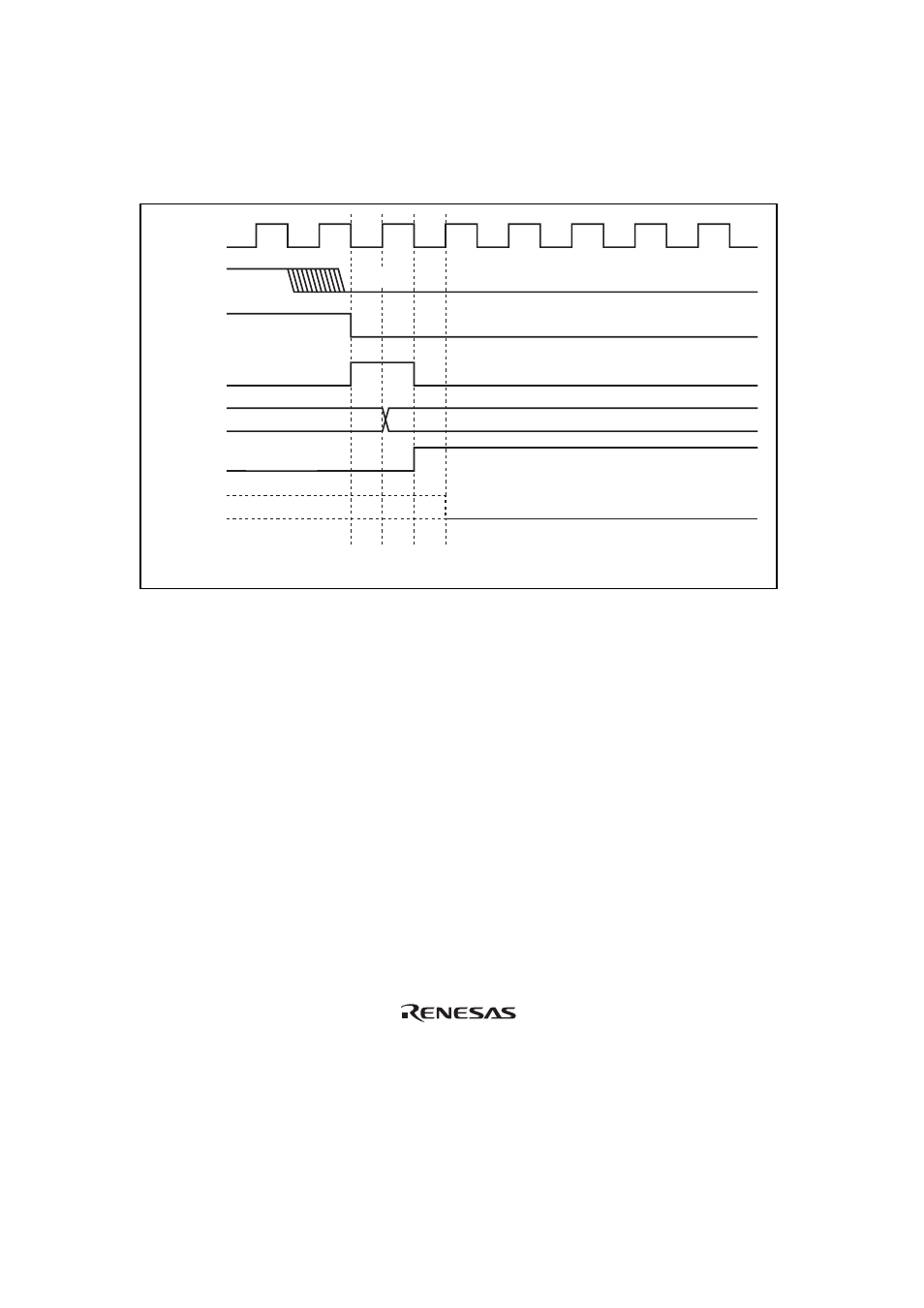

Figure 14.11 shows the KBF setting timing and the KCLK pin states.
KCLK
(pin)
φ
*
Internal
KCLK
Falling edge
signal
RXCR3 to
RXCR0
KCLK
(output)
KBF
11th fall
Automatic I/O inhibit
B'0000 B'1010
Note: * The
φ
clock shown here is scaled by 1/N in medium-speed mode when the operating
mode is active mode.
Figure 14.11 KBF Setting and KCLK Automatic I/O Inhibit Generation Timing
