Rev. 1.00, 05/04, page 445 of 544
18.7.2 User Program Mode
On-board programming/erasing of an individual flash memory block can also be performed in user
program mode by branching to a user program/erase control program. The user must set branching
conditions and provide on-board means of supplying programming data. The flash memory must
contain the user program/erase control program or a program which provides the user
program/erase control program from external memory. Because the flash memory itself cannot be
read during programming/erasing, transfer the user program/erase control program to on-chip
RAM, as like in boot mode. Figure 18.8 shows a sample procedure for programming/erasing in
user program mode. Prepare a user program/erase control program in accordance with the
description in section 18.8, Flash Memory Programming/Erasing.
Yes
No
Program/erase?
Reset-start
Branch to flash memory
application program
Transfer user program/
erase control program to RAM
Branch to flash memory
application program
Branch to user program/
erase control program in RAM
Execute user program/erase control
program (flash memory rewrite)

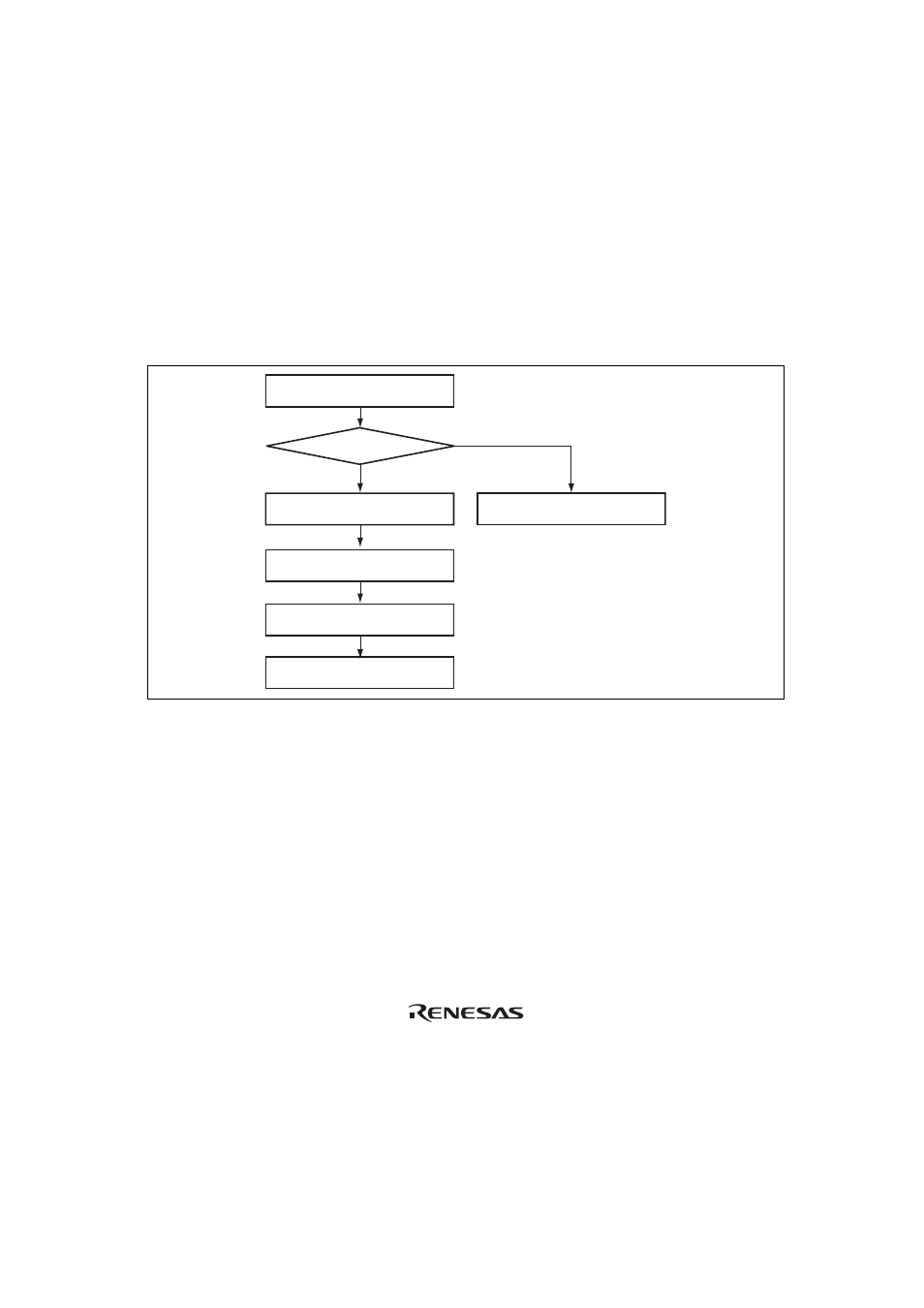

Figure 18.8 Programming/Erasing Flowchart Example in User Program Mode
