Rev. 1.00, 05/04, page 178 of 544
9.7.2 Conflict between FRC Write and Increment
If an FRC increment pulse is generated during the state after an FRC write cycle, the write takes
priority and FRC is not incremented. Figure 9.18 shows the timing for this type of conflict.
φ
Address FRC address
Internal write
signal
FRC input
clock
Write data
FRC N M
T
1
T
2
Write cycle of FRC

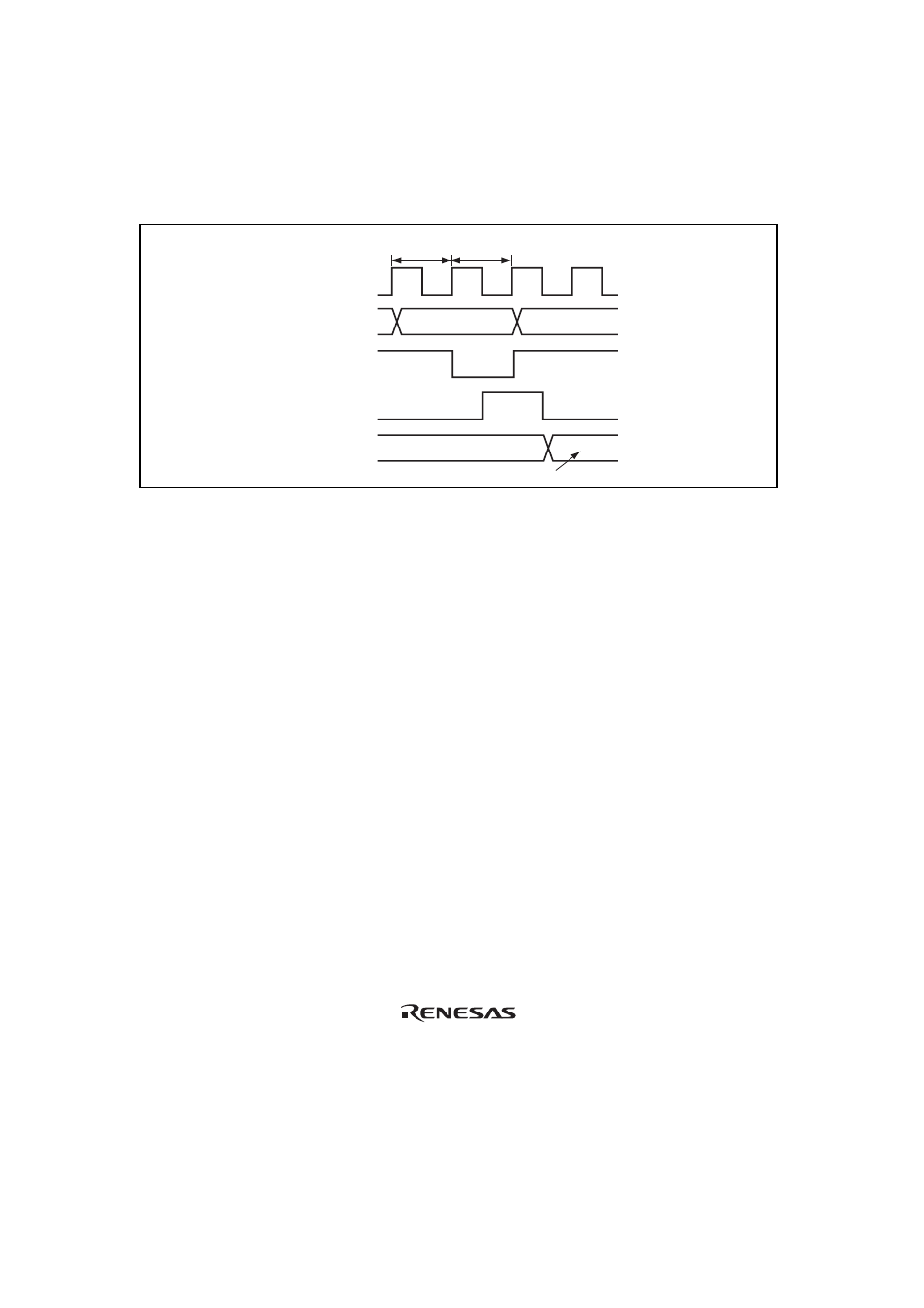

Figure 9.18 FRC Write-Increment Conflict
9.7.3 Conflict between OCR Write and Compare-Match
If a compare-match occurs during the state after an OCRA or OCRB write cycle, the write takes
priority and the compare-match signal is disabled. Figure 9.19 shows the timing for this type of
conflict.
If automatic addition of OCRAR and OCRAF to OCRA is selected, and a compare-match occurs
in the cycle following the OCRA, OCRAR, and OCRAF write cycle, the OCRA, OCRAR and
OCRAF write takes priority and the compare-match signal is disabled. Consequently, the result of
the automatic addition is not written to OCRA. Figure 9.20 shows the timing for this type of
conflict.
