Rev. 1.00, 05/04, page 263 of 544

Error processing

Yes

No

Clear ORER, PER, and

FER flags in SSR to 0

No

Yes

No

Yes

Framing error processing

Overrun error processing

ORER = 1

FER = 1

Break?

Clear RE bit in SCR to 0

[5]

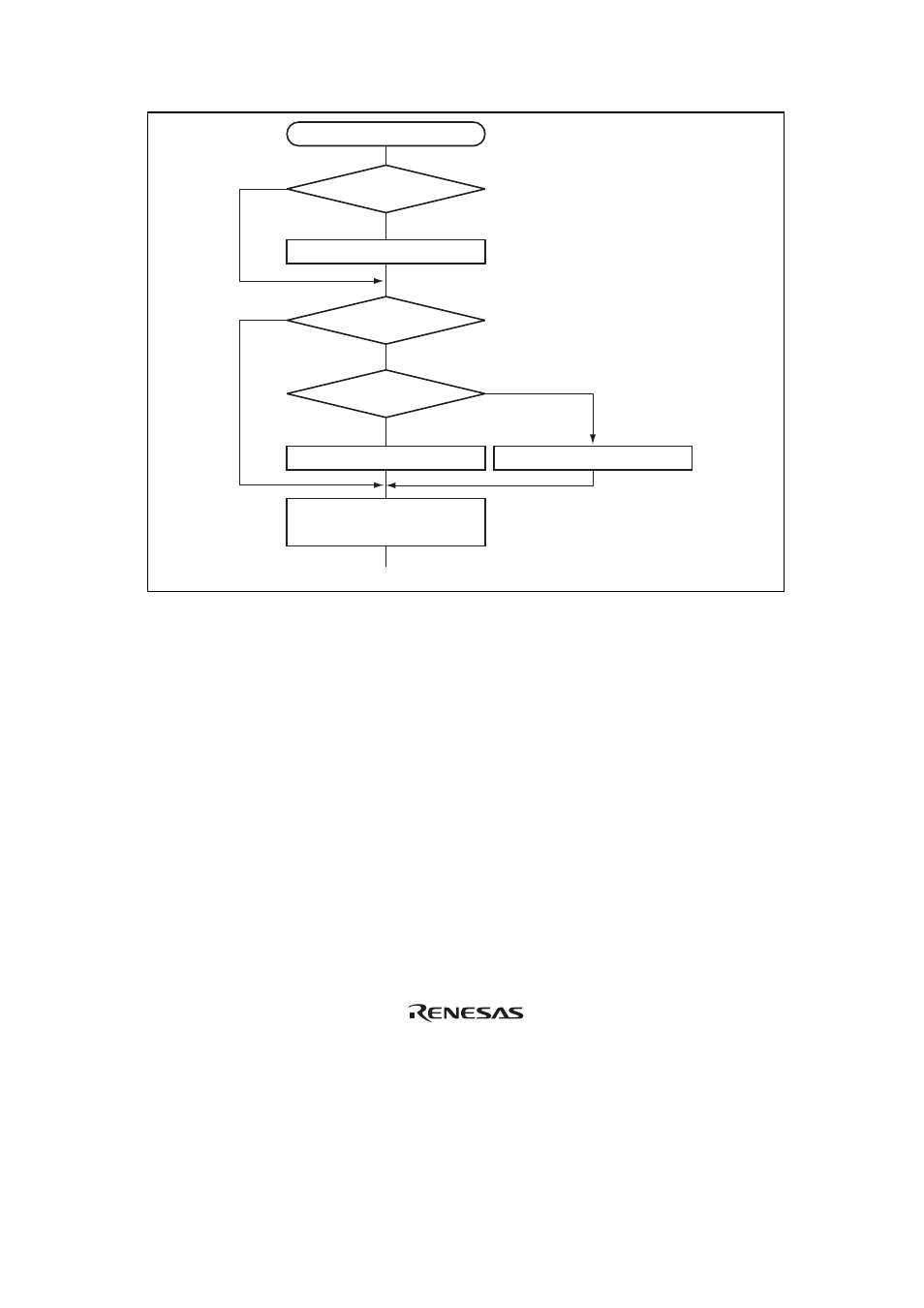

Figure 12.13 Sample Multiprocessor Serial Reception Flowchart (2)
