Rev. 1.00, 05/04, page 170 of 544
9.5 Operation Timing
9.5.1 FRC Increment Timing

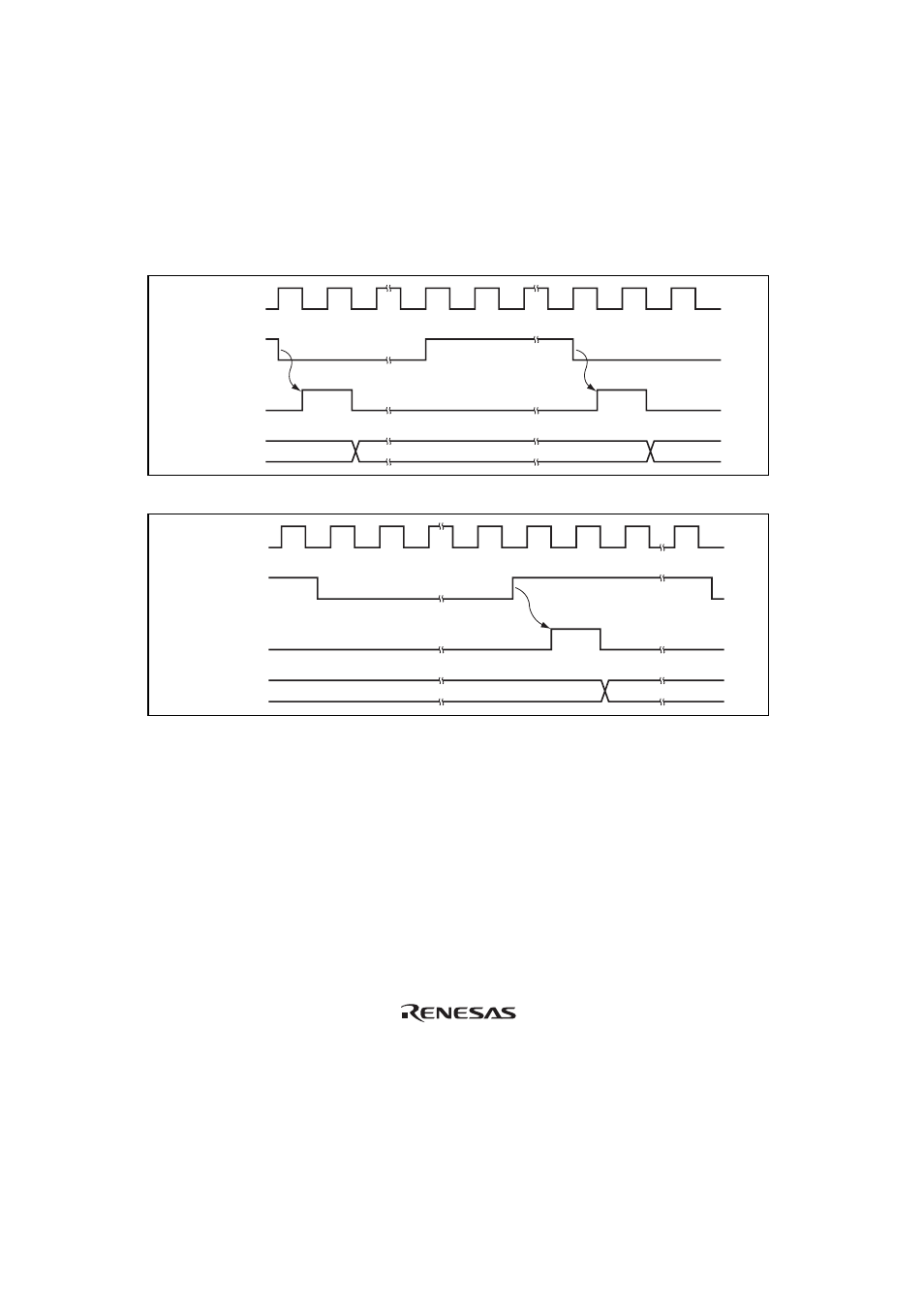

Figure 9.3 shows the FRC increment timing with an internal clock source. Figure 9.4 shows the
increment timing with an external clock source. The pulse width of the external clock signal must
be at least 1.5 system clocks (
φ). The counter will not increment correctly if the pulse width is
shorter than 1.5 system clocks (
φ).
φ
Internal clock
FRC input
clock
FRC N – 1 N + 1 N
Figure 9.3 Increment Timing with Internal Clock Source
φ
External clock
input pin
FRC input
clock
FRC N + 1 N
Figure 9.4 Increment Timing with External Clock Source
