8.4 Operation
The upper four bits of PWDR specify the duty cycle of the basic pulse as 0/16 to 15/16 with a
resolution of 1/16. Table 8.4 shows the duty cycles of the basic pulse.

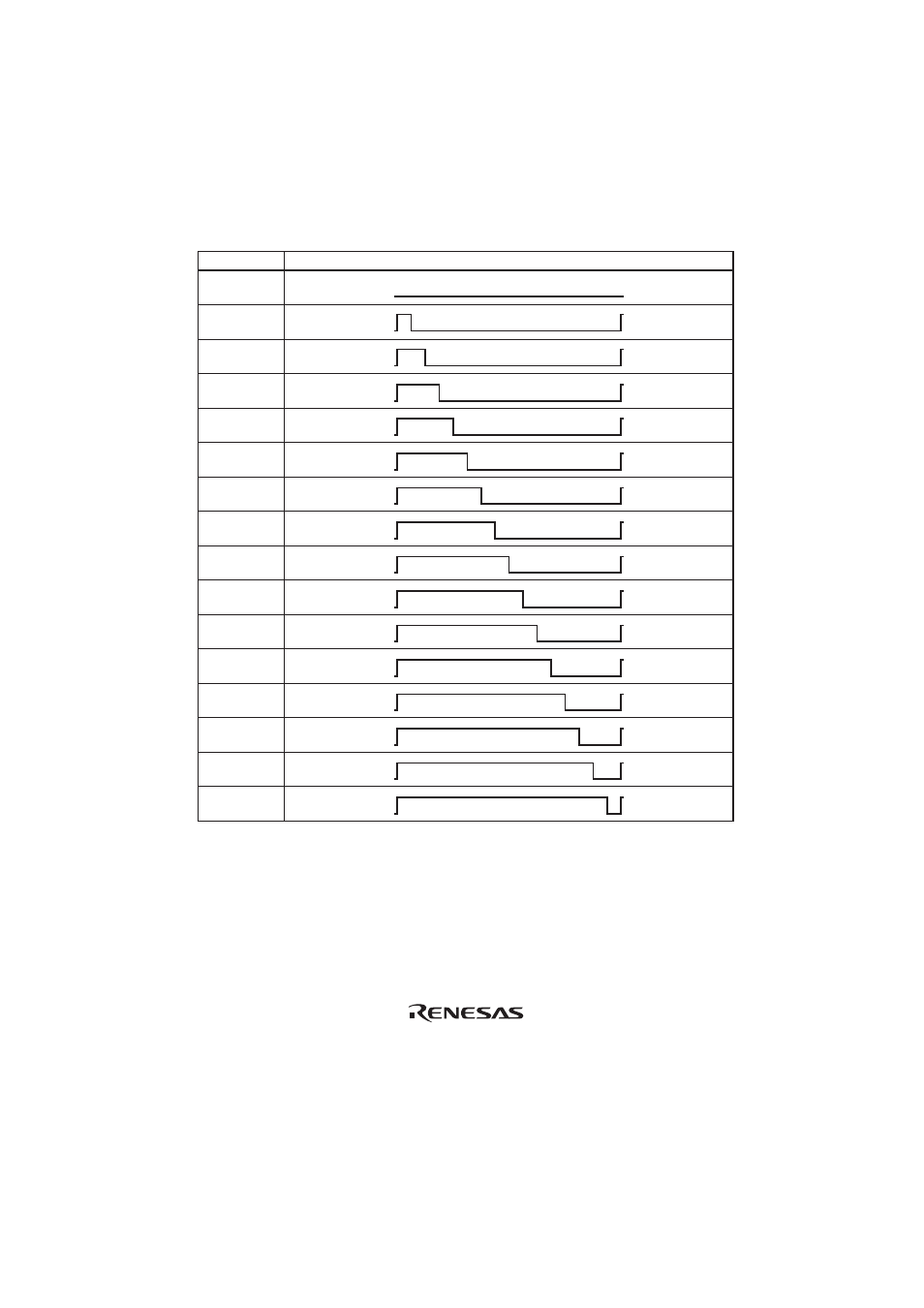

Table 8.4 Duty Cycle of Basic Pulse
0 H:
L:
1 2 3 4 5 6 7 8 9 A B C D E F 0
Upper 4 Bits Basic Pulse Waveform (Internal)
B ' 0 0 0 0
B ' 0 0 0 1
B ' 0 0 1 0
B ' 0 0 1 1
B ' 0 1 0 0
B ' 0 1 0 1
B ' 0 1 1 0
B ' 0 1 1 1
B ' 1 0 0 0
B ' 1 0 0 1
B ' 1 0 1 0
B ' 1 0 1 1
B ' 1 1 0 0
B ' 1 1 0 1
B ' 1 1 1 0
B ' 1 1 1 1
