Rev. 1.00, 05/04, page 433 of 544

18.2 Mode

Transitions

When the mode pins are set in the reset state and a reset-start is executed, this LSI enters an
operating mode as shown in figure 18.2. In user mode, flash memory can be read but not
programmed or erased. The boot, user program, and programmer modes are provided as modes to
write and erase the flash memory.

The differences between boot mode and user program mode are shown in table 18.1. Figure 18.3
shows the boot mode and figure 18.4 shows the user program mode.

RES

= 0

RES = 0

FLSHE = 1
SWE = 1

FLSHE = 0
SWE = 0

*

1

*

2

RES

= 0

MD1 = 1

RES

= 0

Boot mode

On-board programming mode

User

program

mode

User mode

(on-chip ROM

enabled)

Reset state

Programmer

mode

Notes: Only make a transition between user mode

and user program mode when the CPU is not

accessing the flash memory.

1. MD1 = MD0 = 0, P92 = P91 = P90 = 1

2. MD1 = MD0 = 0, P92 = 0, P91 = P90 = 1

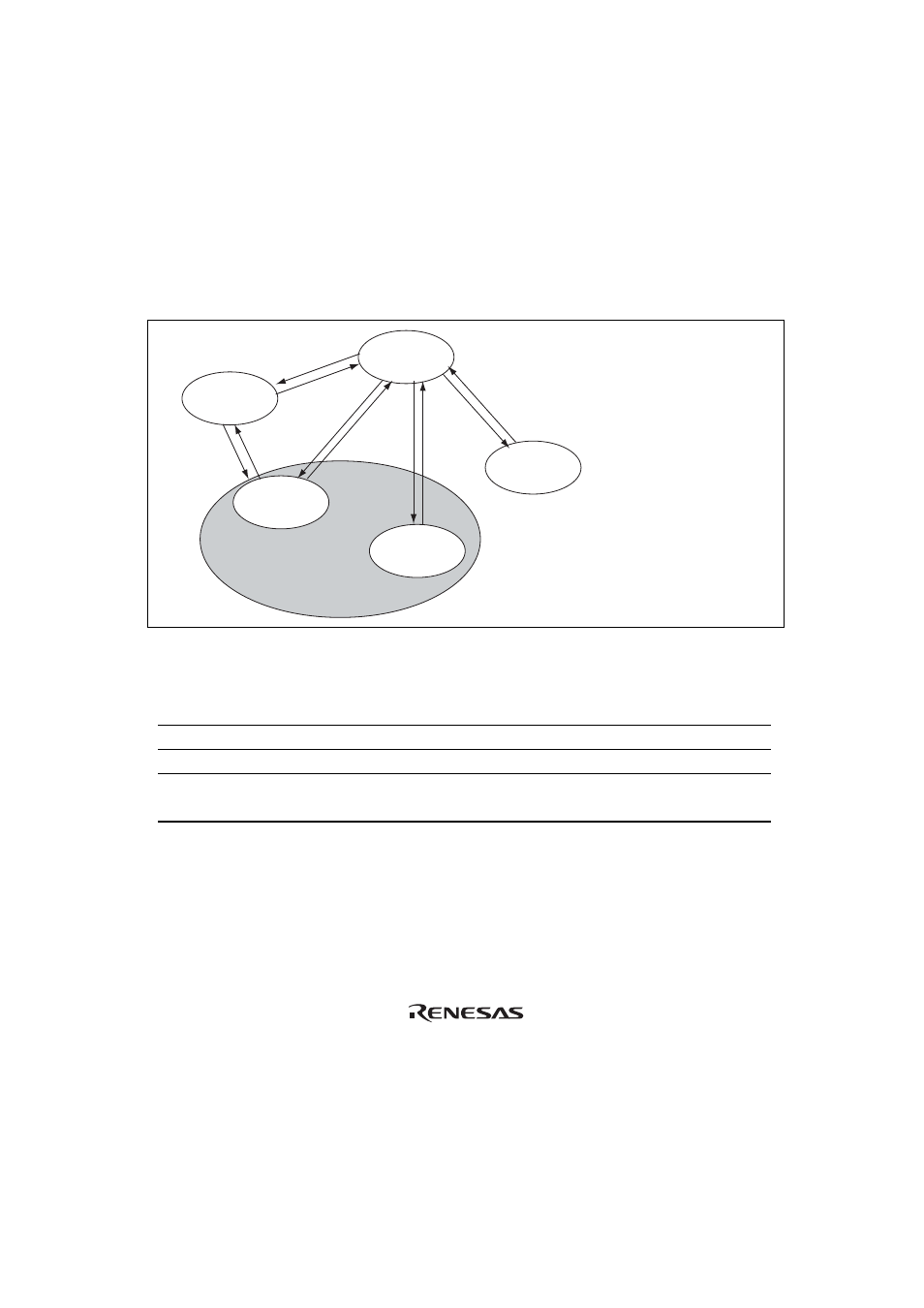

Figure 18.2 Flash Memory State Transitions

Table 18.1 Differences between Boot Mode and User Program Mode

Boot Mode

User Program Mode

Total erase

Yes

Yes

Block erase

No

Yes

Programming control program* Program/program-verify

Program/program-verify

Erase/erase-verify

Note: * Should be provided by the user, in accordance with the recommended algorithm.
