Rev. 1.00, 05/04, page 364 of 544

14.4.8 KCLK

Fall

Interrupt Operation

In this device, clearing the KBFSEL bit to 0 in KBCRH enables the KBF bit in KBCRL to be used
as a flag for the interrupt generated by the fall of KCLK input.

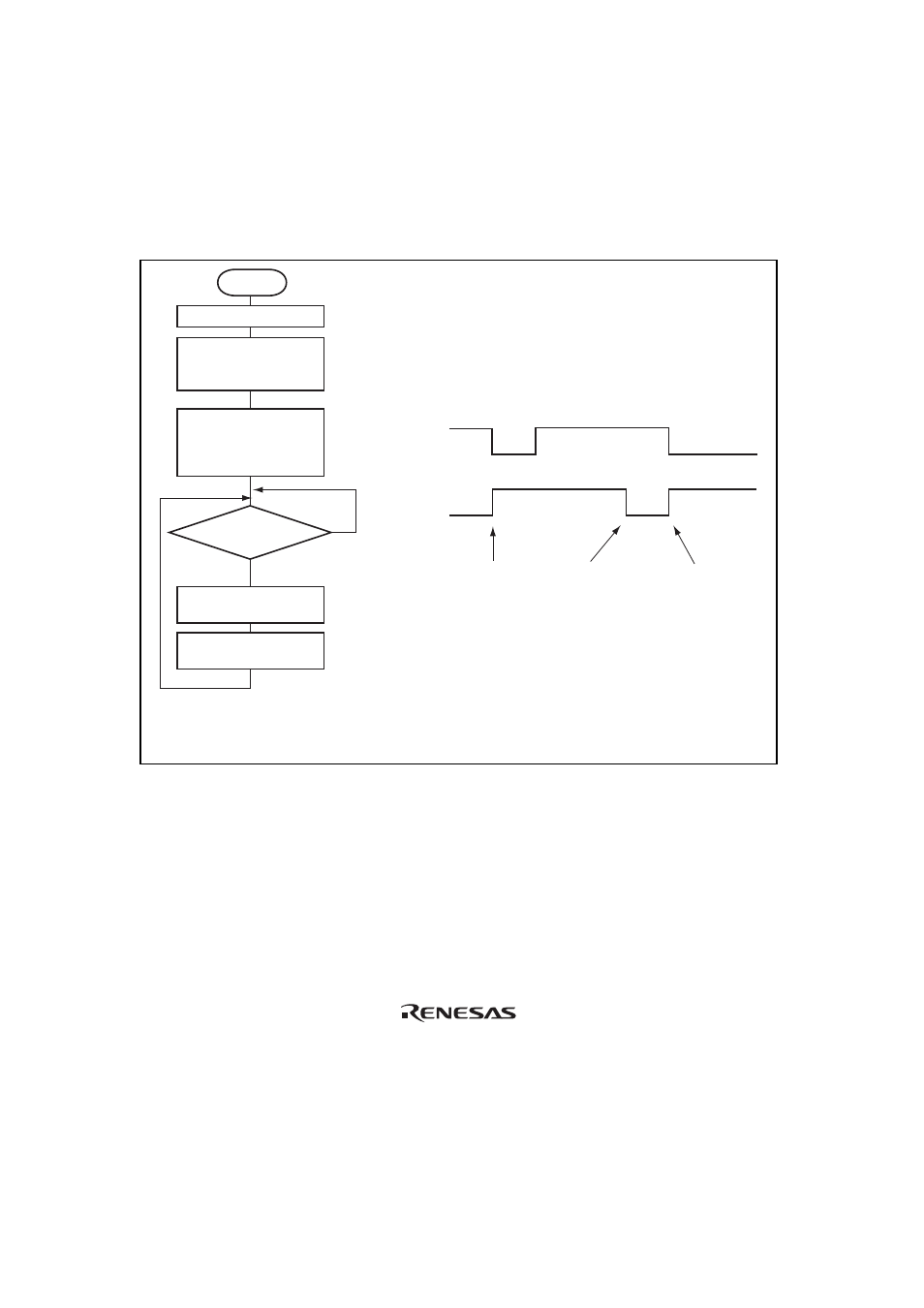

Figure 14.13 shows the setting method and an example of operation.

Start

Set KBIOE

KBF = 1

(interrupt generated)

KBE = 0

(KBBR reception

disabled)

Interrupt handling

Clear KBF

KCLK pin

fall detected?

KBFSEL = 0

KBIE = 1

(KCLK falling edge

interrupts enabled)

Yes

No

KCLK
(pin state)

KBF bit

Interrupt
generated

Interrupt
generated

Cleared
by software

Note: * The KBF setting timing is the same as the timing of KBF setting and KCLK automatic I/O inhibit bit generation in

figure 14.11. When the KBF bit is used as the KCLK input fall interrupt flag, the automatic I/O inhibit function does

not operate.

Figure 14.13 Example of KCLK Input Fall Interrupt Operation
