Rev. 1.00, 05/04, page 266 of 544

12.6.3

Serial Data Transmission (Clocked Synchronous Mode)

Figure 12.16 shows an example of SCI operation for transmission in clocked synchronous mode.
In serial transmission, the SCI operates as described below.

1. The SCI monitors the TDRE flag in SSR, and if it is 0, recognizes that data has been written to

TDR, and transfers the data from TDR to TSR.

2. After transferring data from TDR to TSR, the SCI sets the TDRE flag to 1 and starts

transmission. If the TIE bit in SCR is set to 1 at this time, a TXI interrupt request is generated.
Because the TXI interrupt routine writes the next transmit data to TDR before transmission of
the current transmit data has finished, continuous transmission can be enabled.

3. 8-bit data is sent from the TxD pin synchronized with the output clock when output clock

mode has been specified and synchronized with the input clock when use of an external clock
has been specified.

4. The SCI checks the TDRE flag at the timing for sending the last bit.

5. If the TDRE flag is cleared to 0, data is transferred from TDR to TSR, and serial transmission

of the next frame is started.

6. If the TDRE flag is set to 1, the TEND flag in SSR is set to 1, and the TxD pin maintains the

output state of the last bit. If the TEIE bit in SCR is set to 1 at this time, a TEI interrupt request
is generated. The SCK pin is fixed high.

Figure 12.17 shows a sample flow chart for serial data transmission. Even if the TDRE flag is
cleared to 0, transmission will not start while a receive error flag (ORER, FER, or PER) is set to 1.
Make sure to clear the receive error flags to 0 before starting transmission. Note that clearing the
RE bit to 0 does not clear the receive error flags.

Transfer direction

Bit 0

Serial data

Synchronization
clock

1 frame

TDRE

TEND

Data written to TDR
and TDRE flag cleared
to 0 in TXI interrupt
handling routine

TXI interrupt
request generated

Bit 1

Bit 7

Bit 0

Bit 1

Bit 6

Bit 7

TXI interrupt
request generated

TEI interrupt request
generated

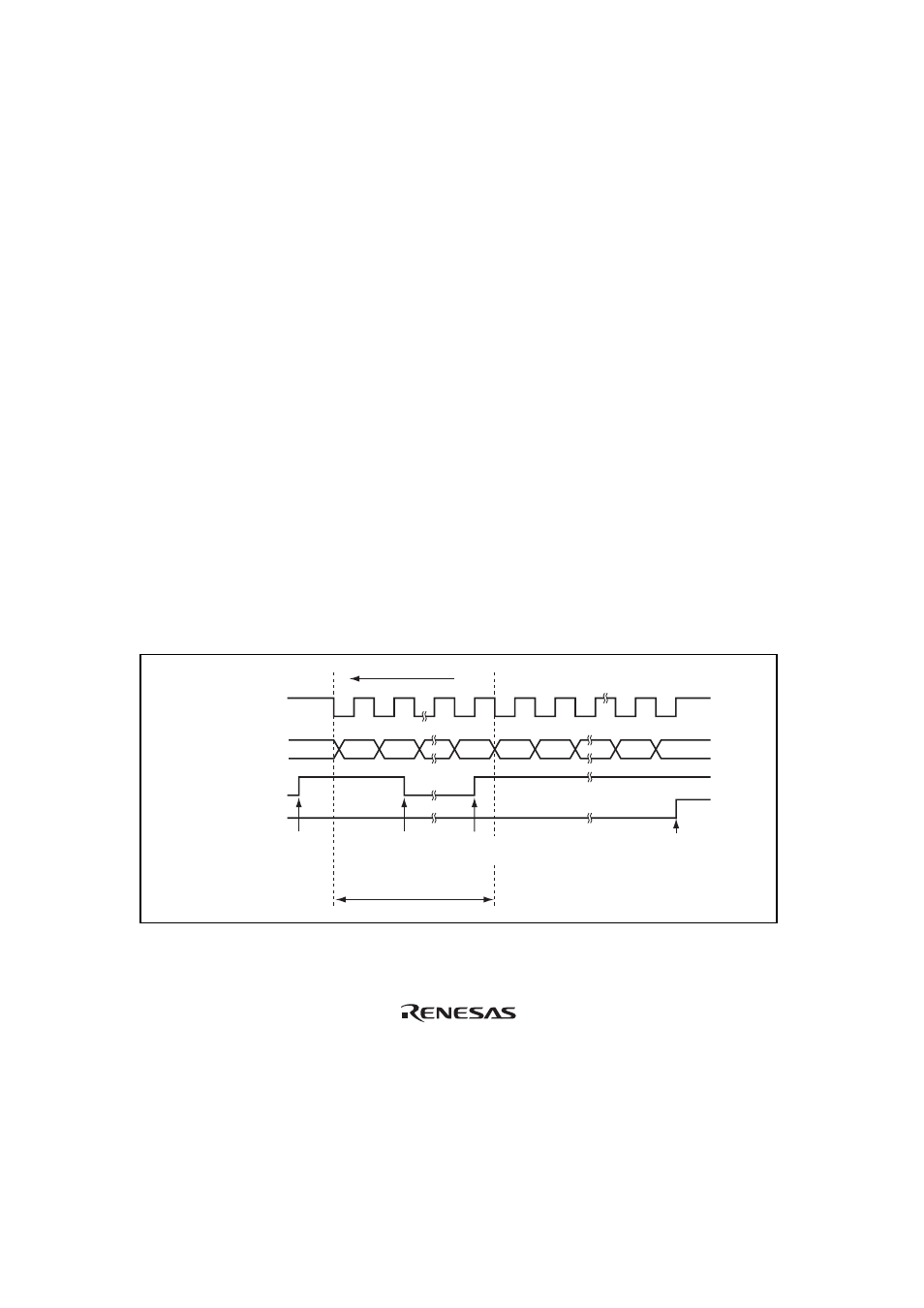

Figure 12.16 Example of SCI Transmit Operation in Clocked Synchronous Mode
