Rev. 1.00, 05/04, page 20 of 544
2.3 Address Space

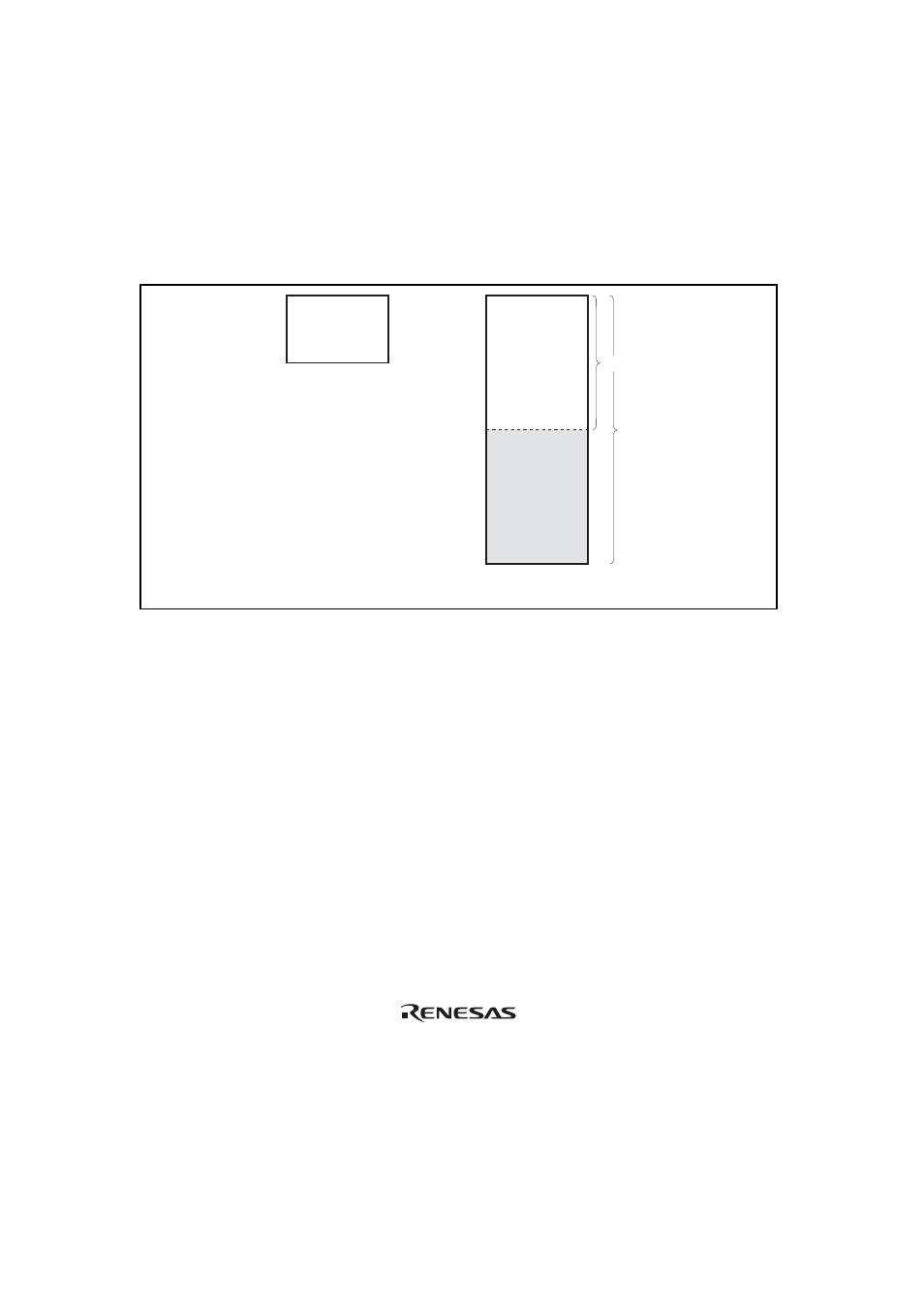

Figure 2.5 shows a memory map of the H8S/2000 CPU. The H8S/2000 CPU provides linear
access to a maximum 64-Kbyte address space in normal mode, and a maximum 16-Mbyte
(architecturally 4-Gbyte) address space in advanced mode. The usable modes and address spaces
differ depending on the product. For details on each product, refer to section 3, MCU Operating
Modes.
H'0000
H'FFFF
H'00000000
H'FFFFFFFF
H'00FFFFFF
64 Kbytes
16 Mbytes Program area
Data area
(b) Advanced Mode (a) Normal Mode
Not available
in this LSI
Figure 2.5 Memory Map
