Layer 3/4 Priority Settings
38
4. Set the PHB and drop precedence for any DSCP value.
5. Click Apply.

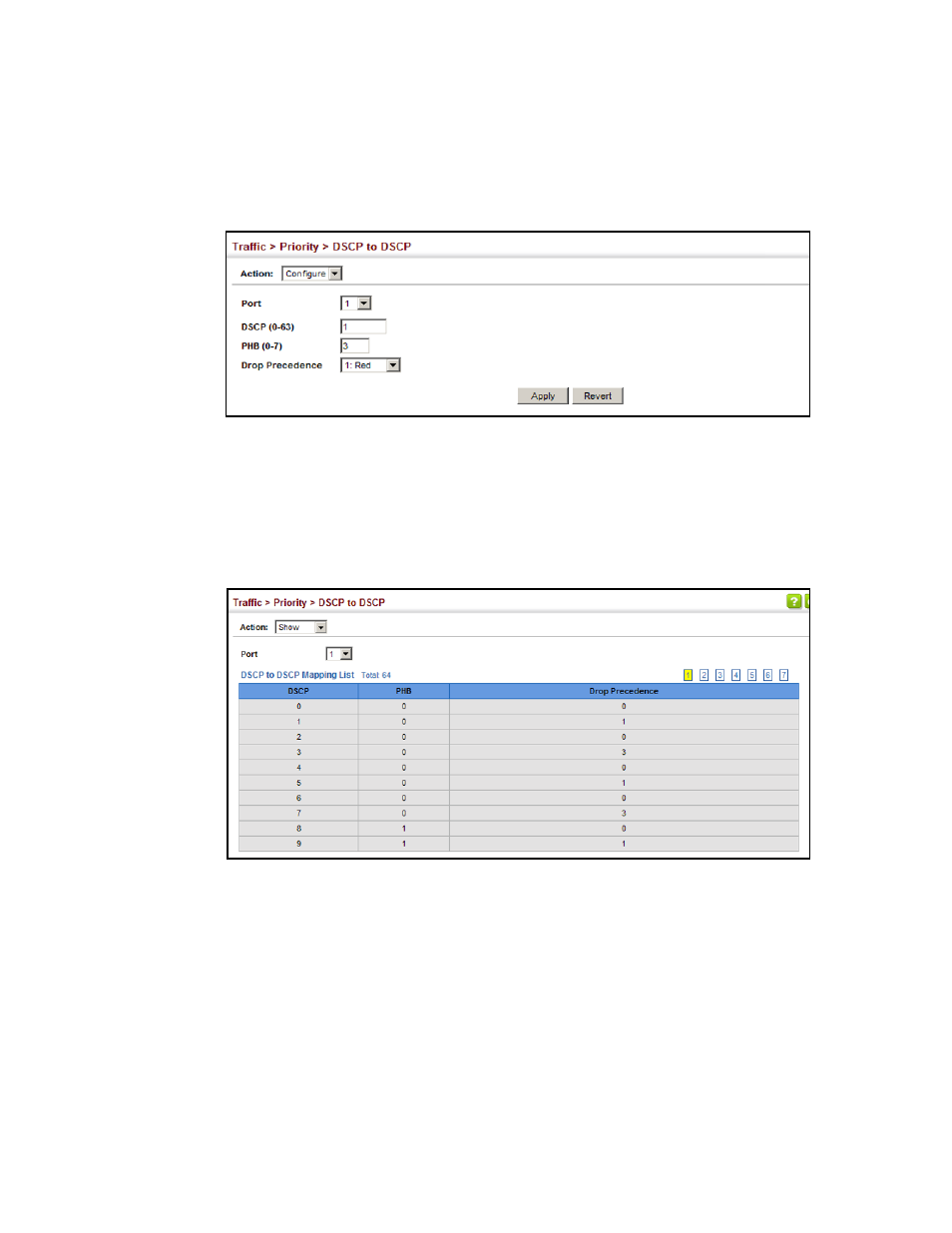

FIGURE 144
Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
3. Select a port.
FIGURE 145
Showing DSCP to DSCP Internal Mapping
Mapping CoS Priorities to Internal DSCP Values
Use the Traffic > Priority > CoS to DSCP page to maps CoS/CFI values in incoming packets to
per-hop behavior and drop precedence values for priority processing.
CLI References
•
Command Usage
•
The default mapping of CoS to PHB values is shown in
•
Enter up to eight CoS/CFI paired values, per-hop behavior and drop precedence.
