1078 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002581-01
Filtering and Throttling IGMP Groups
46

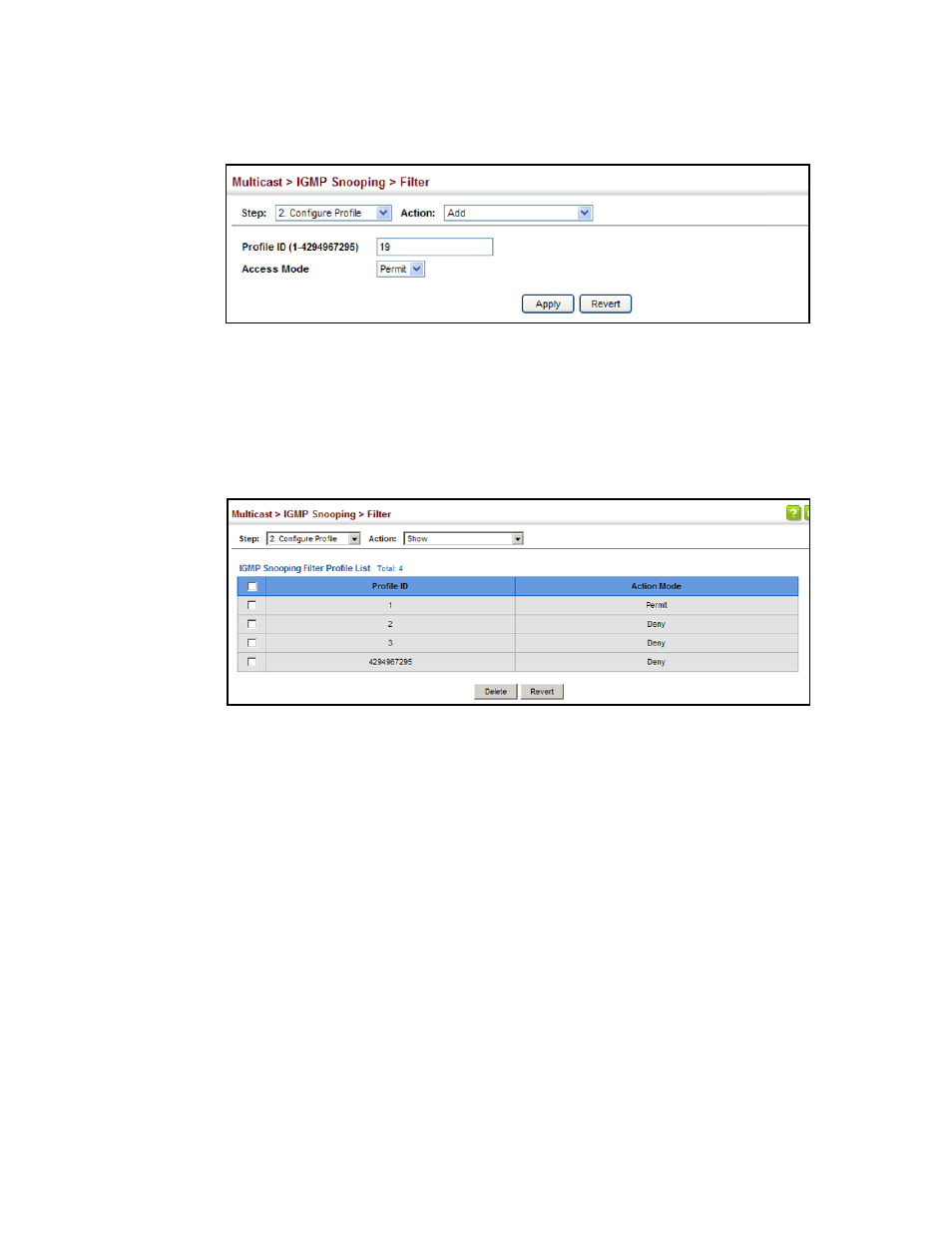

FIGURE 367 Creating an IGMP Filtering Profile
To show the IGMP filter profiles:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Show from the Action list.
FIGURE 368 Showing the IGMP Filtering Profiles Created
To add a range of multicast groups to an IGMP filter profile:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Add Multicast Group Range from the Action list.
4. Select the profile to configure, and add a multicast group address or range of addresses.
5. Click Apply.
