Brocade 6910 Ethernet Access Switch Configuration Guide
1091
53-1002581-01
Multicast VLAN Registration for IPv4
46
•
VLAN – The VLAN through which the service is received. Note that this may be different from
the MVR VLAN if the group address has been statically assigned.
•
Port – Shows the interfaces with subscribers for multicast services provided through the MVR
VLAN.
•
Up Time – Time this service has been forwarded to attached clients.
•
Expire – Time before this entry expires if no membership report is received from currently
active or new clients.
•
Count – The number of multicast services currently being forwarded from the MVR VLAN.
Interface
To display the interfaces assigned to the MVR receiver groups:
1. Click Multicast, MVR.
2. Select Show Member from the Step list.
3. Select an MVR domain.

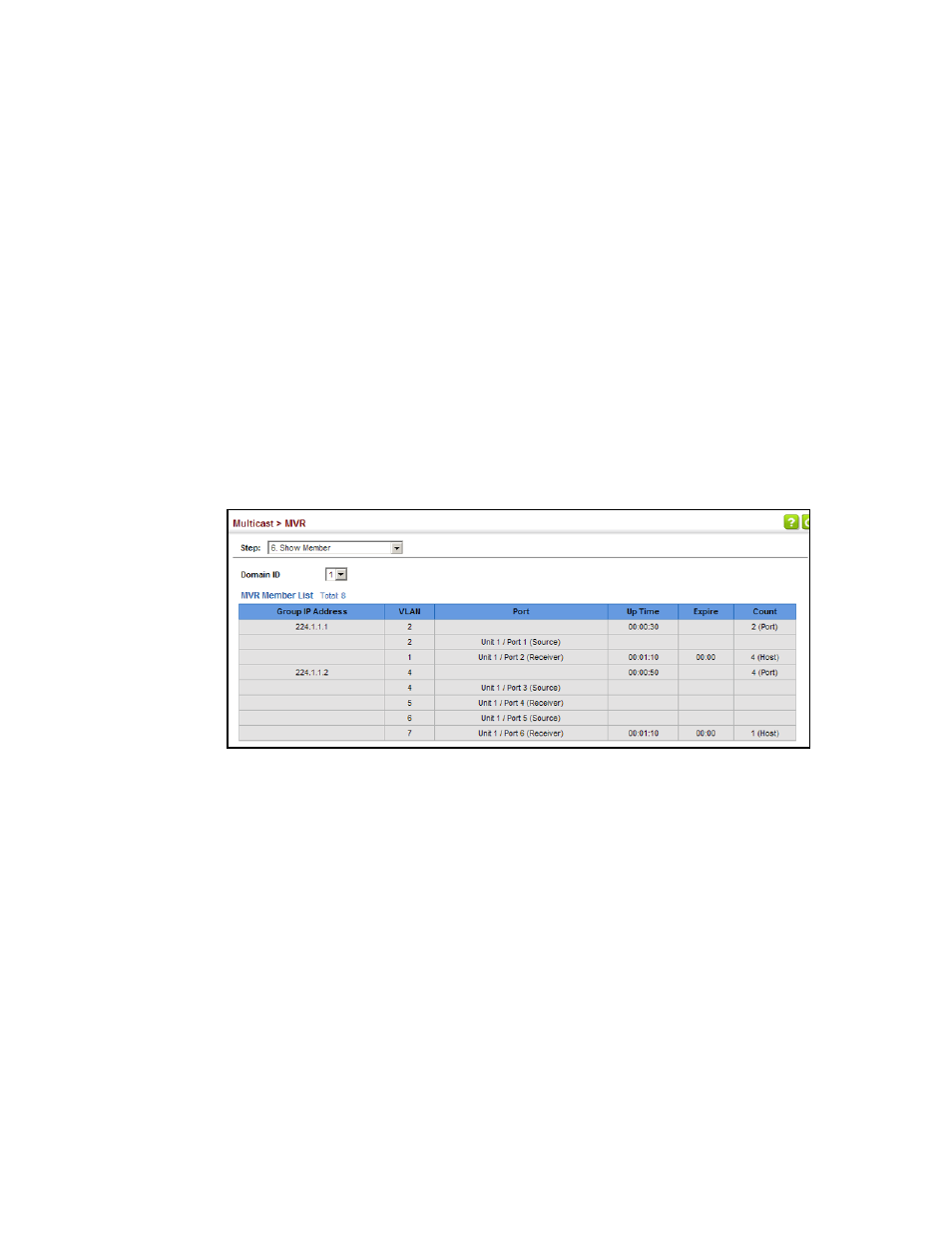

FIGURE 382
Displaying MVR Receiver Groups
Displaying MVR Statistics
Use the Multicast > MVR > Show Statistics pages to display MVR protocol-related statistics for the
specified interface.
CLI References
•
Parameters
These parameters are displayed:
•
Domain ID – An independent multicast domain. (Range: 1-5)
•
VLAN – VLAN identifier. (Range: 1-4093)
•
Port – Port identifier. (Range: 1-12)
•
Trunk – Trunk identifier. (Range: 1-12)
