Chapter 2 Installation
2.3 How to Install
82

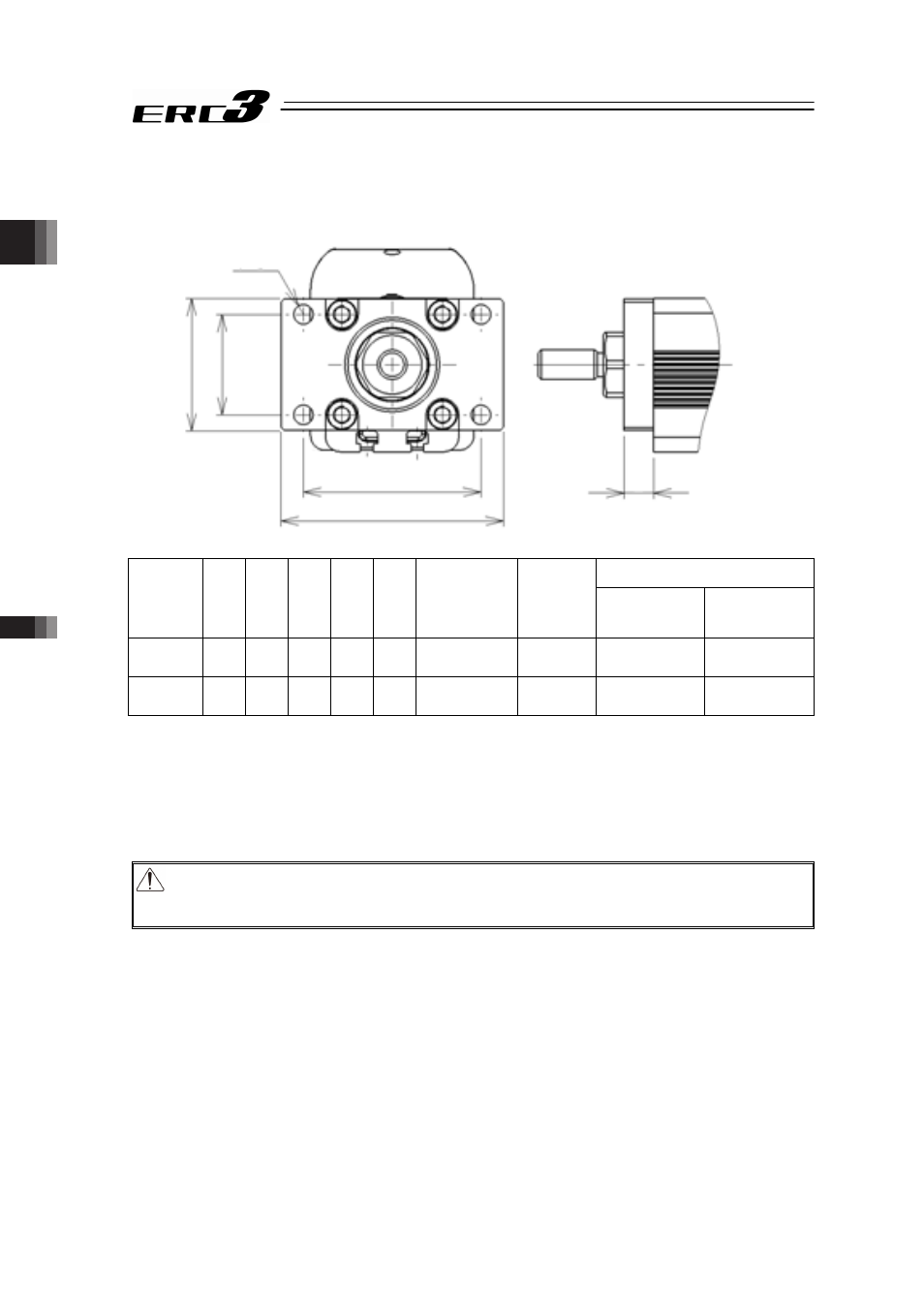

• When Using Flange Bracket (Option)
When installing the unit with using the flange bracket, use the tapped holes as for the direct
installation and affix with hex socket head cap screws.
Regarding attachment screws
• Use of high-tension bolts meeting at least ISO-10.9 is recommended.
• For the effective engagement length between the bolt and female thread, provide at least the
applicable value specified below:
Female thread is made of steel material ĺ Same length as the nominal diameter
Female thread is made of aluminum ĺ 1.8 times of nominal diameter
Caution: Pay attention when selecting screws. If a bolt out of the instruction is used, it may
cause damage on tapped holes or unexpected accident or failure due to insufficient
strength on the actuator attachment.
Tightening Torque [N•m]
Actuator
Type
A B C D E F
Mounting
Screw
If the platform to
attach actuator
is steel
If the platform to
attach actuator
is aluminum
RA4C 44.5 75 10 34 60 I6.6 through
hole
M6 12.34 5.36
RA6C 63.5 99 12 50 82
I 9 through
hole
M8 29.97 11.48
A
E C
D
B
4-F
