Creating Storagesets 3–3

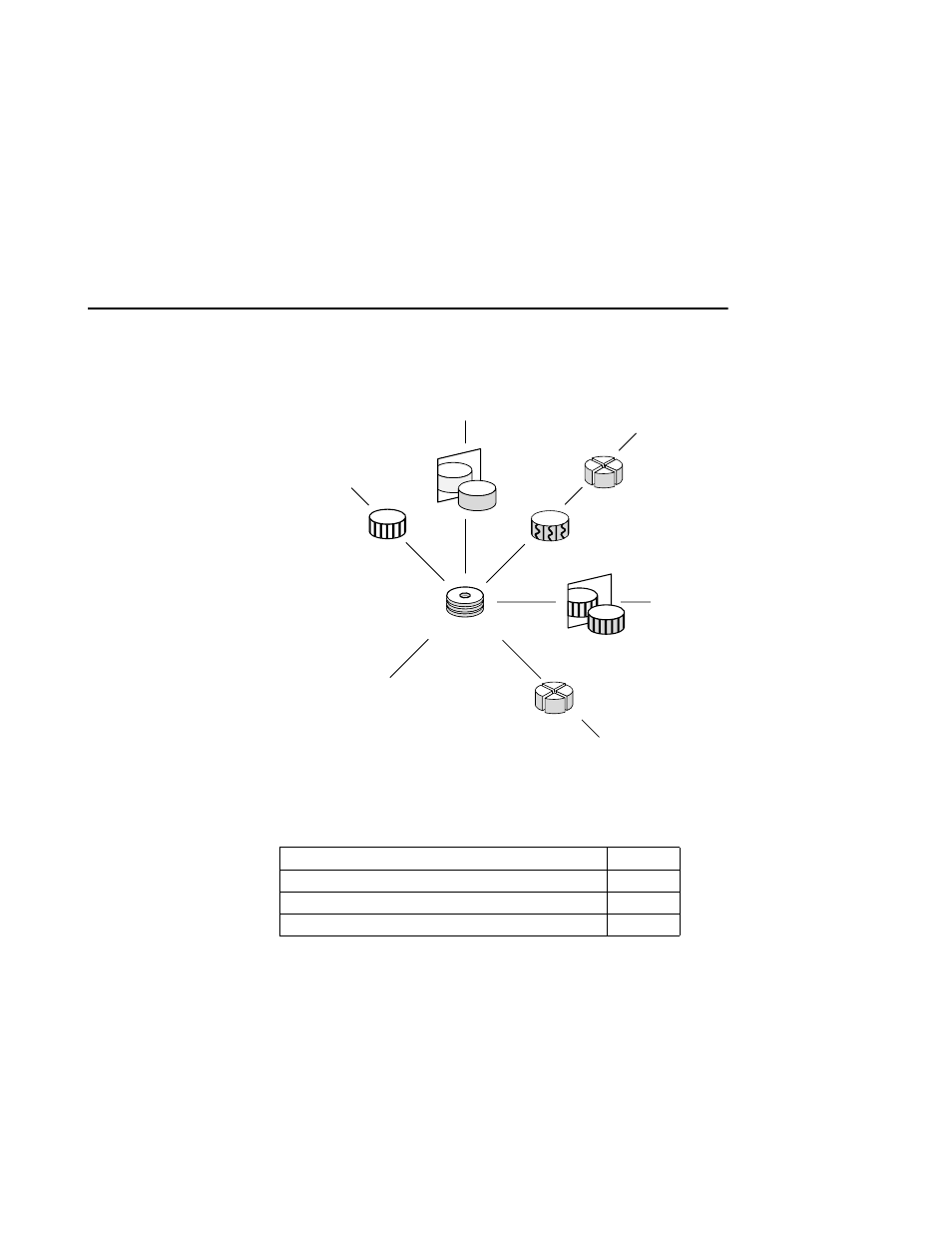

Figure 3–1 Units Created from Storagesets, Partitions, and
Drives
Table 3–1 Controller Limitations for RAIDsets
Unit
RAIDset
Mirrorset
Unit
Unit
Unit
Unit
Striped
mirrorset
Stripeset
CXO5368B
Partitioned
disk drive
Partitioned
storageset
Disk drives
Unit
RAIDset Type Limit
Total number of RAID5 20
Total number of RAID5 + RAID1 30
Total number of RAID5 + RAID1 + RAID0 45
