5–44 HSG80 User’s Guide
Installing DIMMs
Use the following steps to install a DIMM in a cache module:
1. Insert the DIMM straight into the socket and ensure that the notches in
the DIMM align with the tabs in the socket (see Figure 5–8).

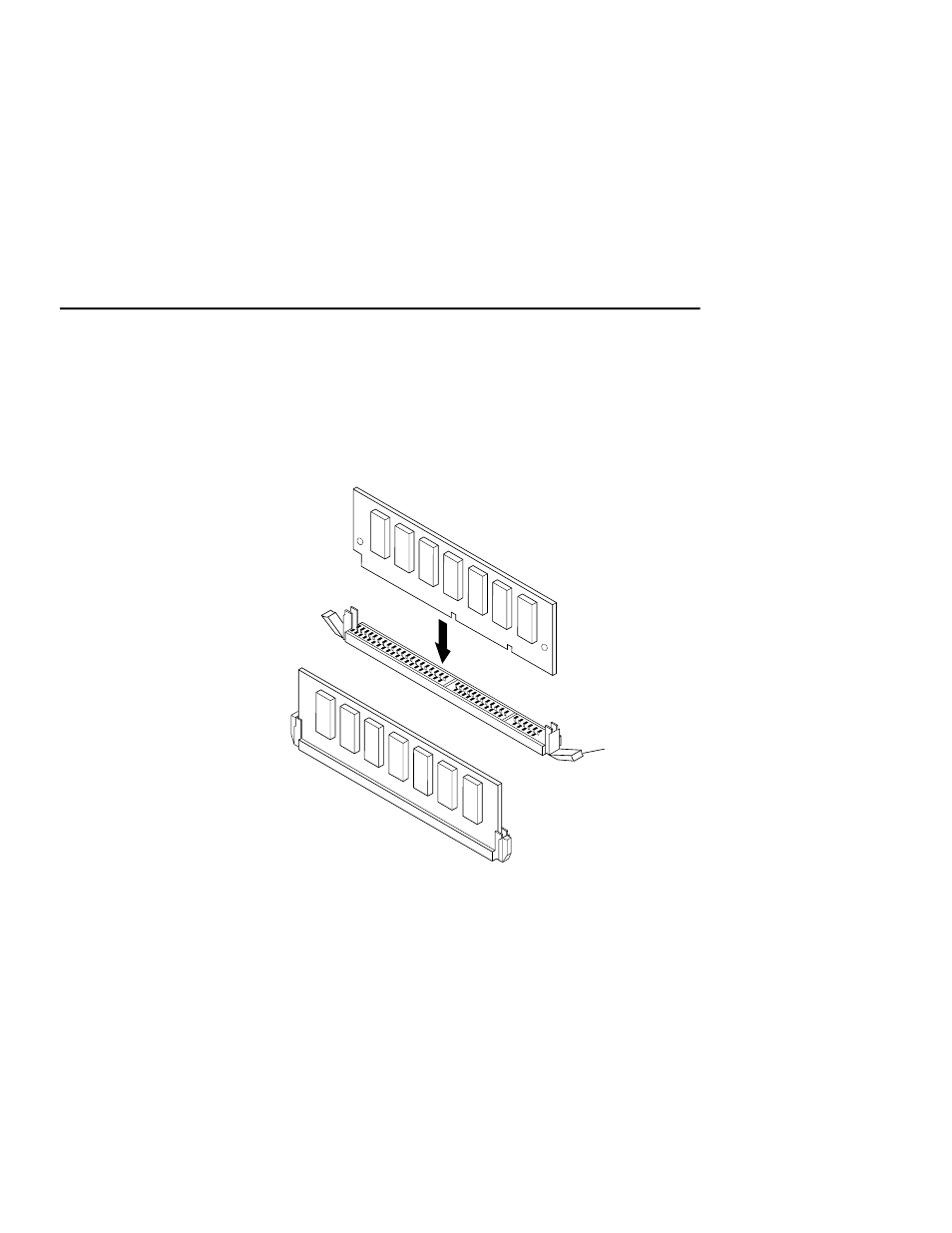

Figure 5–8 Installing a DIMM
2. Press the DIMM gently until it’s seated in the socket.
3. Double-check to ensure both ends of the DIMM are firmly seated in the
slot and both retaining clips engage the DIMM.
4. Install the cache module using the steps in either “Installing the Cache
Module in a Single Controller Configuration,” page 5–7, or “Installing a
Cache Module in a Dual-Redundant Controller Configuration,” page
5–24.
CXO6163A
Retaining
clip
(2x)
