Configuring an HSG80 Array Controller 2–15
Use the following steps to connect a single, nonredundant controller to
the host using one hub:
1. Stop all I/O from the host to its devices on the bus to which you are
connecting the controller.
2. Connect the Fibre Channel cable from Port 1 on the controller to Port 1
of the hub.
For this configuration, set Port 2 off-line using the SET
THIS_CONTROLLER PORT_2_TOPOLOGY=OFFLINE command.
See Appendix B, “CLI Commands,” for details about the SET
command.
3. Follow the procedures in the Getting Started Guide for connecting the
Fibre Channel cable from the hub to your host system.
4. Route and tie the cables as desired.
Restart the I/O from the host. Some operating systems may require you
to restart the host to see the devices attached to the new controller.

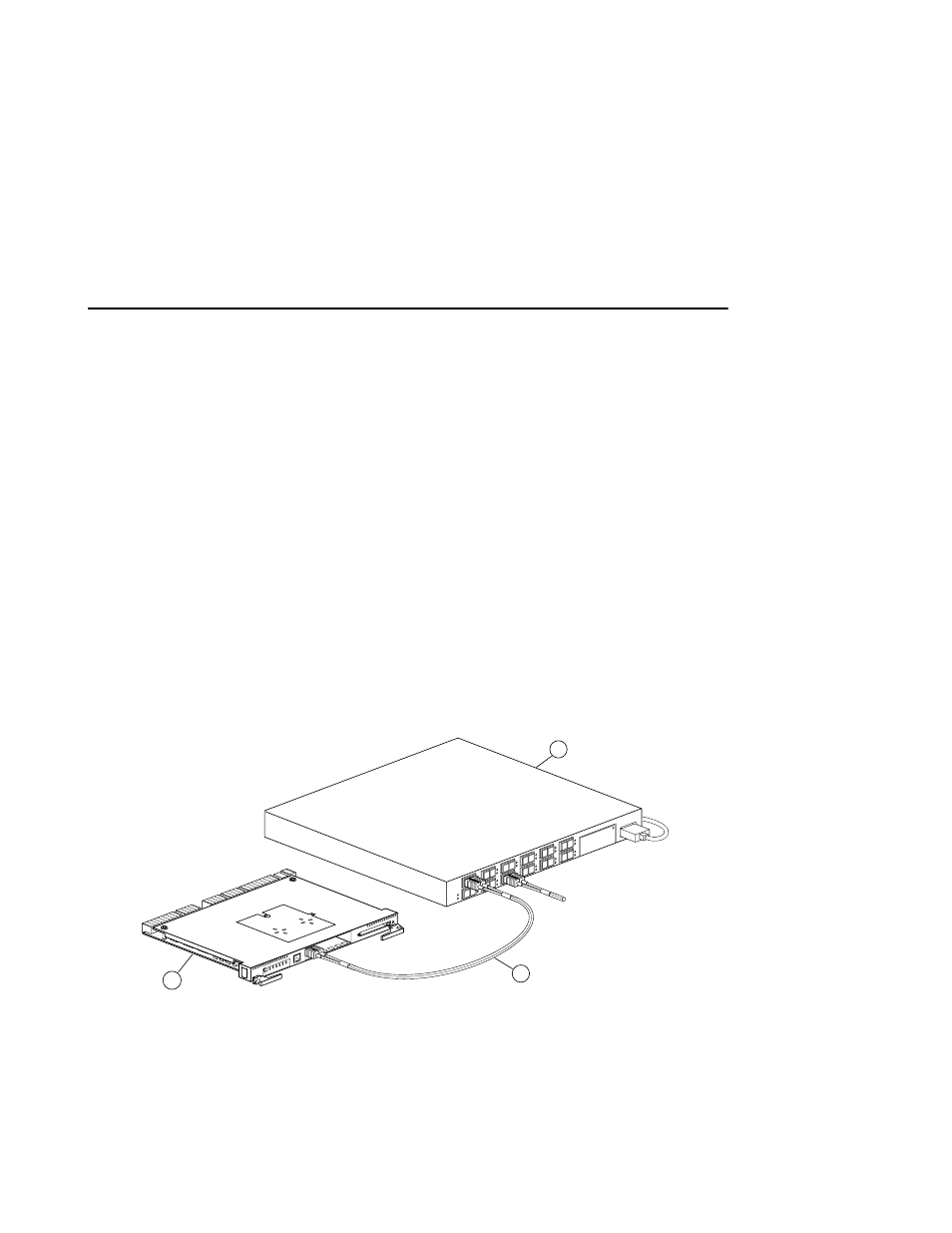

Figure 2–5 Cabling for Single Configuration with Fibre Channel Optical Support
CXO6495A
2
1
3
1 2 3 4 5 6
To host
