General Description 1–3

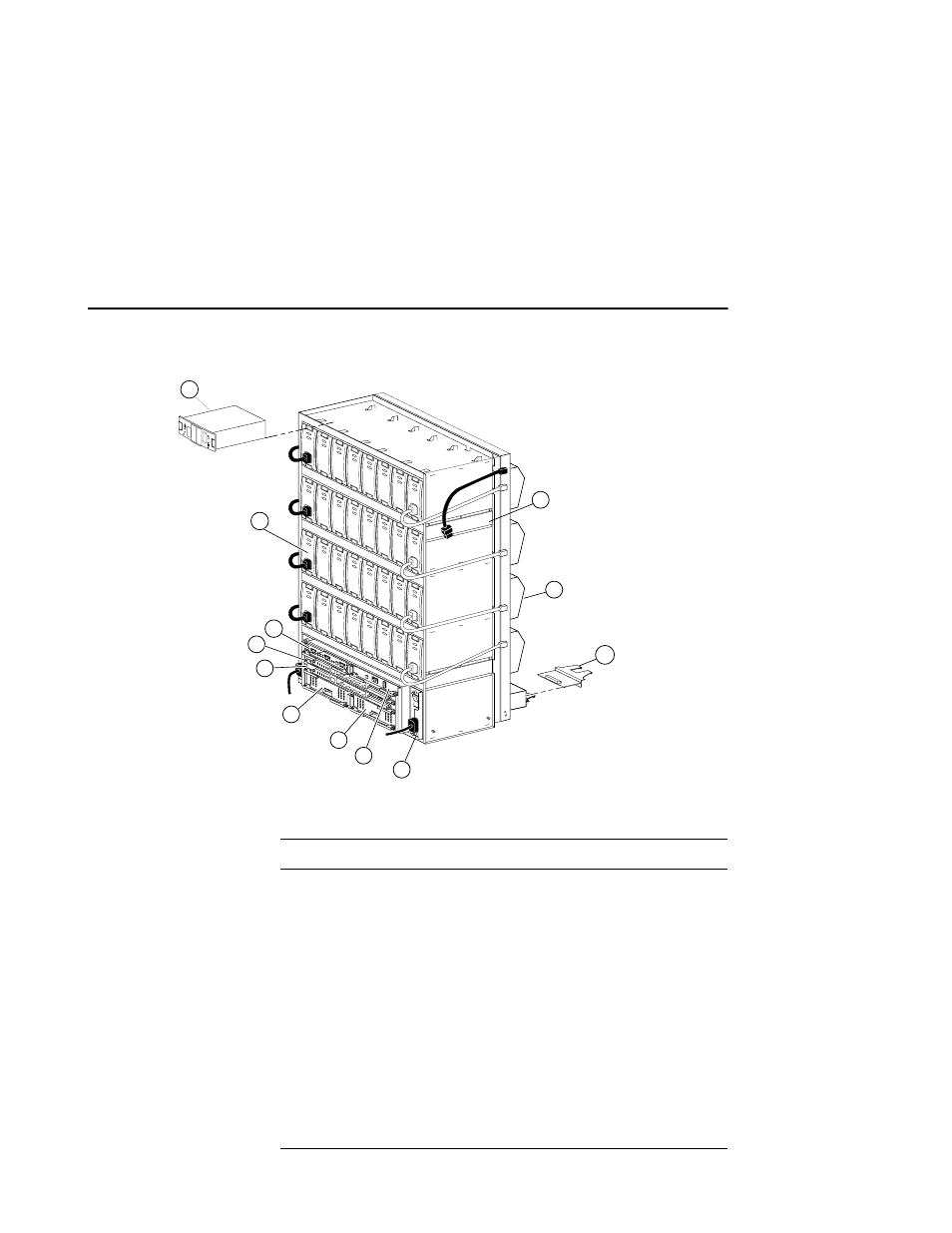

Figure 1–1 The HSG80 Subsystem
CXO6453A
1
2
3
7
9
10
5
4
6
11
6x
8
12
4x
Table 1–1 Key to Figure 1–1 The HSG80 Subsystem
Item Description Part No.
1 BA370 rack-mountable enclosure DS–BA370–AA
2 Cooling fan DS–BA35X–MK
3 I/O module 70–32876–01
4 AC input module DS–BA35X–HE
5 PVA module DS–BA35X–EC
6 Cache module B 70–33256–01
7 Cache module A 70–33256–01
8 HSG80 controller B 70–33259–01
9 HSG80 controller A 70–33259–01
10 EMU 70–32866–01
