3–32

HSG80 User’s Guide

Creating a Storageset Map

Configuring your subsystem will be easier if you know how the
storagesets correspond to the disk drives in your subsystem. You can
see this relationship by creating a storageset map like the one shown in
Figure 3–13. This storageset map is for a subsystem that contains two
RAIDsets, two mirrorsets, and three disk drives in the spareset. Each
enclosure also has redundant power supplies.

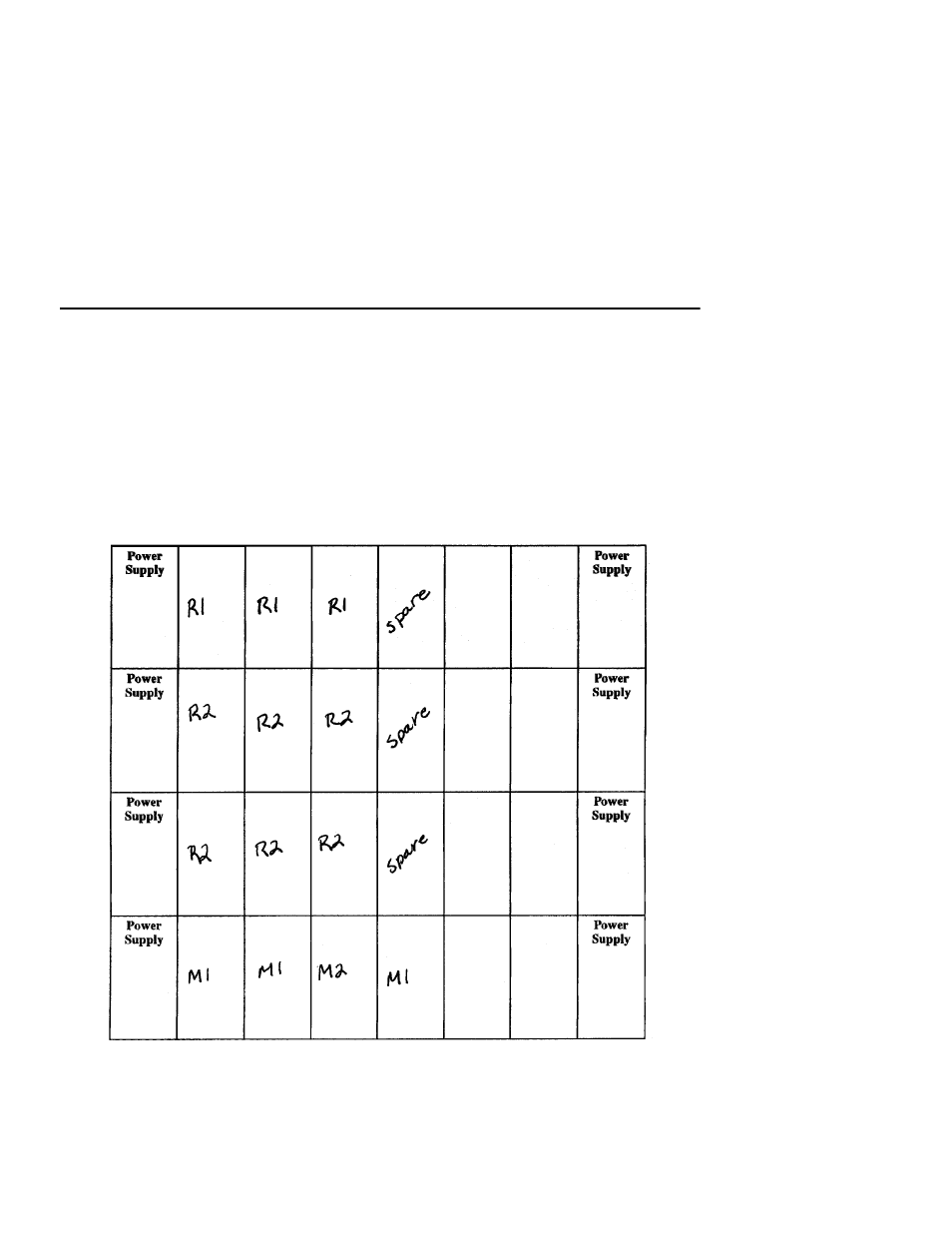

Figure 3–13

Storageset Map

To create a storageset map:

1. Copy the template from “Enclosure Template,” page A–4.
