Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

93

SAS/SATA Software Menus and Toolbars

Teledyne LeCroy

ATAPI

Double‐click ATAPI in the Patterns window of the Trigger dialog to open the
ATAPI Patterns dialog.

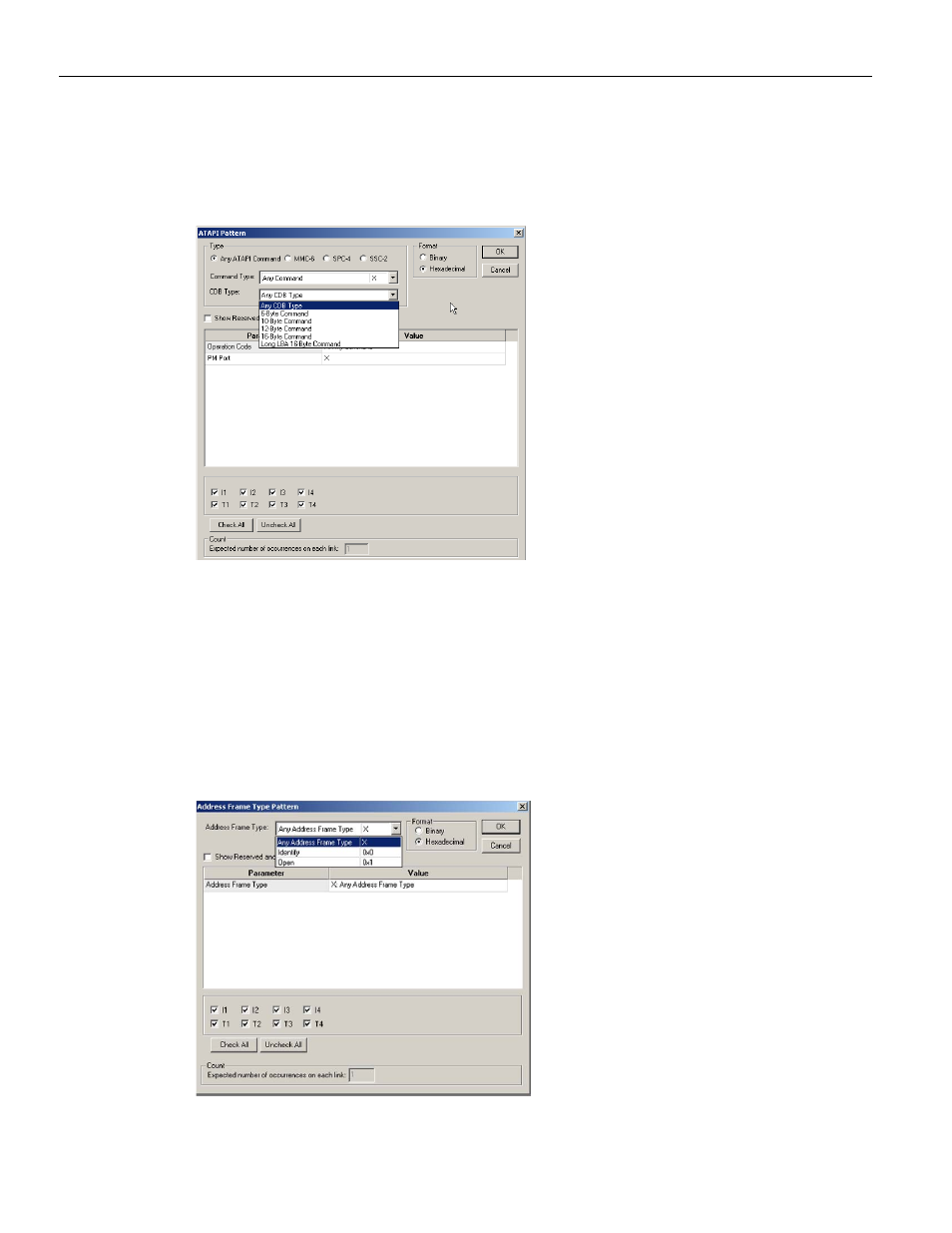

Figure 2.54: SAS: ATAPI Patterns Dialog

SAS vs. SATA: SATA Dialog has different dropdown options.

Click the down arrow next to the CDB dropdown list, scroll the list to choose a CDB Type,
and click OK.

Address Frame (SAS only)

Double‐click Address Frame in the Patterns window of the Trigger dialog to open the
Address Frame Type Pattern dialog.

Figure 2.55: SAS: Address Frame Type Pattern Dialog

SAS vs. SATA: Not available in SATA.
