Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 401
Sierra Trainer Menus Teledyne LeCroy
Figure 5.6: Trainer Search Menu
5.1.5 View Menu
See Figure 5.7 on page 401.
Zoom In: Increases the size of the displayed elements.
Zoom Out: Decreases the size of the displayed elements.
Toolbars: Displays list of available toolbars: Standard, Frequently Used, Generator,
Analyzer, Ports, or Customize. See
“Resetting the Toolbar” on page 474 .
Status Bar: Toggles the Sierra Trainer Status Bar, at the bottom of the window, which
shows help messages and the search direction. The right most segment displays the
current search direction: Fwd (forward) or Bwd (backward). Change the search direction
from the Search menu or double‐click the Search Status segment.
Wrap: Wraps displayed packets within the window.
Compact: Displays each row on one line only, with no wrapping.

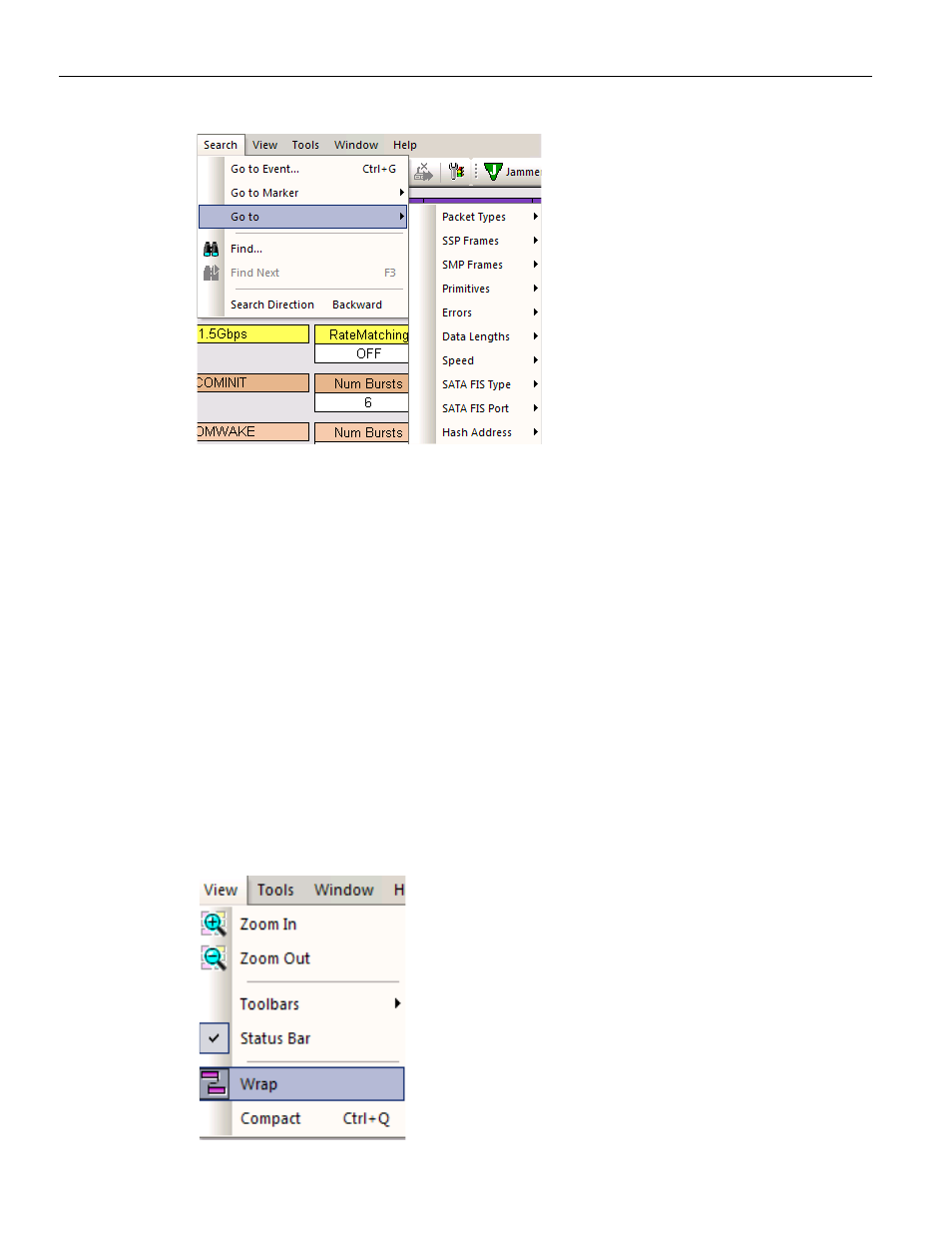

Figure 5.7: Trainer View Menu
