Teledyne LeCroy Analysis
234 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

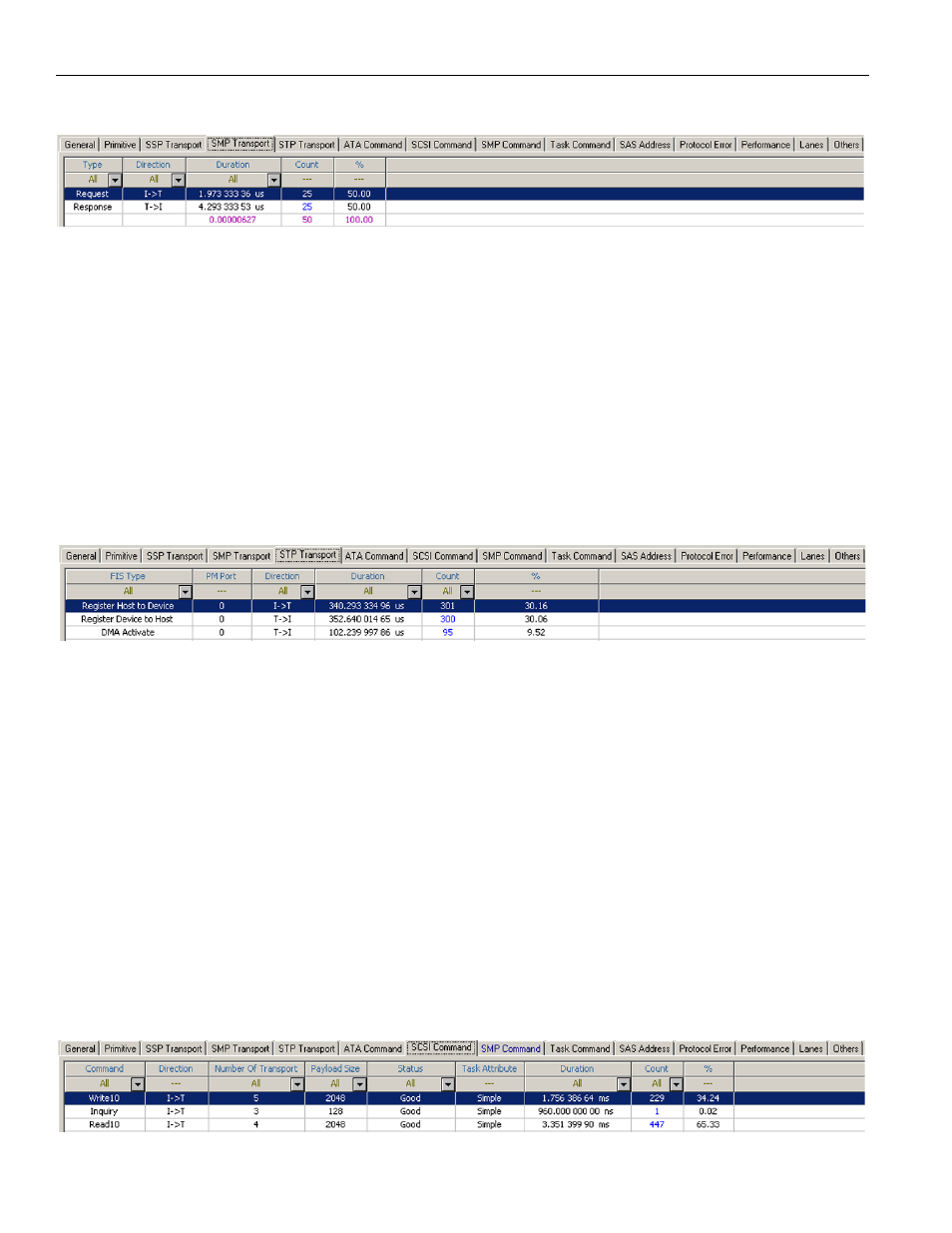

Figure 3.36: SAS: SMP Transport Report
STP Transport Report (SAS)
To display the STP Transport Report, click the STP Transport tab. The STP Transport
Report displays the report data in columns with the following information:
 FIS Type: All, Custom, Data, PIO Setup, Register Host To Device,
Register Device To Host
 PM Port
 Direction: All, I‐>T, T‐>I, or Custom
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count
Figure 3.37: SAS: STP Transport Report
SCSI Command Report (SAS)
To display the SCSI Command Report, click the SCSI Command tab. The SCSI Command
Report displays the report data in columns with the following information:
 Command: All, Custom, Inquiry, Mode Sense6, Pause Resume, Play Audio 10,
Read Capacity, Read10, Receive Diagnostic Results, Send Diagnostic, Write10,
Start Stop Unit, Test Unit Ready, Report Luns, Synchronize Cache10
 Direction: All, I‐>T, T‐>I, or Custom
 Number of Transport: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good, Incomplete, Response Data Present
 Task Attribute: Simple
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number
 %: of total count
Figure 3.38: SAS: SCSI Command Report
