Choosing Find New Device opens the Device Identifier dialog.

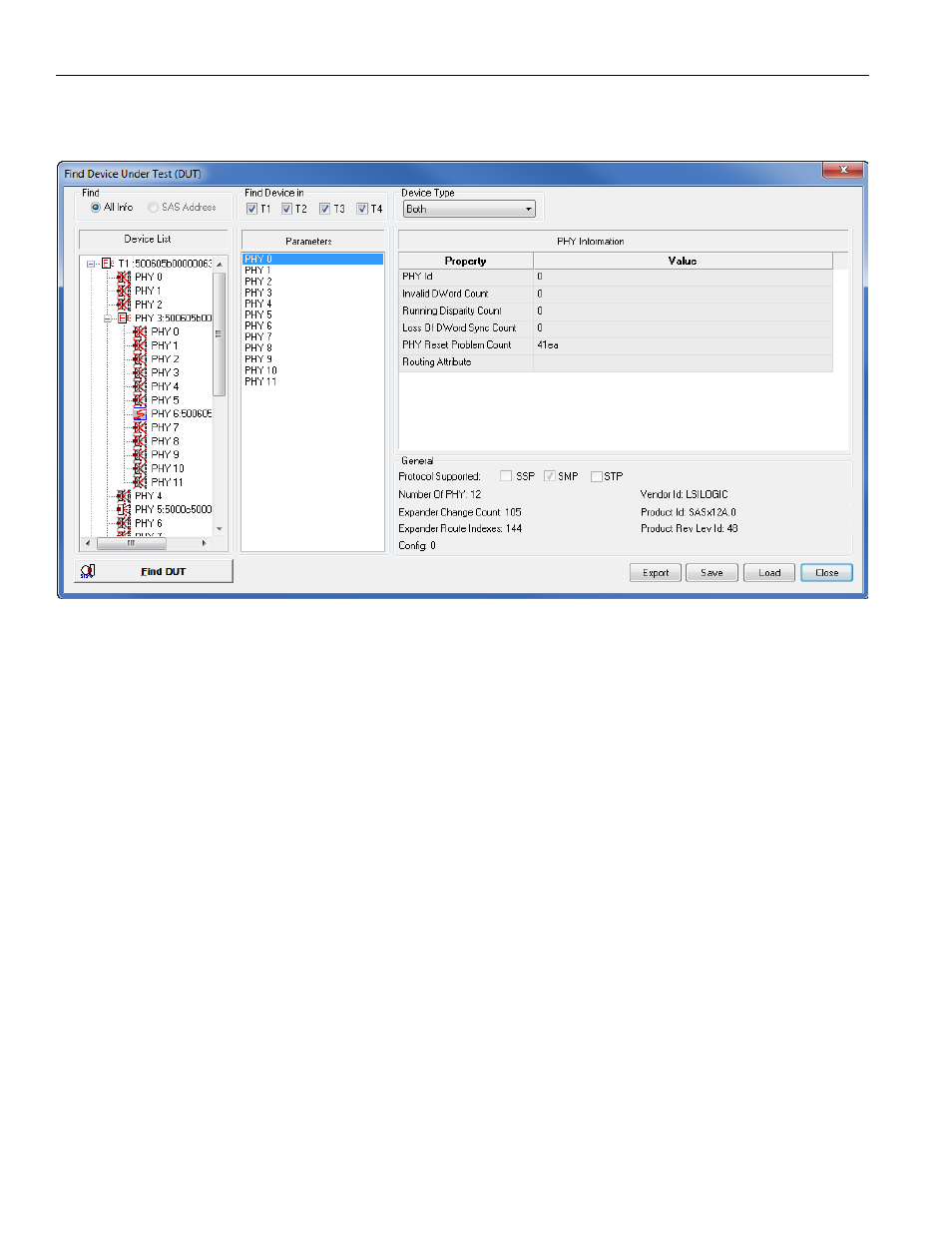

Figure 2.123: SAS: Device Identifier Dialog
SAS vs. SATA: SATA dialog does not show Find section (All Info and SAS Address).
SATA dialog has devices D1 to D4 and does not show T1 to T4.
SATA dialog does not show Supported Pages and Subpages.
SATA dialog lists Word, Description and Value, not Offset, Field, Length, and Value.
SATA dialog lists Device Type, Serial Number, and Spec Version, not Protocol Supported
(SSP, SMP, STP)
2. Click the Find DUT button to display all active addresses (see Figure 2.124 on
page 140 ).
