Search Logic
The default setting is Or Selected Items. With this setting, clicking Find Next locates all
selected items in turn. If you choose And Selected Items, you can set a logical AND
combination of items to find. Both options allow setting Advanced search features.
Search For
Choose a category to search in the Search For window. Each of the search categories
offers additional choices in the Search Items window to refine the search. Check items for
the selected category.
Data Pattern
Search for Data Pattern allows you to search for a specific Data Type, Pattern, and Length
(see
Figure 3.95 on page 279 ).
 Data Pattern Only
 Data Payload Length Only
 Data Pattern and Data Payload Length
Advanced options
Some of the Search For categories offer advanced options for search. To set these options,
highlight the search item in a category and click the Advanced button to open the
Advanced options dialog.

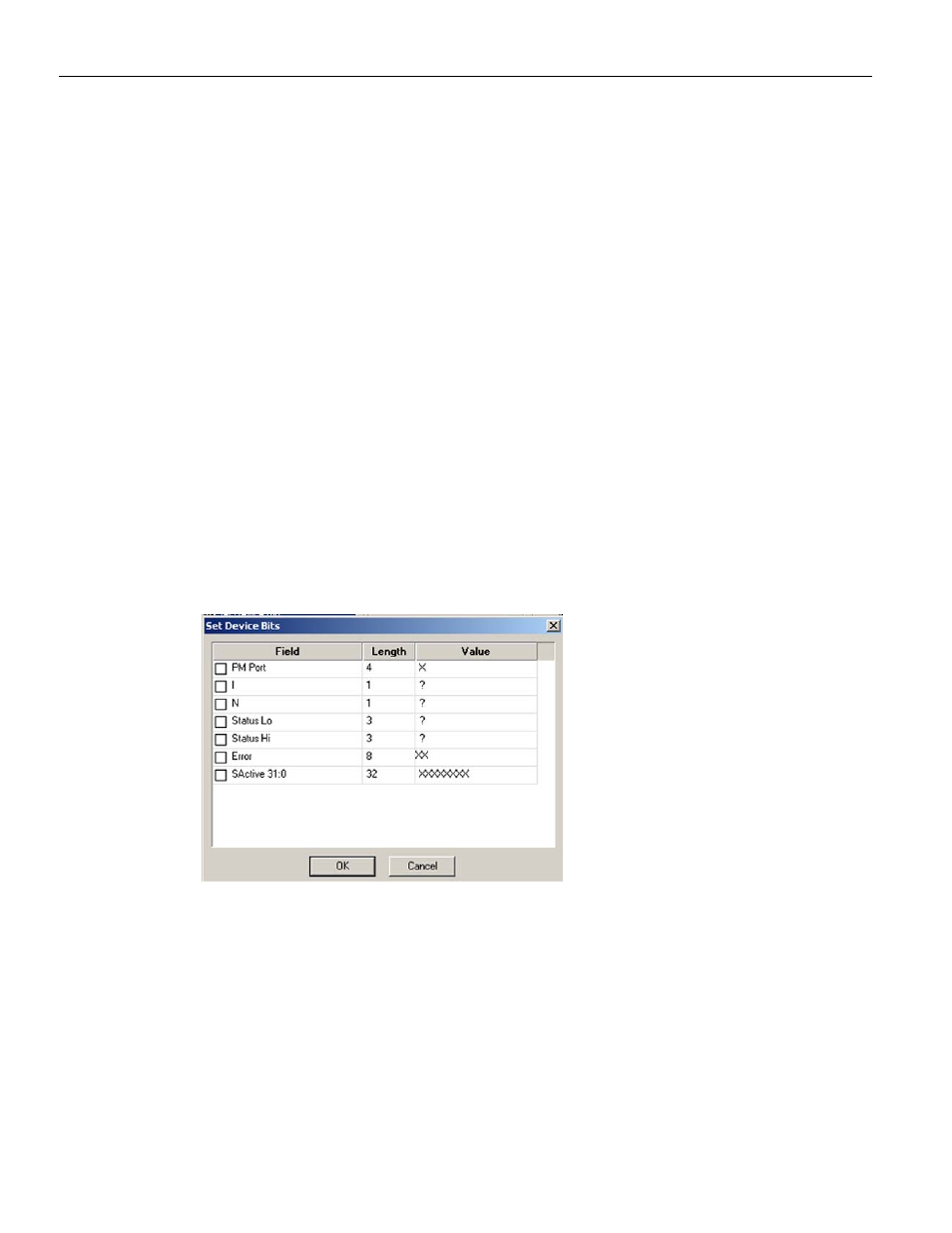

Figure 3.97: Advanced Options Dialog Example: Set Device Bits
Set the options and click OK.
Search Domain
Click the Domain button and choose a search domain from all ports or a specific port.
Protocol Error
You can refine the search to locate packets with an error or without an error.
