Defer Handshake Errors
Check Defer Handshake and enter a value for the time to defer the handshake.
Primitive
Check Insert Primitive then click the down arrow on the Primitive drop down combo box
and choose a primitive.
Terminate receiving frame
Check Terminate receiving frame and choose the termination condition.
2.6.8 SATA Signature (SATA only)
Click the SATA Signature icon in the Errors window to display the SATA Signature dialog.

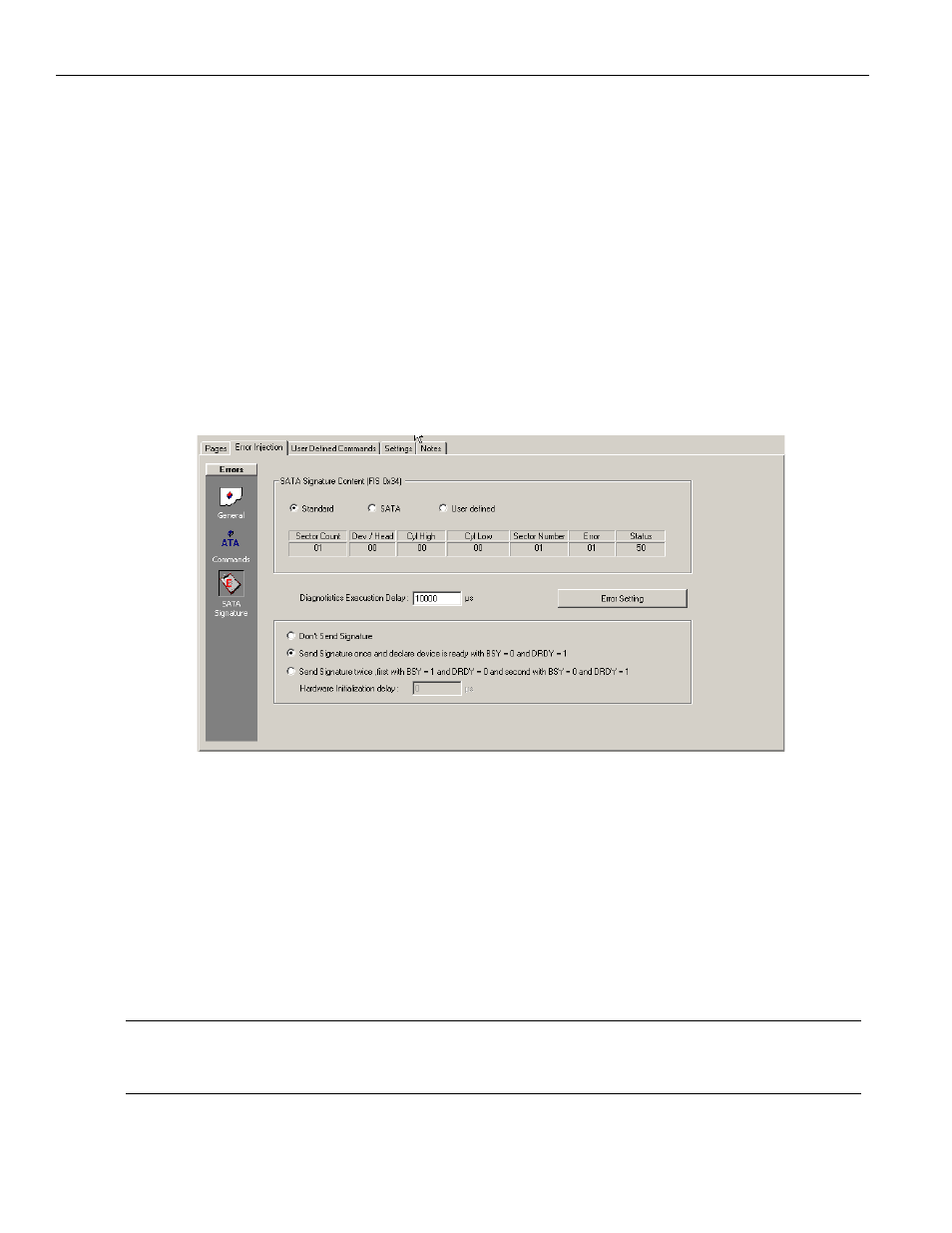

Figure 2.191: SATA: SATA Signature Dialog
Choose SATA Signature Content
Choose either the pre‐defined Standard or SATA. Alternatively, you can define your own
signature by checking the User Defined option button and then entering values in the
enabled fields.
Specify when to send Signature
You can choose from Don’t Send Signature, Send Signature once and declare device is
ready with BSY=0 and DRDY=1, or Send Signature twice, first with BSY=1 and DRDY=0 and
second with BSY=0 and DRDY=1, by checking the corresponding option button.
Note: If you choose Send Signature twice, first with BSY=1 and DRDY=0 and second with BSY=0 and
DRDY=1, the system enables the Hardware initialization delay text box, allowing you to set the
hardware initialization delay.
