456 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
5.11.7 Generation Options
Use the Generation Rules to set triggers and filters.
To display the Generation Options dialog, select Generate > Generation Options or click
the Setup Generation Options button.

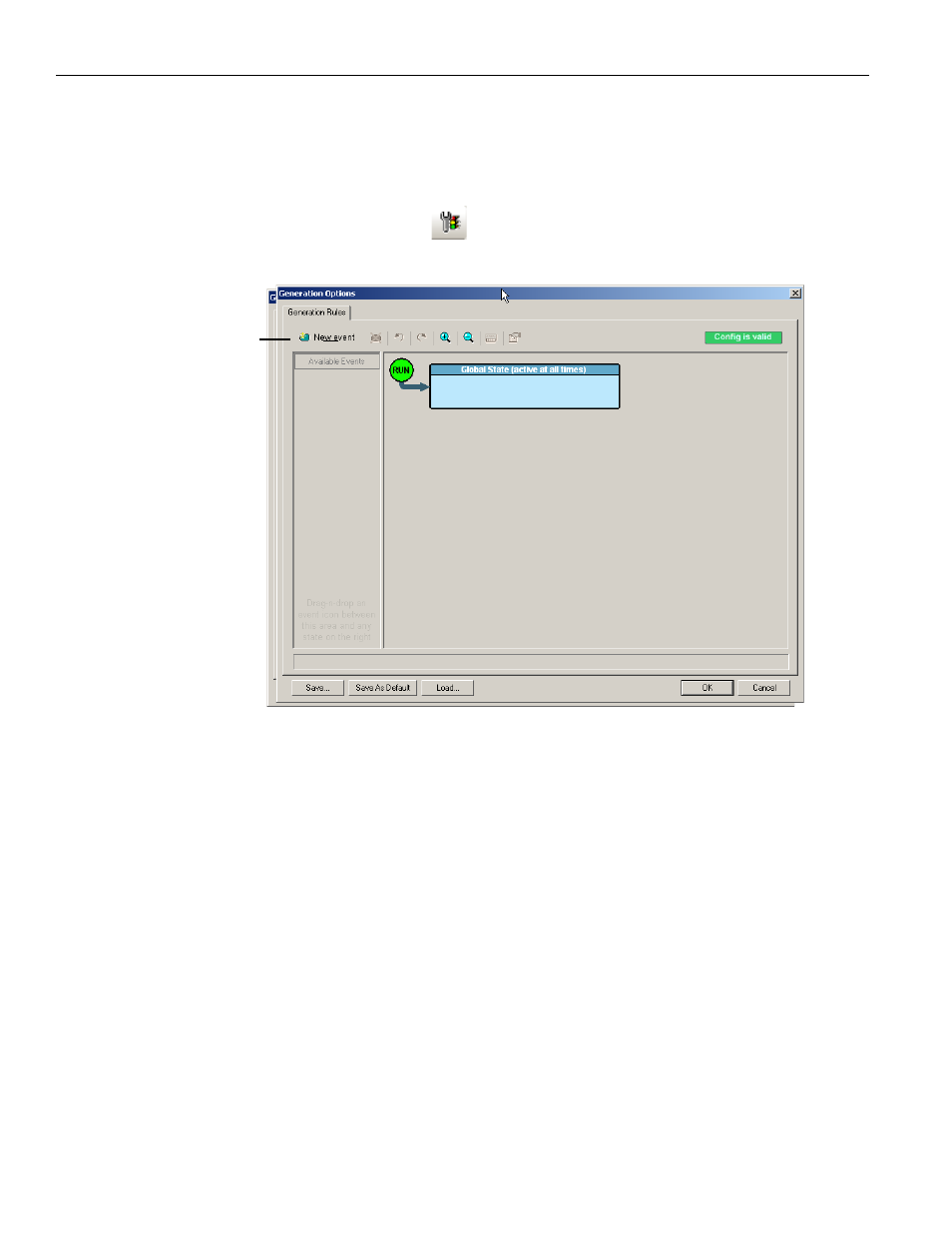

Figure 5.18: Generation Options Window
The page has the following areas:
 Toolbar: Contains buttons that control the Generation Rules page.
 Available Events Area: Area where you can park Event buttons that you intend
to use in the Main Display area.
 Main Display Area: Area where you configure trigger and filter rules. You config‐
ure rules by dragging Event buttons from the Available Events area and then
assigning actions to those buttons.
 Config Status Indicator: A button that indicates if the rule is valid or invalid. If a
trigger or filter rule is configured correctly, the button is green and indicates
Config is Valid. If a rule is not configured correctly, the button is red and indicates
Config is Invalid.
Pop‐Up Menus: When you right‐click a button or area in the Generation Rules page, a
context‐sensitive pop‐up menu appears that lets you do operations that relate to that
button or area.
Main

Display

Area
Config
Status
Indicator
Available

Events

Area
Toolbar
