Teledyne LeCroy Port Configuration for InFusion
342 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
To record traffic both before and after the InFusion modifies (jams) it, select 
Analyzer/Jammer/Analyzer on the port that you want to jam. In the following figure,
there is a match on Port3.

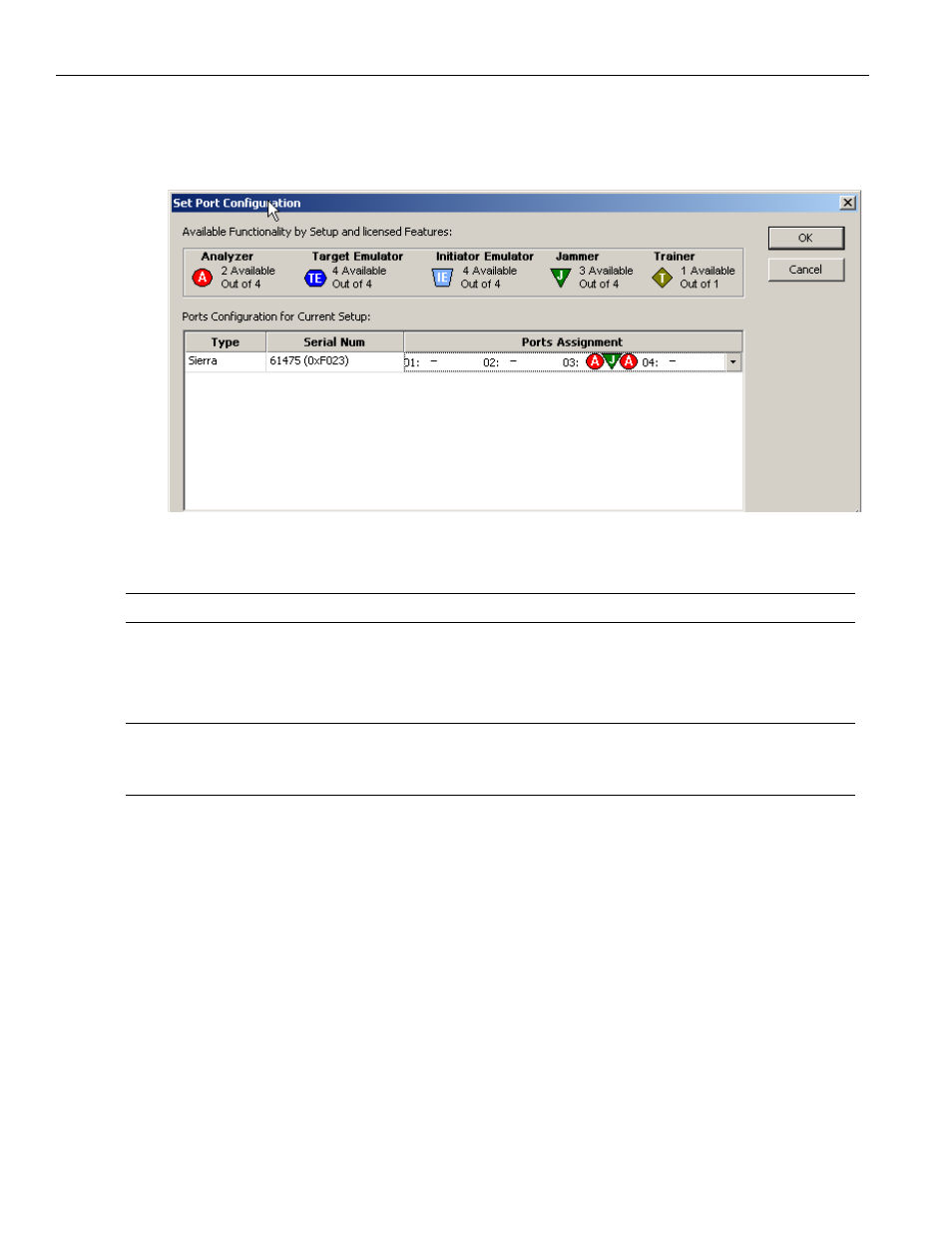

Figure 4.7: Ports Configuration Dialog with InFusion/Analyzer Port Match
Note:
You can select only one Jammer port at a time with this configuration.
To record traffic from two ports after the InFusion modifies (jams) them, select a
combination of ports that have Jammer/Analyzer specified under them. The different
configurations accommodate different possible user setups and requirements.
Note:
To display the current Port Configuration, click Show Analyzer to go to the analyzer application,
then click the green button in the lower right corner to display the Port Status window (see
“Port Status” on page 294 ).
Important Information for Jammer and Analyzer
Jammer intercepts and delays traffic on both directions simultaneously, so Host sends to
Jammer, Jammer delays and sends to Host, Device sends to Jammer, Jammer delays and
sends to Device. However, Jammer modifies traffic in one direction only: from Host to
Device, or from Device to Host.
When using Jammer and Analyzer, the Select Port Configuration dialog has options JA as
shown in
Figure 4.8 .
