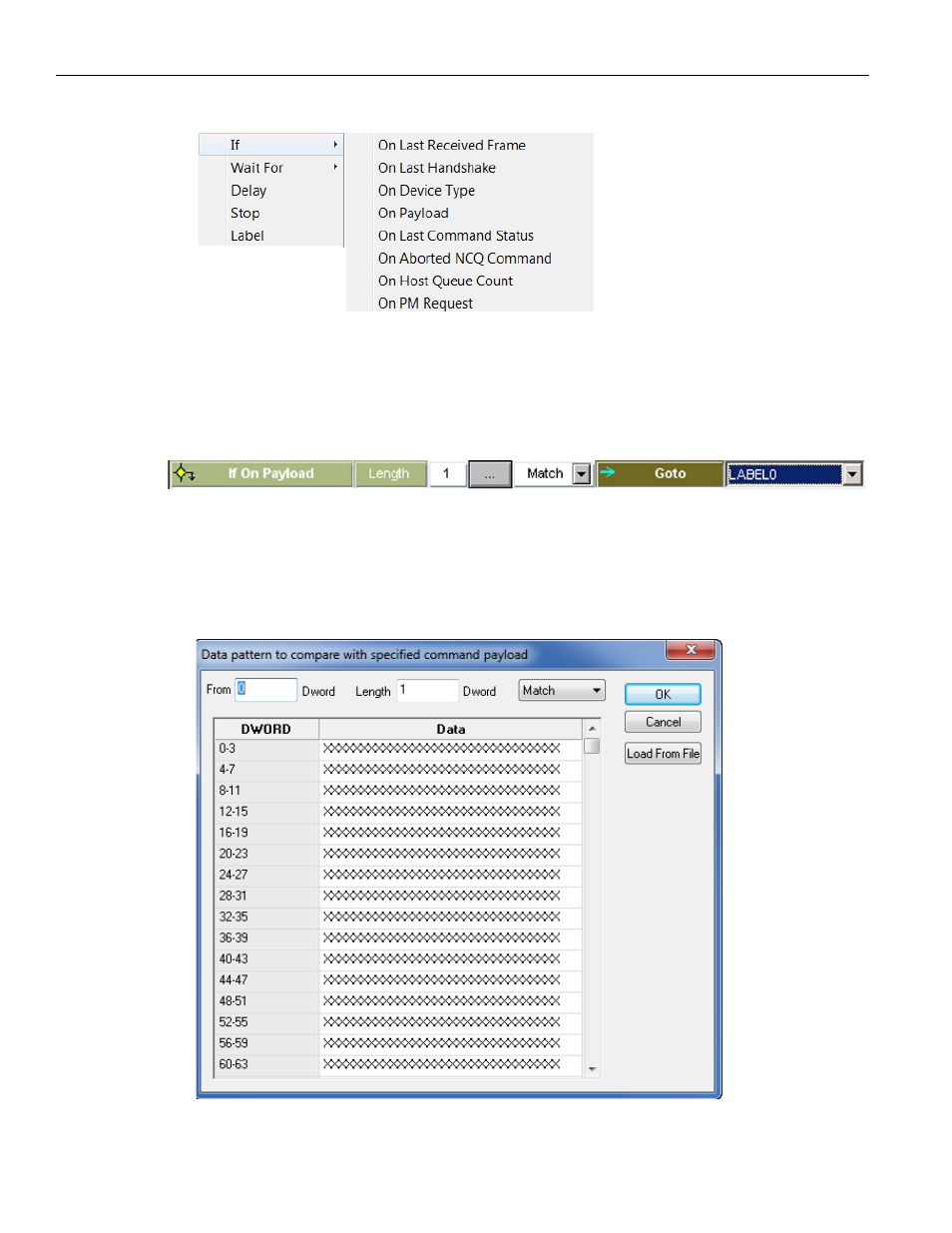

Figure 2.110: If
Then click the down arrow on the If Drop‐down combo box, choose the condition for the
jump and then the down arrow on the Goto Drop‐down combo box, and choose the label
to designate the destination of the jump.
Figure 2.111: If on Payload
For commands with incoming payloads, you can specify patterns for a condition by
clicking the options button on a payload instruction and defining pattern(s). Click Load
From File to display the Select Data File dialog to load a large data pattern from a file.
Figure 2.112: Specify Patterns
