Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

69

SAS/SATA Software Menus and Toolbars

Teledyne LeCroy

Primitive

Double‐click Primitive (available only if you check Exclude Patterns) to open the Primitive
selection dialog.

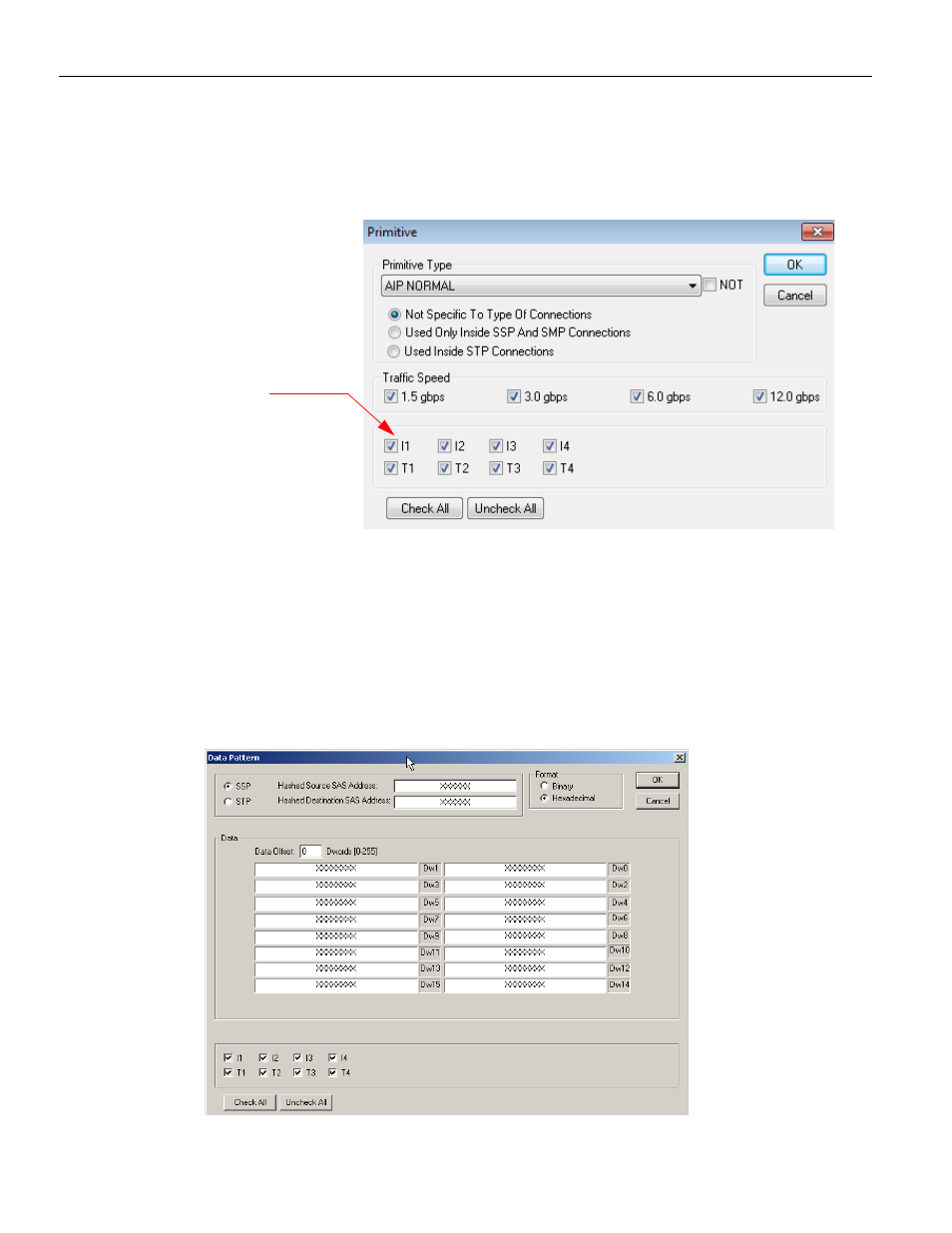

Figure 2.19: SAS: Primitive Dialog

SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.

Click the down arrow next to the Primitive Type drop‐down list, choose a Primitive to
exclude, and click OK. Repeat for additional Primitives.

Data Pattern

Double‐click Data Pattern to open the Data Pattern definition dialog.

Figure 2.20: SAS: Data Pattern Dialog

Port ID.
