SAS/SATA Software Menus and Toolbars

100

Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

SAS vs. SATA: Not available in SAS.

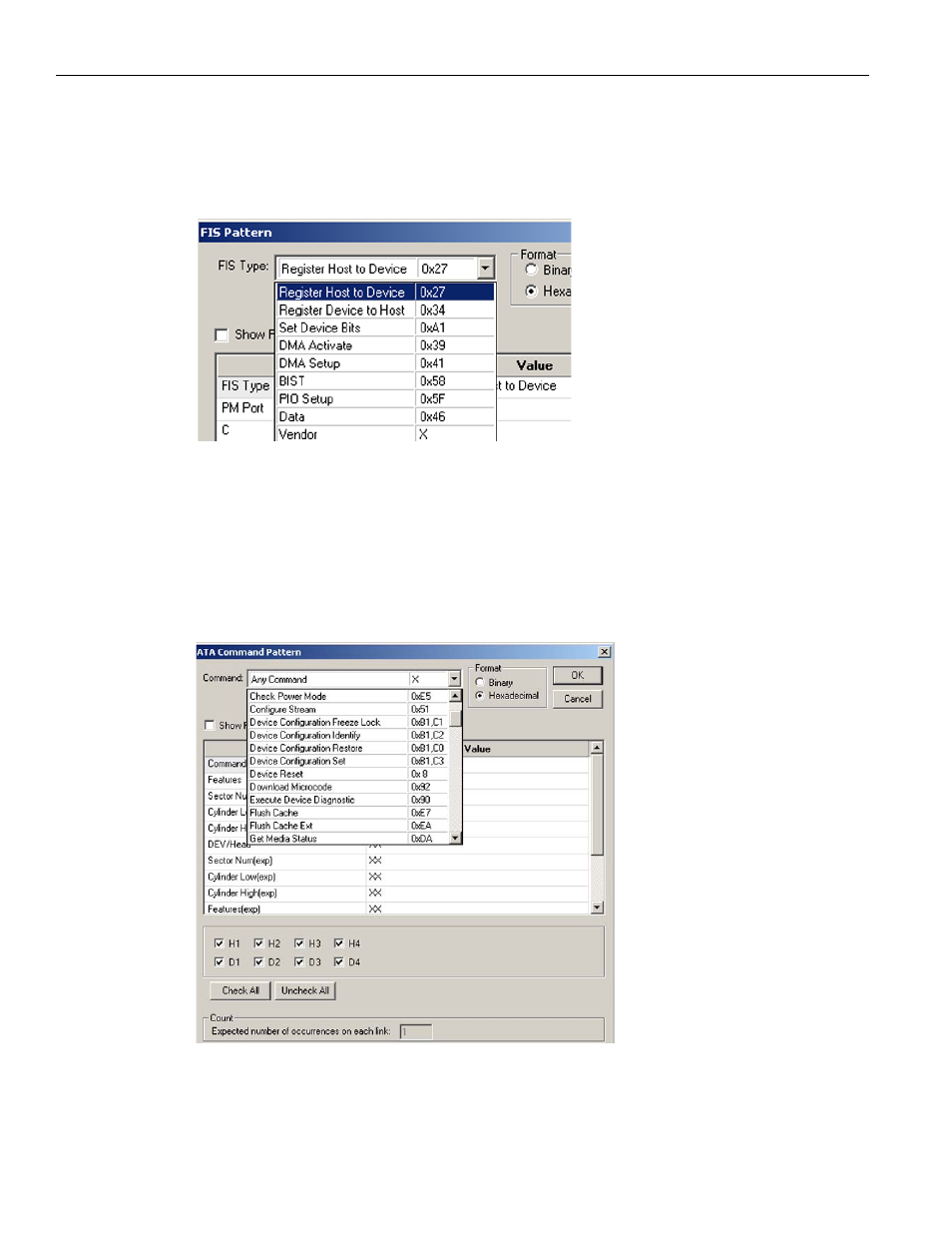

The FIS Pattern dialog opens with the default FIS Type as Register Host to device. To
choose another available FIS Type, click the down arrow next to the FIS Type list box.

SATA: FIS Pattern Dialog Choices

SAS vs. SATA: Not available in SAS.

Choose a FIS Type and complete the corresponding dialog.

ATA Command Pattern (SATA only)

Double‐click ATA Command to open the ATA Command Pattern selection dialog.

Figure 2.64: SATA: ATA Command Pattern Dialog

Click the down arrow next to the Command list box, choose an ATA command, and click
OK.
