Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 225
Analysis Teledyne LeCroy

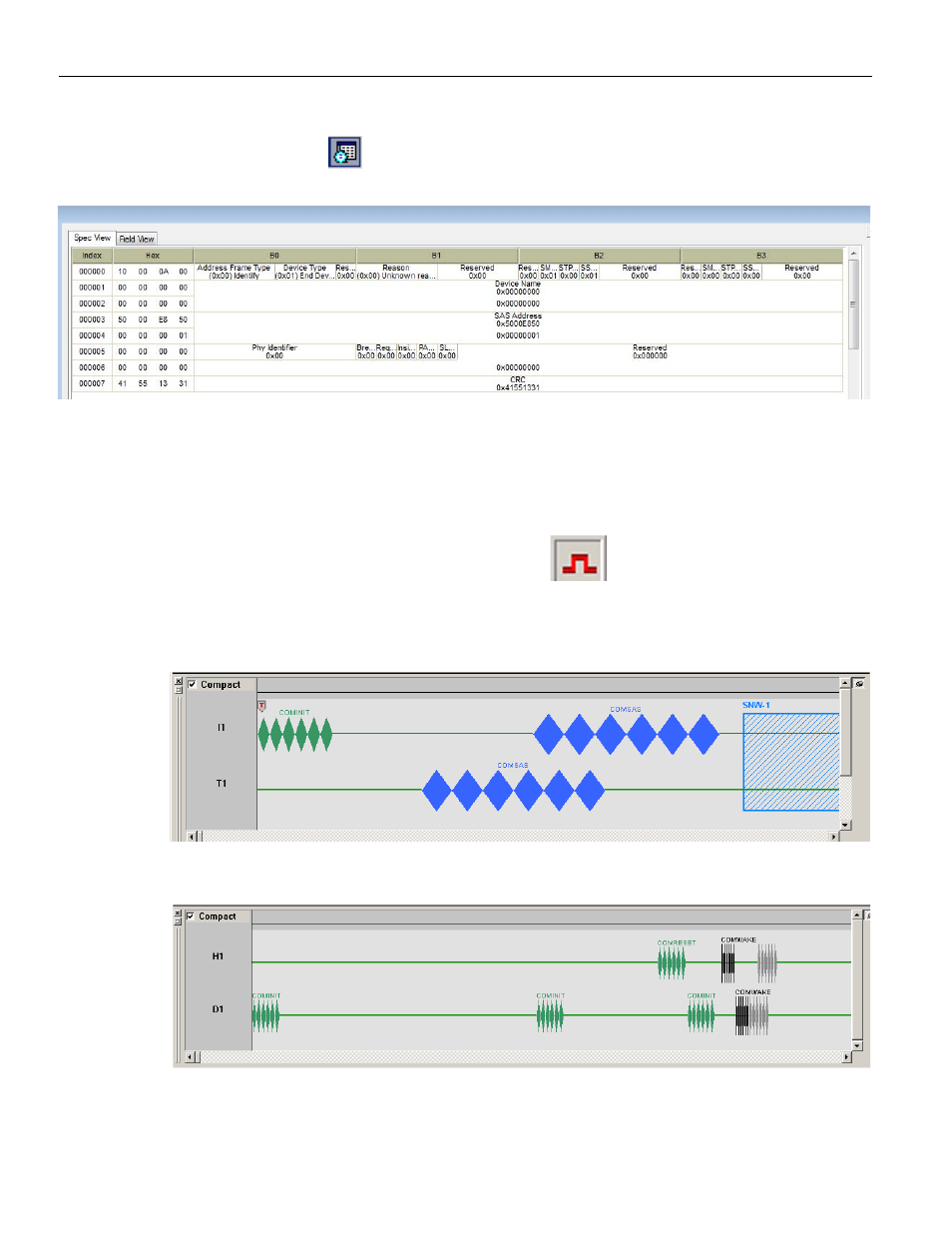

To open a Frame Inspector View of the current capture, select View > Frame Inspector
View or click the button on the View Type toolbar.
Figure 3.19: Frame Inspector View
3.3.9 Waveform Display
You can enable a waveform display for all active ports, and perform timing
measurements, by positioning timing cursors within the waveform display.
Select Analysis > Wave Form View or click the Show/Hide Waveform button on
the toolbar to enable the waveform display (see Figure 3.20 on page 225 ).
The Compact View shows the OOB Sequence with speed negotiation.
Figure 3.20: SAS: Waveform View
Figure 3.21: SATA: Waveform View
