Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 383
Creating a Sequence Teledyne LeCroy

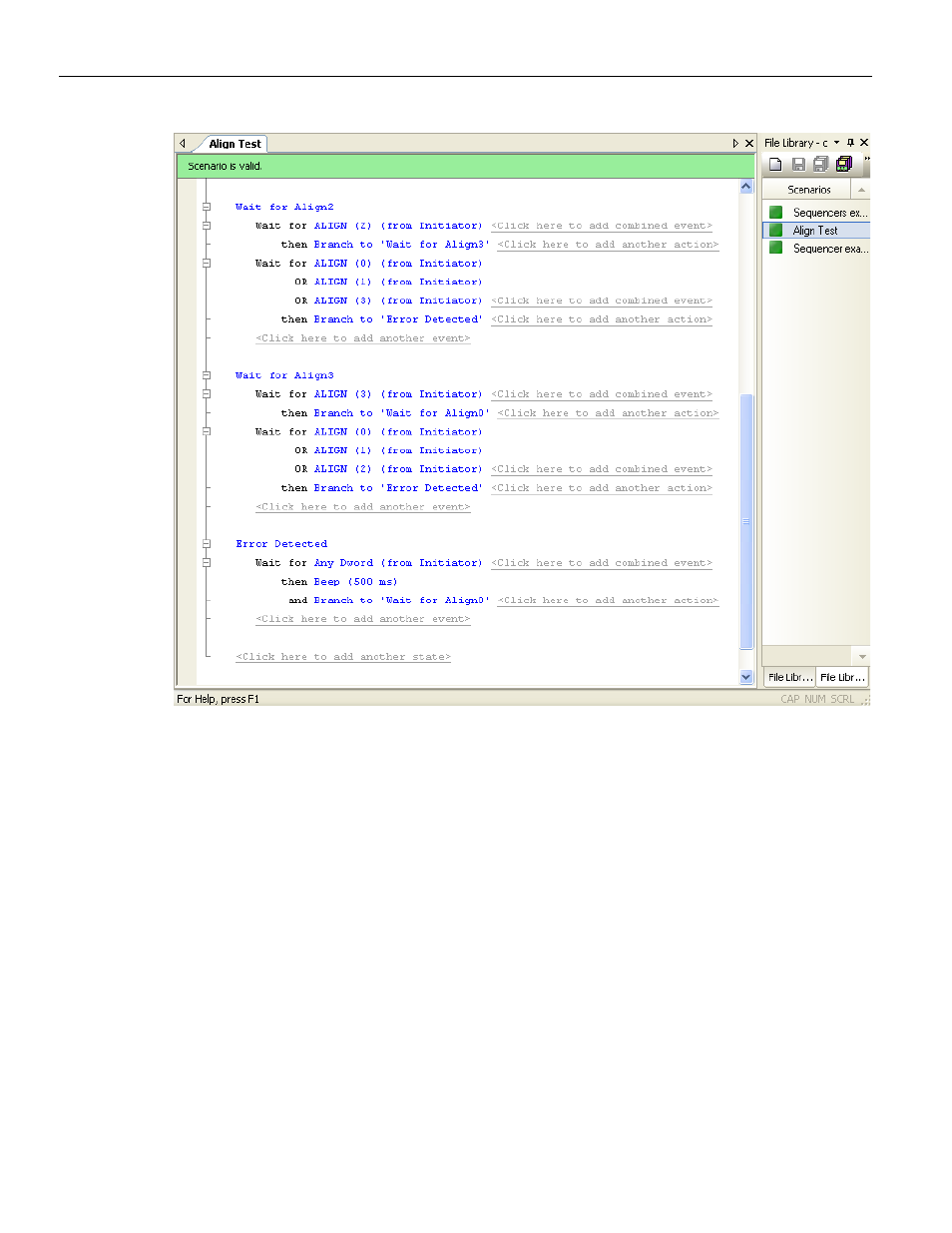

Figure 4.46: Example 8: Bottom Half of Scenario
4.10.3 Example 9: Creating a Sequence With Many States #2
In this example, a five‐state sequence not only detects if a group of primitives is received
out‐of‐order, but it fixes any incorrect order. The logic is similar to that of example 8 with
a few small changes. The following table summarizes each state.
