Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 217
Analysis Teledyne LeCroy

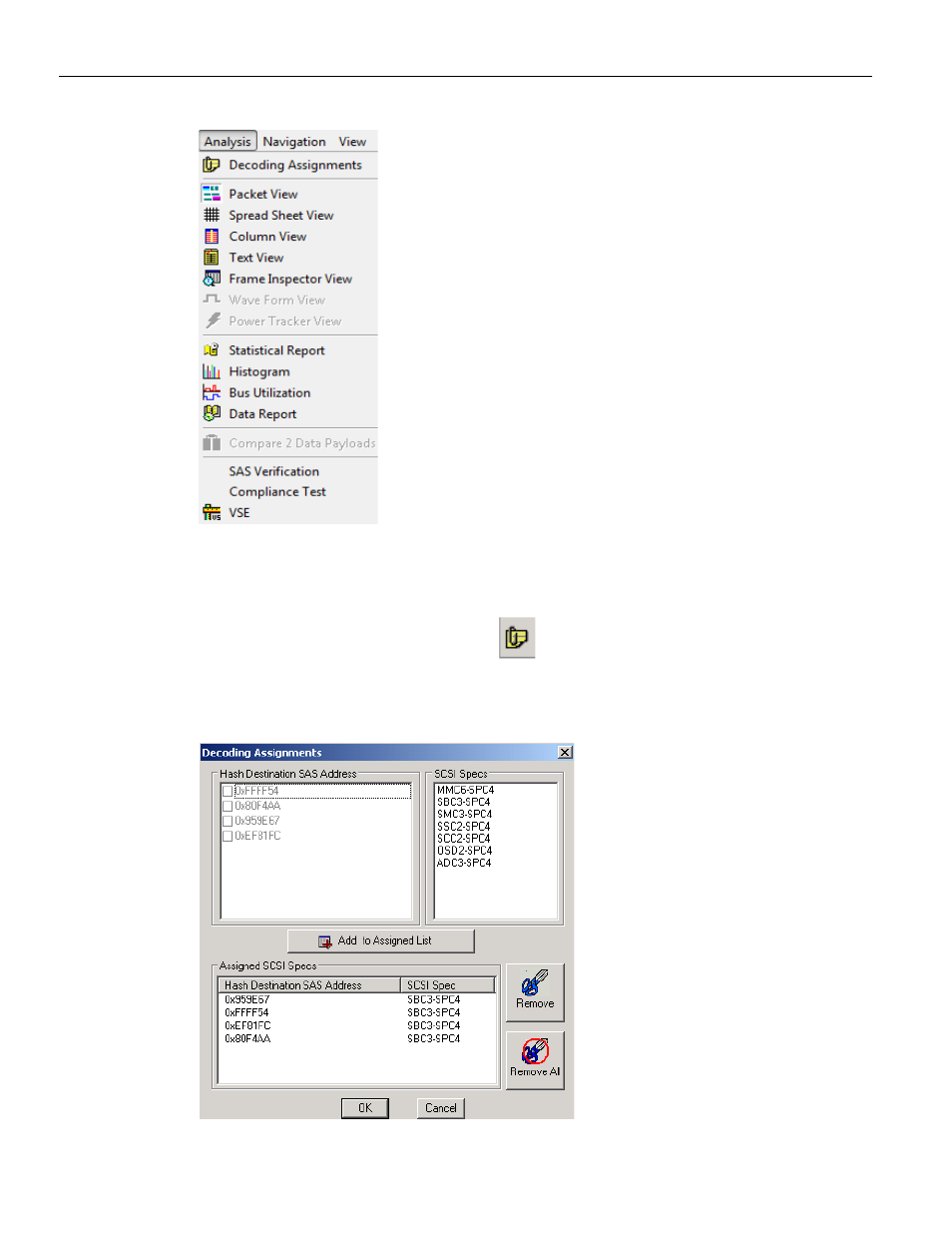

Figure 3.5: SAS/SATA Analysis Menu
3.3.2 Decoding Assignments
Click on the Decoding Assignments icon to display the Decoding Assignment dialog.
Check a Hash Destination SAS Address checkbox to select it and select a SCSI Spec(s).
Click the Add to Assigned List button to decode. Select a spec and click Remove it or click
on Remove All to remove all the specs.
Figure 3.6: Decoding Assignments Dialog for SAS
