Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 57
SAS/SATA Software Menus and Toolbars Teledyne LeCroy

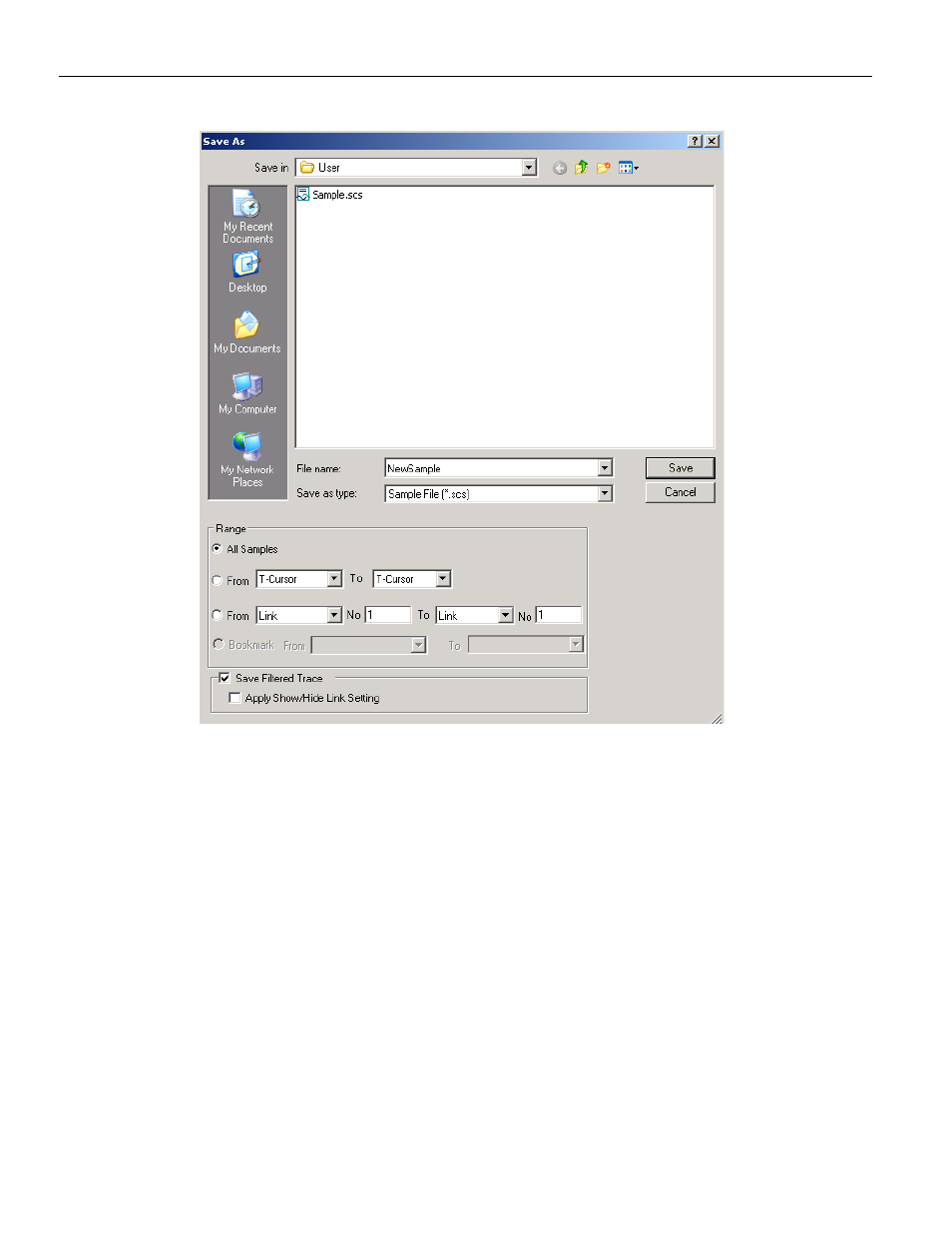

Figure 2.7: Save As Dialog
You can limit the range of the saved file. You can save:
 All Samples
 Range between selected cursors
 Range between selected Idle, link, commands
 Range between bookmarks
The Save Filtered Sample checkbox saves a trace file without filtered data. The Apply
Show/Hide Link Setting checkbox filters the saved data further by also applying the
current status of the port buttons of the toolbar.
2.2.9 Exporting
From the File menu, you can Export to Text/Excel, Export to Initiator Emulator, Export to
Trainer, Export Read‐Write Command Report, or Export Paired SAS Address Report.
