Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 43
Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars Teledyne LeCroy

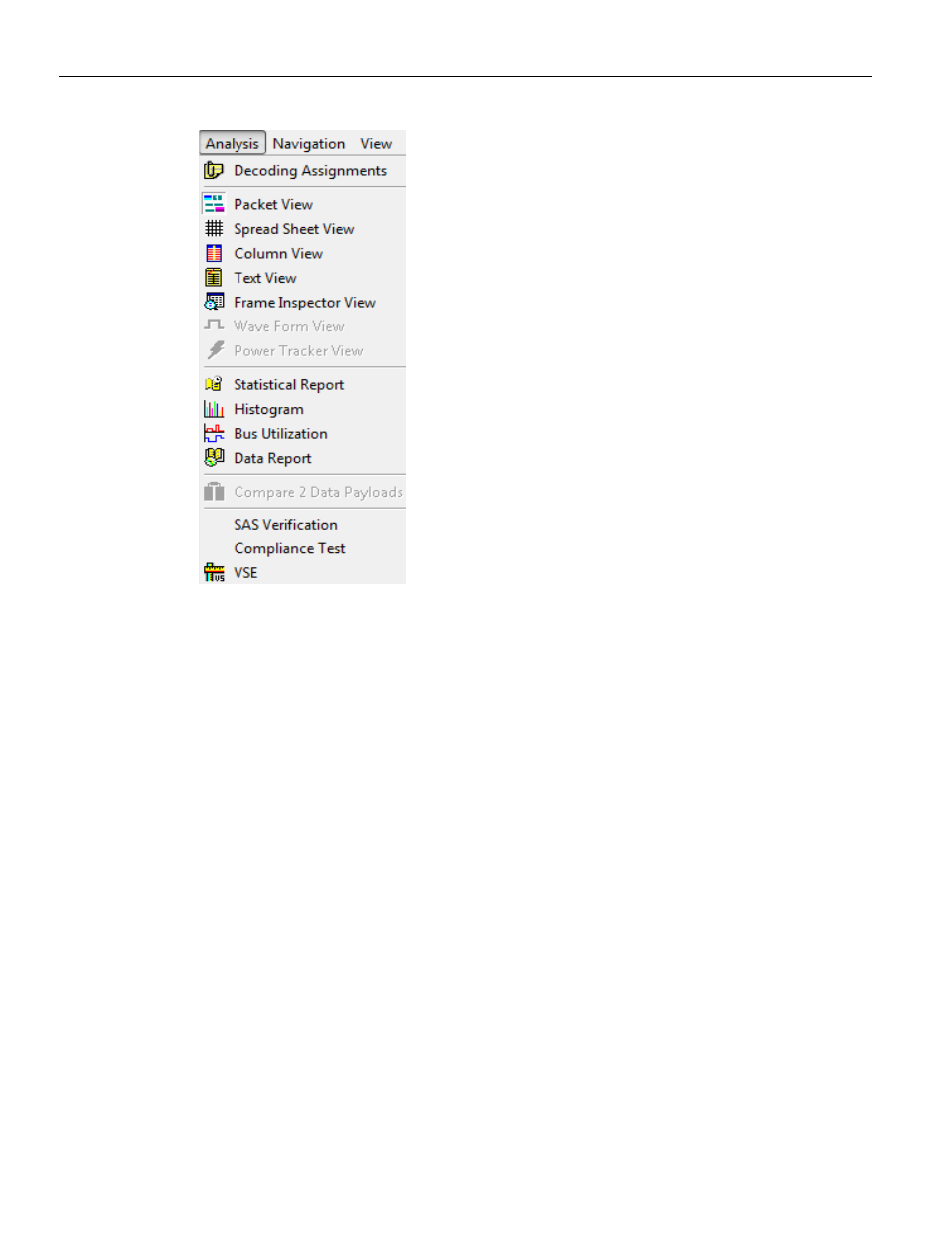

Figure 1.28: SAS/SATA Analysis Menu
1.22.5 Viewing Captured Data
Captured data can be displayed in several views. Select Analysis from the drop‐down
menu to access the different views (see
“Analysis” on page 216 ). You can display the same
data in:
 Packet View: Displays packets
 Spreadsheet View: Displays Packet View fields by time
 Column View: Shows DWORDs in columns by port
 Text View: Shows transaction frames, grouped in columns by port
 Frame Inspector View: Has lots of information that is available in Packet View,
but not Spreadsheet View, so it is most useful in conjunction with the Spread‐
sheet View.
 Waveform Display: Shows waveform display for all active ports, on which you
can perform timing measurements
 Statistical Report: generate statistics for all transports, commands, primitives,
bus conditions, addresses, lanes, and errors
 Histogram View: Shows frame‐type transfers
 Bus Utilization: Displays the utilization of the bus
 Data Reports: Displays data payloads
 Compare 2 Data Payloads: Compare two data payloads
 SAS Verification: Verifies compliance with the SAS specification
 Compliance Test: Verifies compliance with the SATA specification
 VSE: Perform custom post‐process analysis of the open trace by running a verifi‐
