SAS/SATA Software Menus and Toolbars

118

Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

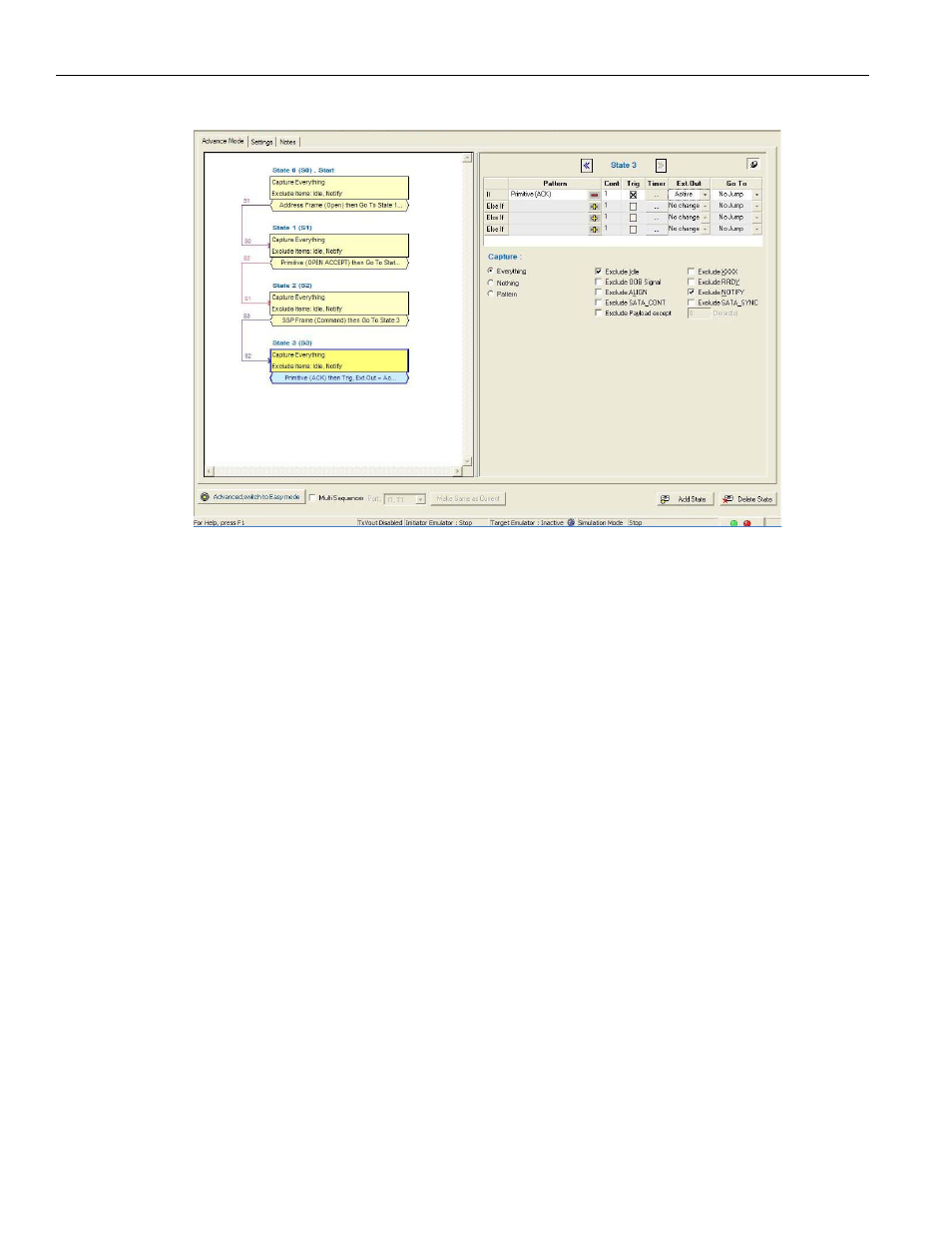

Figure 2.82: SAS: Advanced Trigger with Multiple Branches

State Number for Complex Trigger Sequences

To follow the path of complex trigger sequences, you can display state numbers in a
trace.

To see state number, in Packet View right‐click a link layer packet, show field, and select
state number.
