Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

295

Toolbars

Teledyne LeCroy

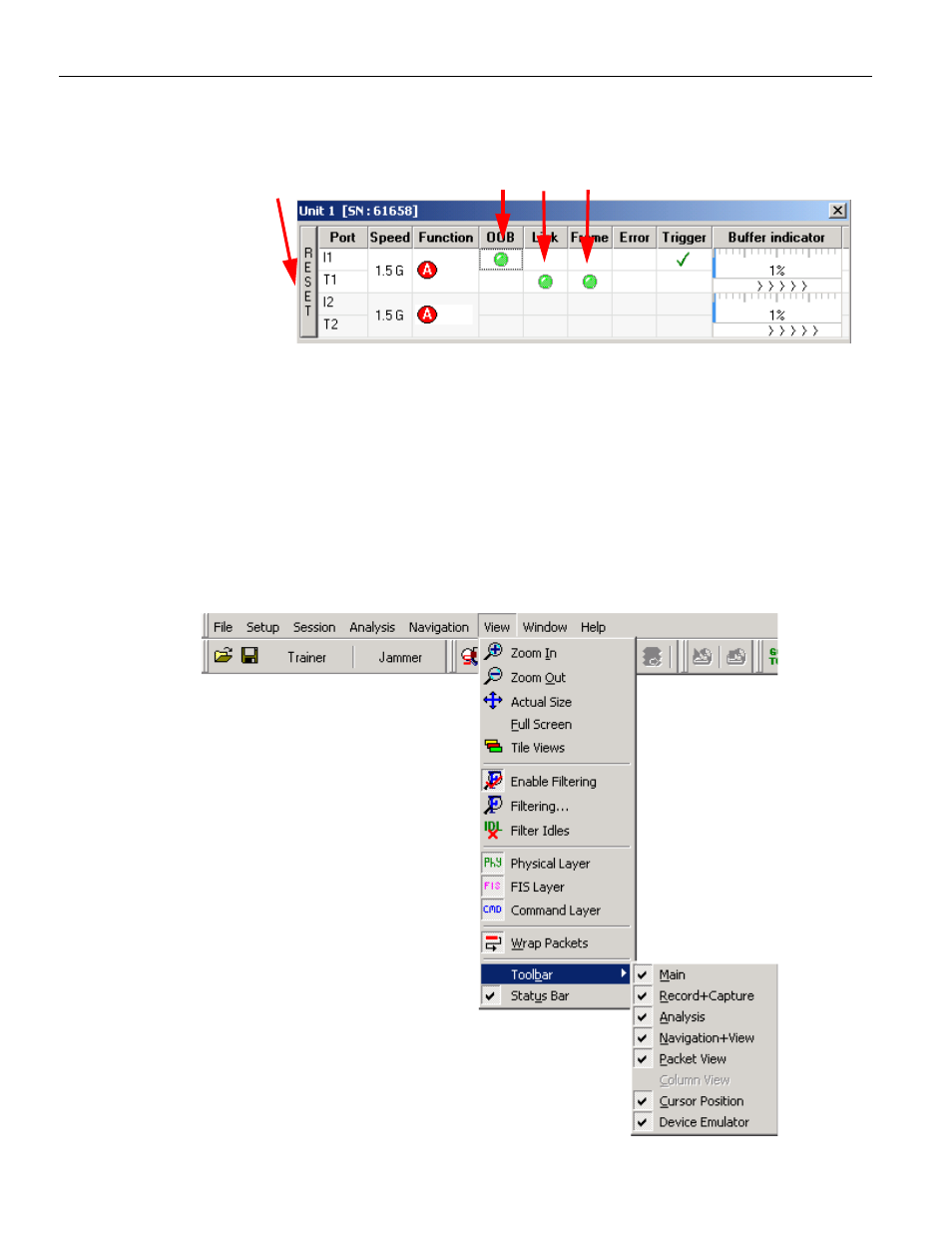

The OOB, Link, Frame and Error LEDs in the Port Status dialog mimic/follow the LEDs on
the Front panel of the unit.

When the LEDs are dim, it indicates they were lit in the past. Pressing the Reset button
erases this history and the illuminated LEDs are removed from the dialog.

3.11 Toolbars

3.11.1

Enabling Tool Bars

To customize the Viewer Display workspace, you can enable and reposition the available
toolbars. To display or hide toolbars, select View > Toolbar, then check or uncheck
toolbars.

LEDs illuminated

Reset button
