SCSI Error and Command Settings (SAS only)

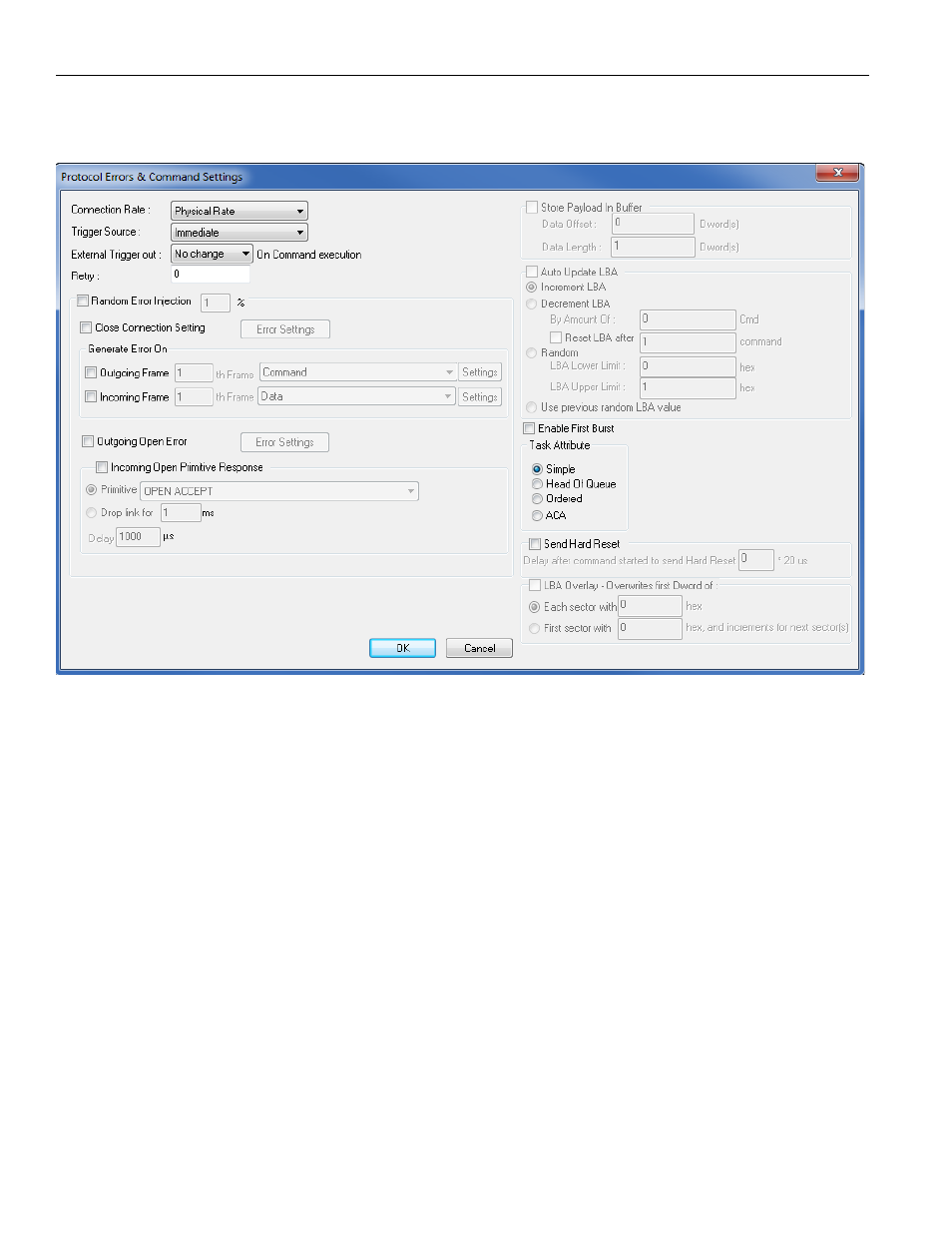

Figure 2.137: SAS: Protocol Error and Command Settings for SCSI Dialog
Connection Rate
Select the Connection Rate to allow a higher speed port to communicate with a lower
speed port: Physical Rate, 1.5 G, 3, or 6.
Trigger Source
Click the down arrow on the Trigger Source combo box, and choose trigger type:
Immediate, Wait for external trig, or Wait for Analyzer trig.
External Trigger Out
Click the down arrow on the External Trigger out combo box to choose the external
trigger level: Active or No change on command execution.
Retry
Enter a value for the number of command retries for failed commands in the Retry text
box.
Random Error Injection
Random Error Injection specifies the probability of Error Injection on the command. The
probability percentage that you select applies to all Error Injection items.
