Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 27
Expandability Teledyne LeCroy

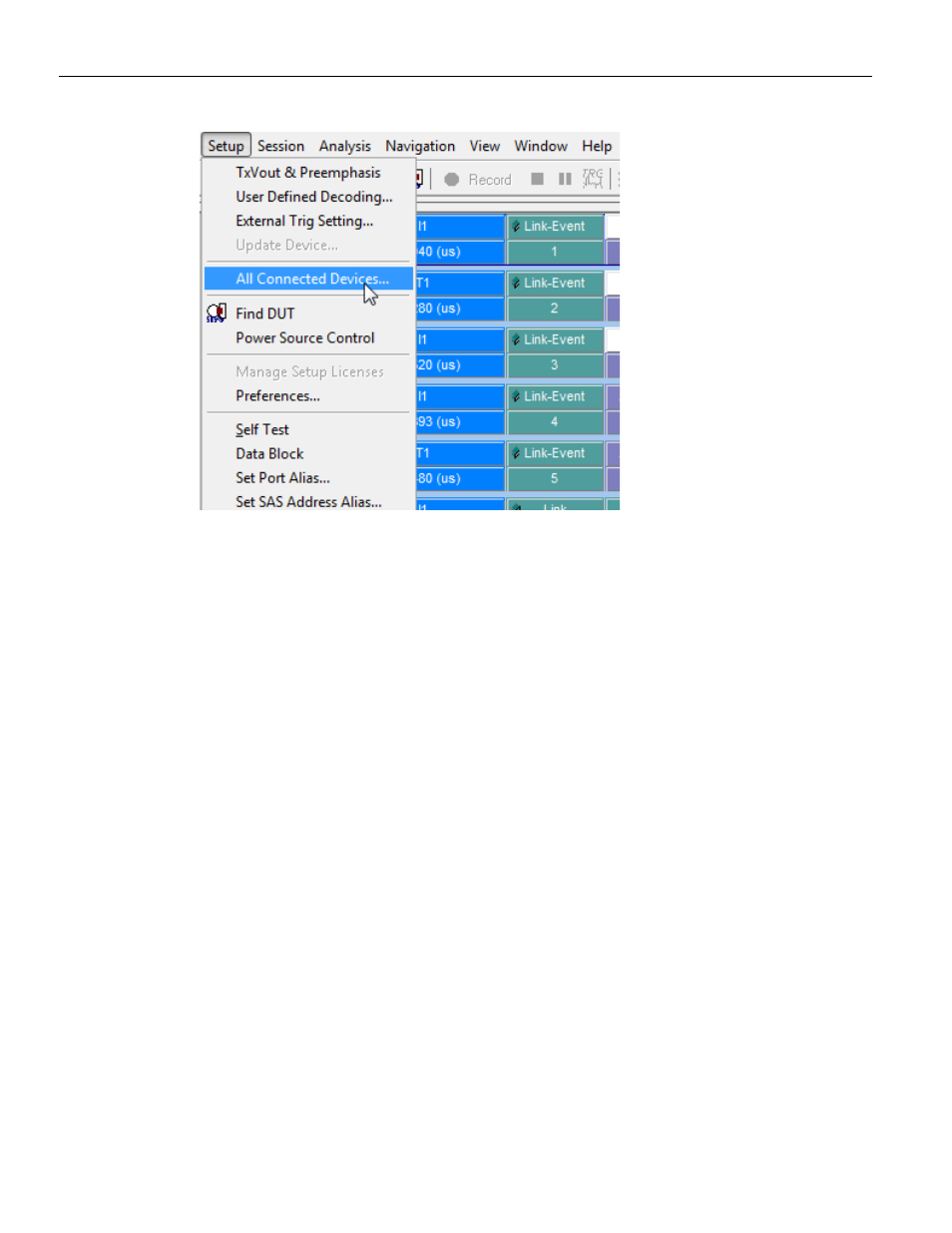

Figure 1.14: Connecting to All SAS/SATA Device(s)
The Select Device dialog allows connecting and disconnecting analyzers on the fly,
without restarting the application.
The new Device List (introduced in version 4.10) mandates using updated firmware in
order to detect the analyzer over Ethernet. Thus, the analyzer must be updated over USB
before it can be used remotely over Ethernet. This is applicable for any update from
version 4.00 or earlier to any version from 4.10 or later.
The following Select Device dialog displays (see Figure 1.15 on page 28 ). The colors in the
‘Location’ column mean the following:
 Red: Firmware and/or BusEngine components need to be updated to the latest
version
 Light Blue: The device is ready to be connected.
 Yellow: The device is locked.
 Green: The software is connected and ready to run.
