Teledyne LeCroy Scenario Actions
362 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
4.8.4 Using Captured Data DWORDs
Captured data DWORDs can be used in creating events for data that match the captured
DWORD(s), or in creating actions to substitute the captured DWORD(s) into the data
stream.
To create an event using the captured DWORD, in the Event Properties menu, select SAS
Data Pattern (or SATA Data Pattern), and then select any of the 12 DWORDs (DWORD 0
Type through DWORD 11 Type). The drop‐down menu provides the choice of a custom
DWORD or any of the four captured DWORDs. If you select a captured DWORD, the Value
field beneath this selection is hidden (the Value field is only used for specifying custom
DWORDs). Note that choice of a mask and an offset are still available when using
captured DWORDs.

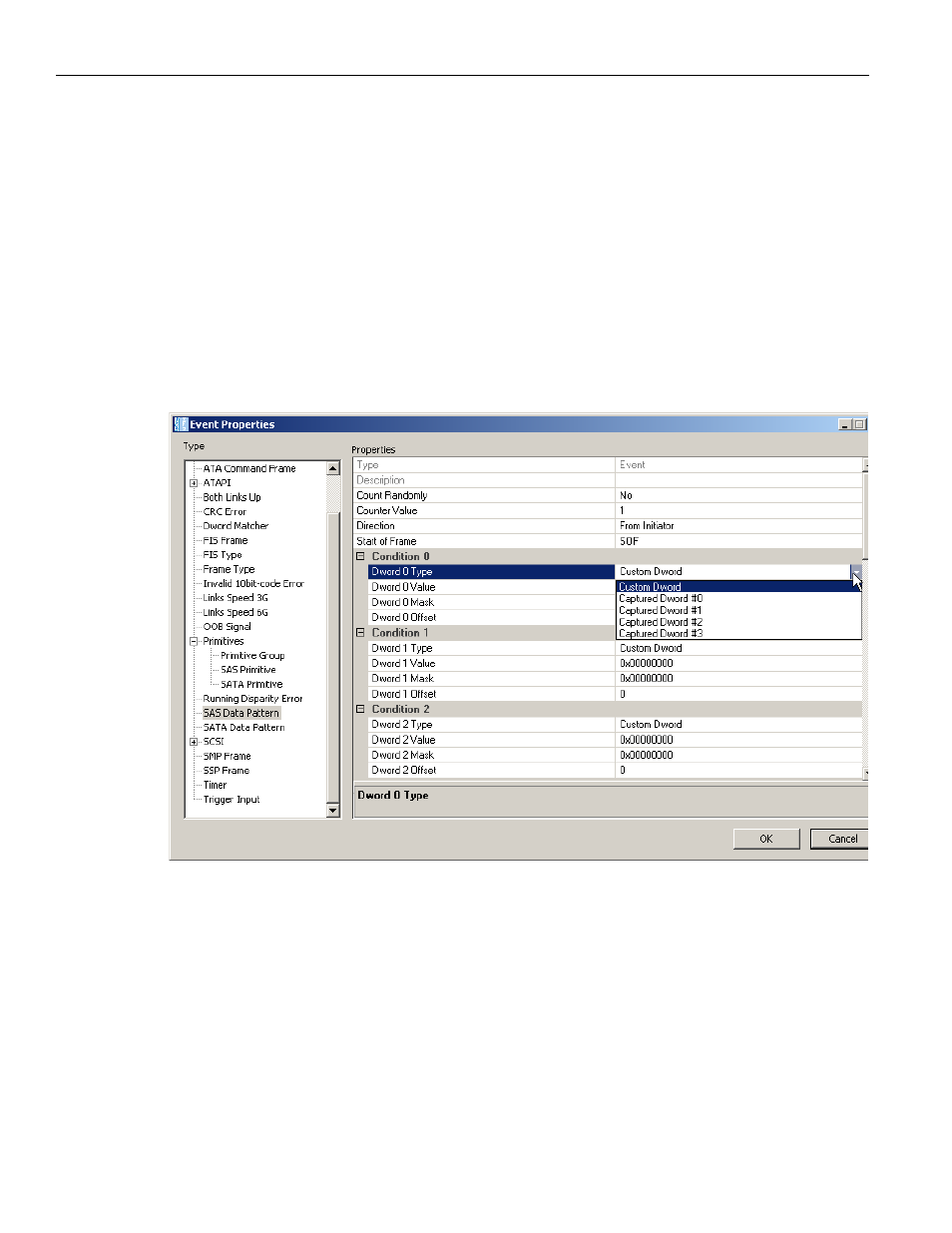

Figure 4.22: Using a Captured DWORD in a SAS Data Pattern
Captured data DWORDs may also be used in the Substitute Data DWORD test state
action. From the Action Properties screen, choose Substitute Data DWORD and then
select the Substitute for property. A drop‐down menu is provided (see
Figure 4.23 on
page 363 ) that allows the choice of a custom DWORD or any of the four captured DWORD
registers.
