Creating a Sequence Teledyne LeCroy
17. You are finished creating the first sequence. Click the add another sequence prompt
to create an area in the scenario for the second sequence (Sequence 1).

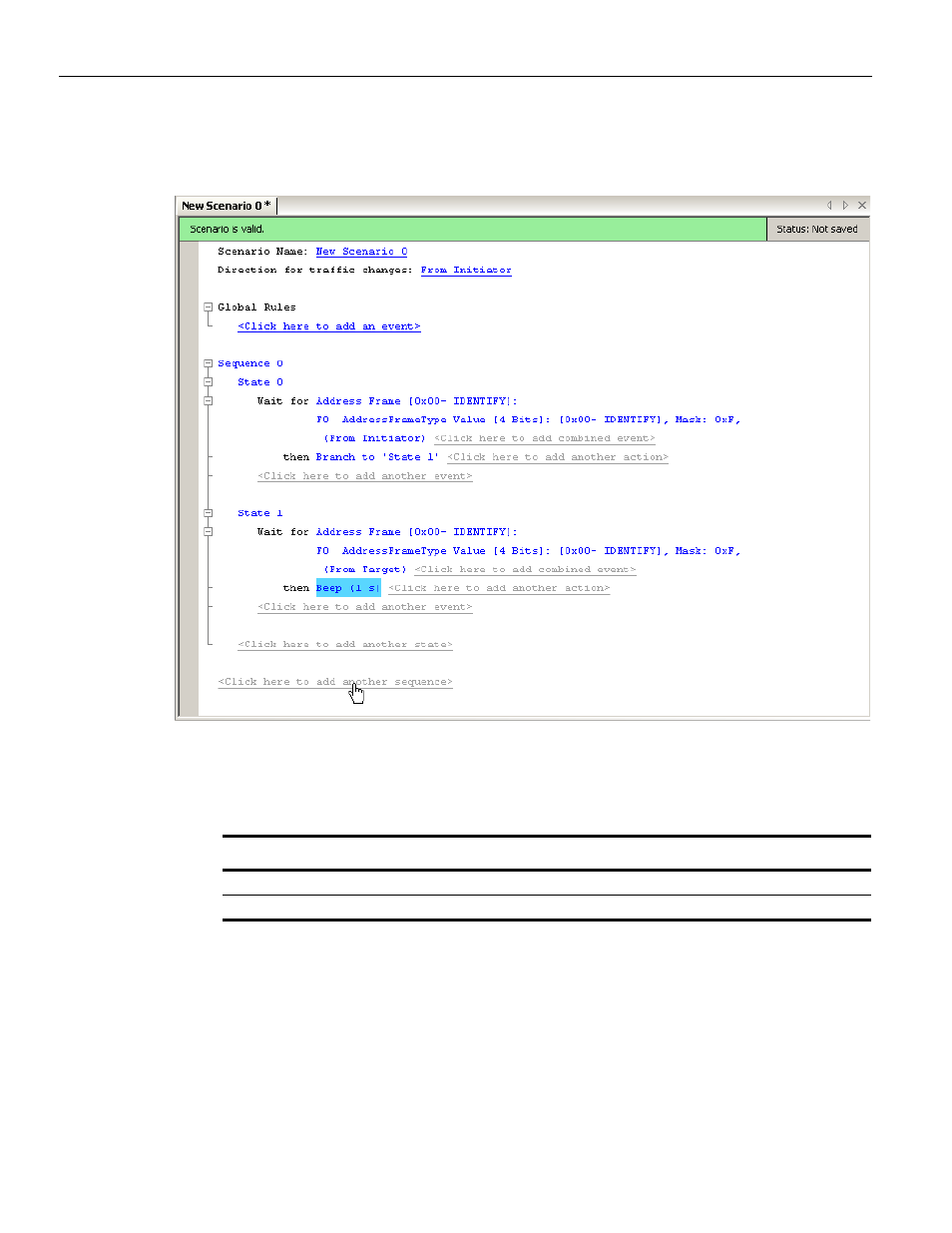

Figure 4.43: Example 7: Adding a Second Sequence
18. Create two states in the second sequence with the characteristics shown in the
following table.
TABLE 4.10: Example 7: States for Second Sequence
State Event Action
0 Address Frame from Target Branch to State 1
1 Address Frame from Initiator Beep for 2 seconds.
