Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 19
Unpacking Your Analyzer Teledyne LeCroy
1.4 Unpacking Your Analyzer
Inspect the received shipping container for any damage. Unpack the container and
account for each of the system components listed on the accompanying packing list.
Visually inspect each component for absence of damage. In the event of damage notify
the shipper and Teledyne LeCroy Corporation. Retain all shipping materials for shipper’s
inspection.
1.5 Analyzer Features
The Analyzer has the following features:
 Power Switch
 Frame, Speed, Link, Error, and Trigger LEDs
 External Trigger Input and Output
 Initiator and Target mini‐SAS connectors (4)
 Expansion In/Out data ports and Clock In/Out connectors
 Status and Configuration LCD Display
 USB port for host machine connectivity
 Gigabit Ethernet port for network connectivity
 Power In (on back)

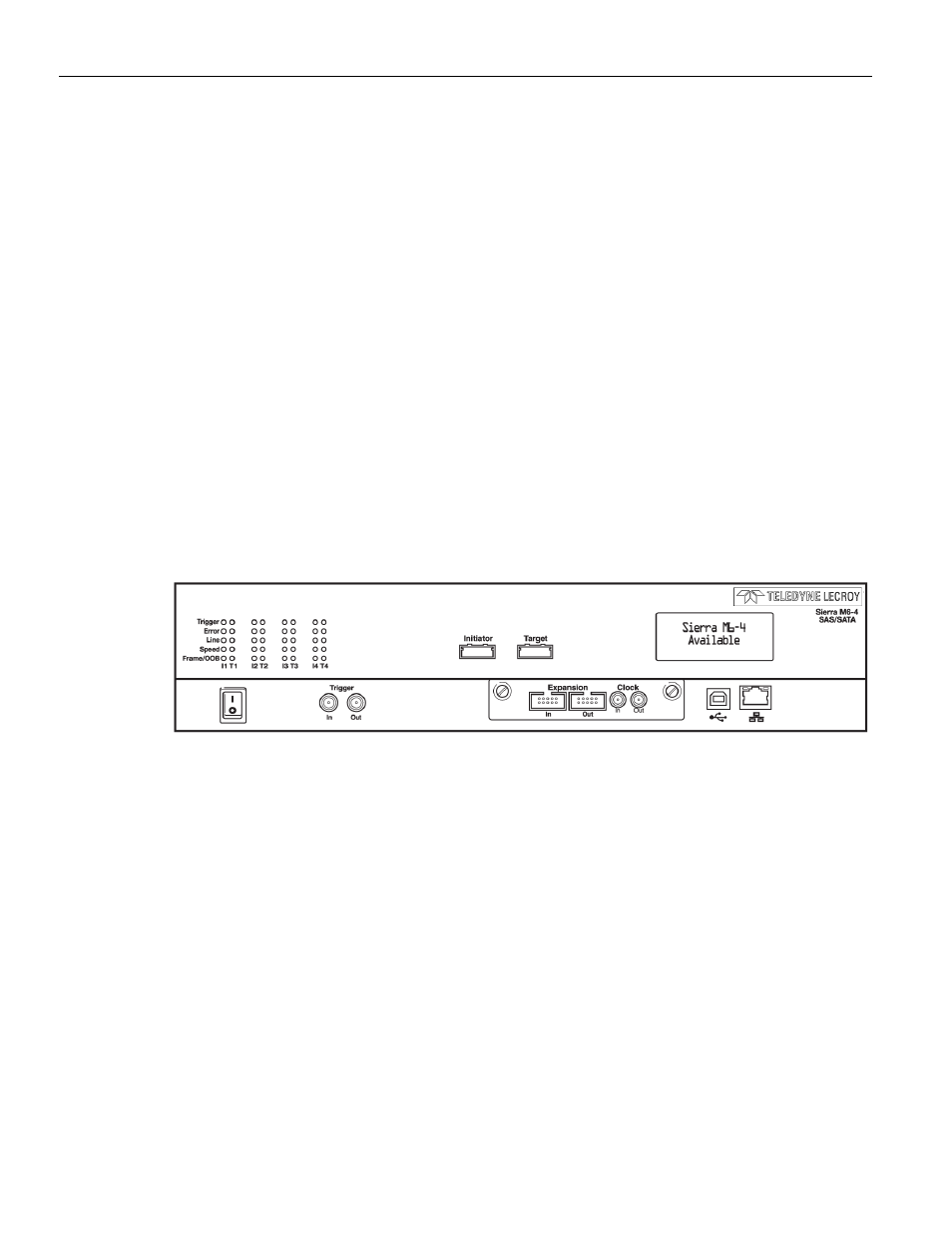

Figure 1.2: Front Panel
1.6 LEDs
Each link is supported by LEDs with the following functionality (see Figure 1.3 on
page 20 ):
GreenThis LED is illuminated during the OOB (Out of Bound) sequence before the link is
established and after link is established it indicates traffic on the bus.
Orange This LED is illuminated as follows:
Speed Initiator Target
1.5G Off Off
3.0G On Off
6.0G On On
Yellow This LED is illuminated when a link is established.
Red This LED illuminates when an error occurs.
