Teledyne LeCroy SAS/SATA Software Menus and Toolbars
64 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

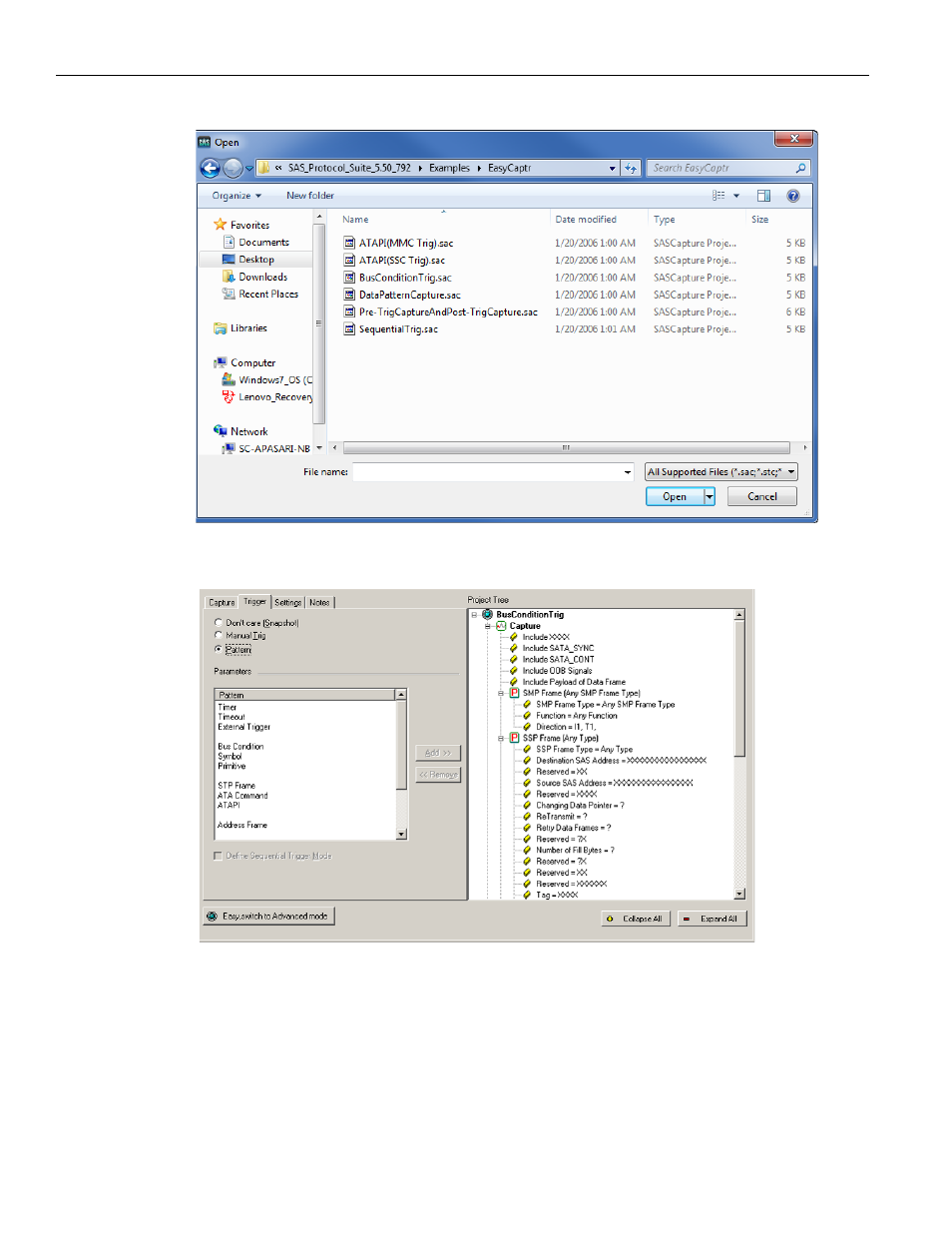

Figure 2.13: File Open Dialog
Figure 2.14: SAS: Sample Protocol Analysis Project
SAS vs. SATA: For Pattern Parameters, SATA Dialog adds FIS, FIS Pattern, and ATA
Command Pattern and does not have STP Frame, SSP Frame, SMP Frame, and Address
Frame.
4. Click the Record button to execute the pre‐defined example.
5. After the project runs, you see an analyzer trace capture display similar to the one
shown in Figure 2.15 on page 65
