Emulation Teledyne LeCroy

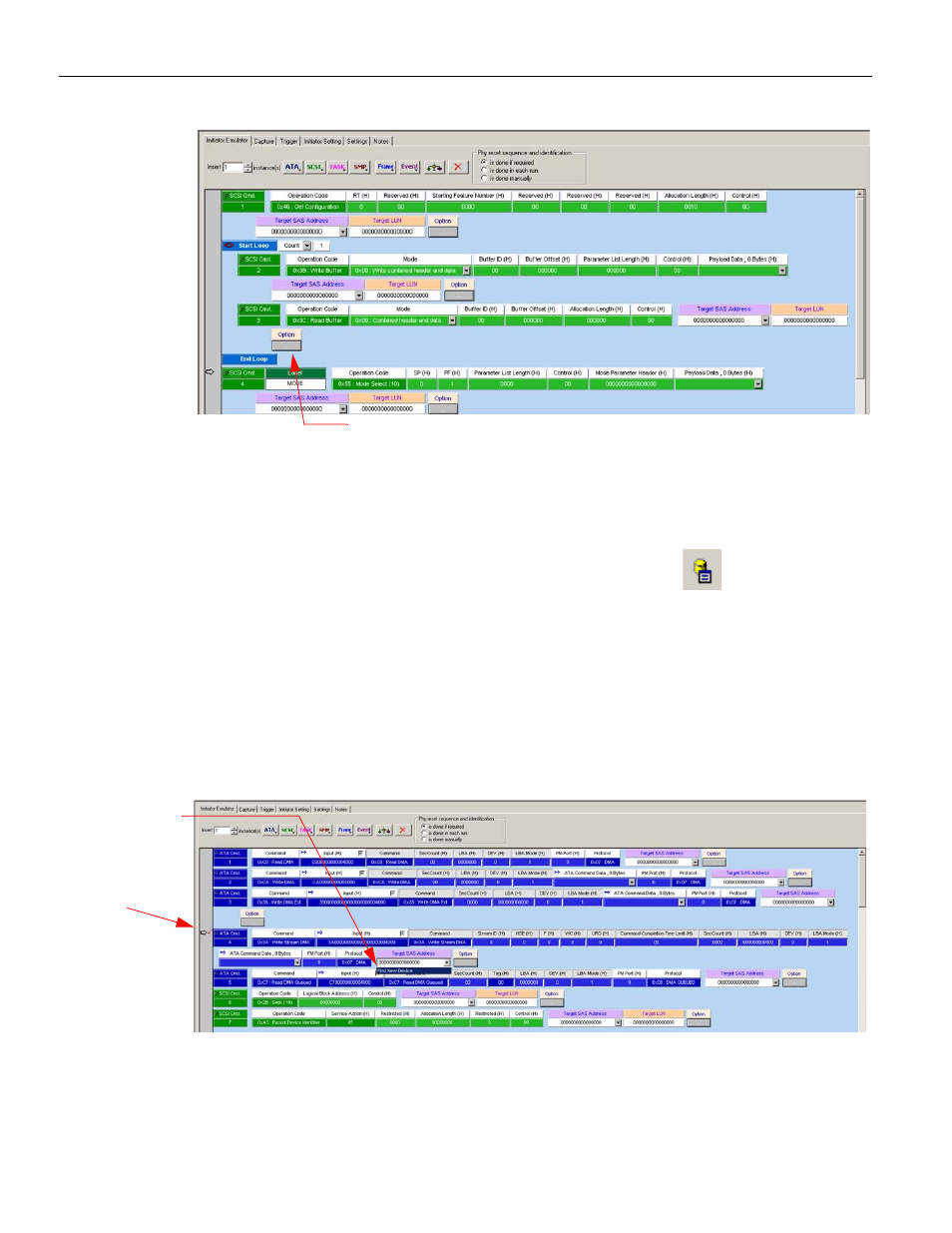

Figure 2.121: SAS: Sample Initiator Emulator Program
Data Blocks
For commands requiring data blocks, click the down arrow of the 
Payload Data drop‐down combo box and choose from a set of pre‐defined data blocks. If
you need a new data block, select Setup > Data Block or click the Data Block icon on
the tool bar to open a data block definition dialog (see “Creating a Data Block” on
page 167 for instructions on creating data blocks).
Exercising Specific Addresses
Since more than one device can be active at any given time, you can specify specific
commands to send to an address. To assign commands to an address:
1. Click the down arrow on a Target SAS Address block in a completed
Initiator Emulator program, then choose Find New Device.
Find New
Cursor
Device
Figure 2.122: SAS: Find SAS Devices Select
Option button
